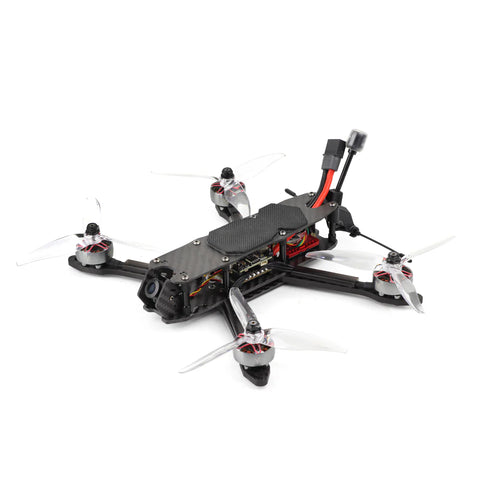

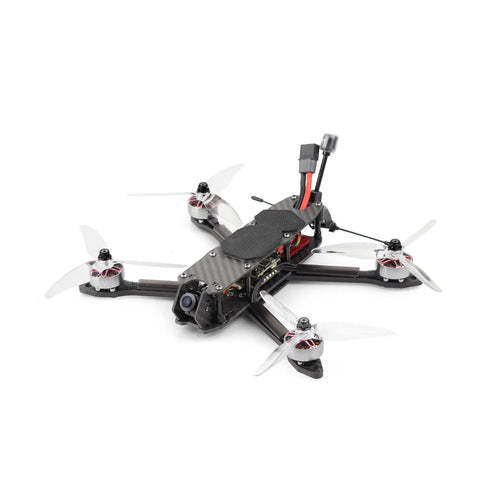

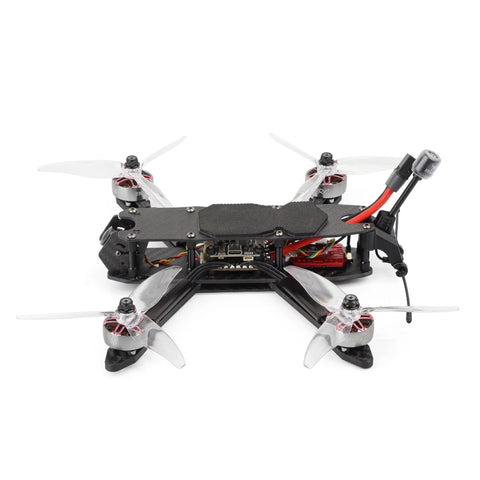

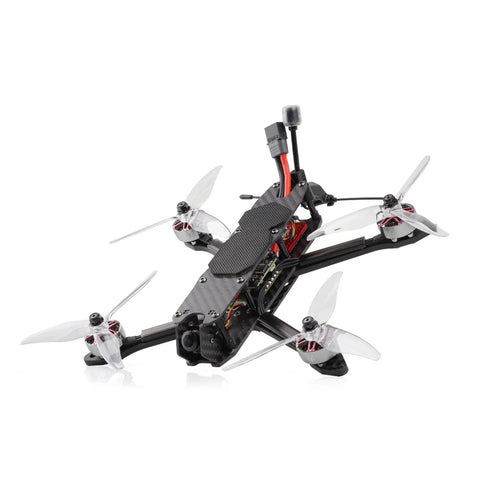

HGLRC MY5 Analog 6S FreeStyle Racing FPV Drone ELRS 2.4G
Selling Points:
- MY5 5-inch Structural Design: Standard 5mm thick arms with wider arms provide greater stability and resistance to bending and torsion. Optimized internal space allows for more flexible layouts and accommodates a wide range of possibilities!
- Unobstructed Vision: The MY5 5-inch propeller-less design offers a clear, unobstructed view for a clear, smooth flight experience.
- Flight Performance: Excellent flight stability allows for precise, straight flight at high-speed cruising, while maintaining agility and maneuverability for easy handling of freestyle maneuvers
- Battery Combination: A 6S 1400mAh lithium battery allows for robust flight, while a 6S 4000mAh 21700 battery pack provides exceptional battery life, perfectly matching the powertrain.
ELRS 2.4G Version
ELRS 2.4GHz Version: Utilizes the ELRS 2.4GHz receiver and features a 1.6W high-power analog VTX. This version offers extremely low remote control signal latency and excellent anti-interference capabilities. It's ideal for complex signal environments like racing, flower flying, and urban environments, ensuring more precise and stable control.
Drone parameters:
- Frame: MY5
- Flight control: SPECTER F405 V4
- MCU: STM32F405
- Gyroscope: ICM42688P
- ESC: HGLRC 60A 6S V1
- Continuous current: 60A
- Peak current: 65A (5s)
- ESC firmware: Q-H-40 Bluejay 0.21.0 48KHz
- VTX: ZEUS 1.6W VTX
- Motor: SPECTER 2306.5 1900kv (6S)
- Propeller: Gemfan51366 MCK V3 3-blade propeller
- Wheelbase: 225mm
- External dimensions: 225mm*160mm
- ELRS 2.4G version weight:378g
Packing List:
- 1x MY5 drone
- 4x Gemfan51366 MCK V3 3-blade propeller
- 4x anti-loosening self-locking M5 aluminum alloy nut
- 2x 20*250mm battery strap
- 1x HGLRC sticker
- 1x manual card
- 4x motor steering cards
