RadioMaster NEXUS Helicopter Flight Controller

  • $102.99
  • Save $27.00
(Ex GST: $93.63)



RadioMaster NEXUS Helicopter Flight Controller

The NEXUS Flybarless (FBL) control unit has been designed from the ground up based on the Rotorflight 2.0 reference design. All aspects of the NEXUS have been planned and tested for optimum performance and compatibility, ensuring the best out-of-the-box Rotorflight experience on the market today.

With its advanced STM32F722 MCU and the TDK ICM-42688-P 6-axis MEMS motion tracking device, which combines a 3-axis gyroscope and a 3-axis accelerometer, the NEXUS flight controller ensures precision control and flight. A large 128MB of onboard flash memory ensures you can log all your flights for fine-tuning and adjustment.

Our Plug'n'Play solder-free RP3-H ExpressLRS receivers feature a locking connector system to ensure a stable connection between the control unit and receiver. DSM and S.BUS ports are also available for use with your selected receiver type. The NEXUS also features multi-function ports for future expansion.

The NEXUS features a CNC machined aluminum case as standard, which looks great, protects the control unit, and dissipates heat for the F722 processor.

After more than 12 months of R&D, the NEXUS has been tested, tuned, and tested again by not only the developers at Rotorflight but also a team of experienced helicopter pilots who took part in our beta testing program. We would like to thank the Rotorflight team and the Beta testing team for making the NEXUS possible!

Features

  • The NEXUS Helicopter flight controller is designed from the ground up specifically for Rotorflight 2.0
  • Equipped with an advanced STM32F722 MCU and TDK 6-axis MEMS motion tracking device, which combines a 3-axis gyroscope and a 3-axis accelerometer
  • Built-in Black Box: A large 128MB of onboard flash memory ensures you can log all your flights for fine-tuning and adjustment
  • Locking connector system compatible with our Plug'n'Play solder-free RP3-H ExpressLRS receivers, You can rest assured that there will be a stable connection between the control unit and the receiver (RP3-H not included)
  • Features multi-function ports (UART) for future expansion
  • The NEXUS flight controller is compact and rugged. The CNC case not only protects the internal components but acts as a heat sink to help keep the electronics cool
  • The NEXUS measures just 41mm x 25mm and is only 13mm high, making it a perfect fit  for any size heli build, including 250/450/500/550/600/700 helicopters

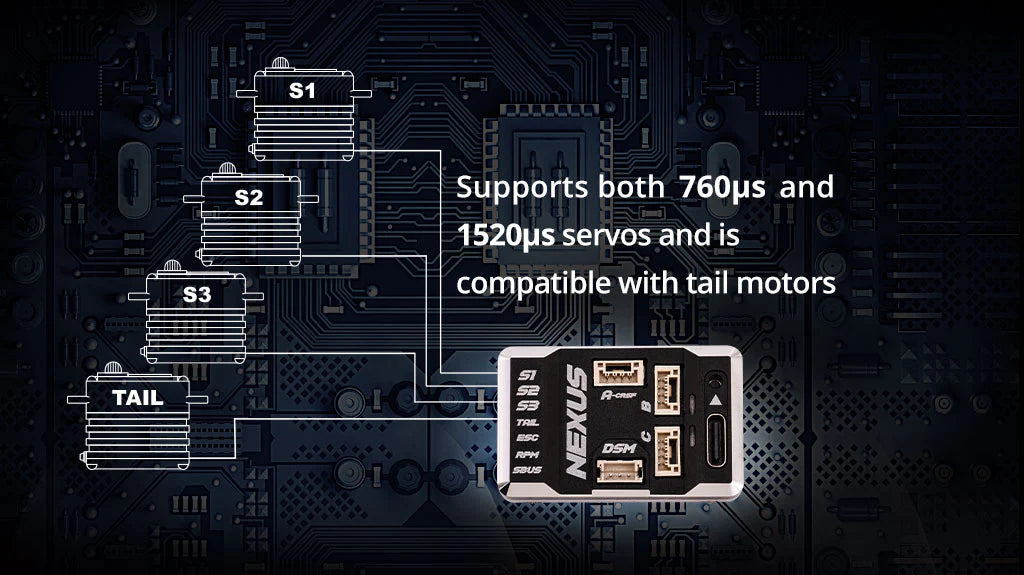

  • The NEXUS flight controller supports a wide range of Tail Motors and Tail ESCs (760μs / 1520μs)
  • A variety of receivers are supported, including CRSF, ELRS, GHOST, S.BUS, SUMD, IBUS, XBUS, EXBUS, PPM, MSP, DSM2, DSMX, and F PORT
  • The device has multiple independent power supplies that minimize noise when reaching 1.8V.  It includes 1.8V for Gyro, 3.3V for the MCU, and 5.0V for the external interface
  • Ultra light-weight and flexible USB-C extender cable is included to help in situations where the USB-C port may not be easy to reach. Made as light as possible because every gram counts and uses flexible silicone wires to prevent vibration transfer to the control unit
  • Rotorflight Rescue function as a standard

Specification

  • Item: NEXUS Heli Flight Controller
  • Firmware: Rotorflight 2.0
  • MCU: STM32F722RET6
  • Gyro (IMU): ICM-42688-P
  • Flash Memory (Black Box. IC): 128MB (W25N01GVZEIG)
  • Barometer: SPL06-001
  • Uart: 6 - DSM[UART1], S.BUS[UART2], A-CRSF[UART4], PORT-B[UART6], PORT-C[UART3]
  • Servo: 4 - S1, S2, S3, TAIL
  • Rpm Sensor: 1 - FROM ESC FREQUENCY SENSOR
  • Receiver Support: CRSF, ELRS, GHOST, S.BUS, SUMD, IBUS, XBUS, EXBUS, PPM, MSP, DSM2, DSMX
  • Voltage Supply(DC): 5 - 12.6V
  • A-B-C Serial Port Power Output: 5V - 2.0A
  • DSM Serial Port Power Output: 3.3V - 0.5A
  • Telemetry: S.BUS, HoTT, S.Port, MSP, EDGETX, ELRS
  • ESC: PWM, Oneshot, Multishot, Dshot
  • Support Tail ESC: 760μs/1520μs Servo
  • Support Tail Motor: Yes
  • Demensions: 41.3 X 25.4 X 13.1mm
  • Weight: 16.8g

Download

Package Includes

  • 1x NEXUS Helicopter Flight Controller
  • 3x JST-GH 4 Wire pigtail cables
  • 1x JST-GH to Servo Plug (dupont 3 pin connector)
  • 1x Ultra light-weight and flexible USB-C extender
  • 1x Type C extension cable
  • 3x 3M double-sided mounting tape
  • 2x Heat shrink tubing
