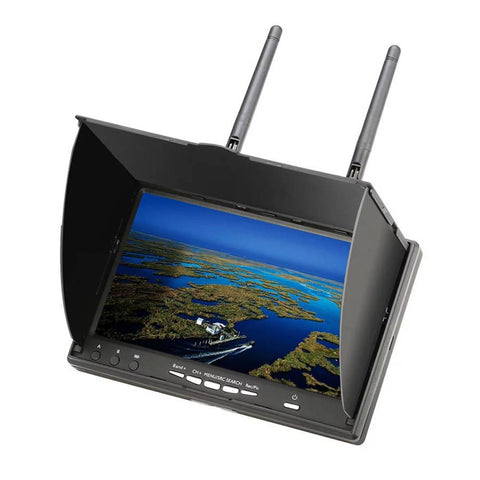

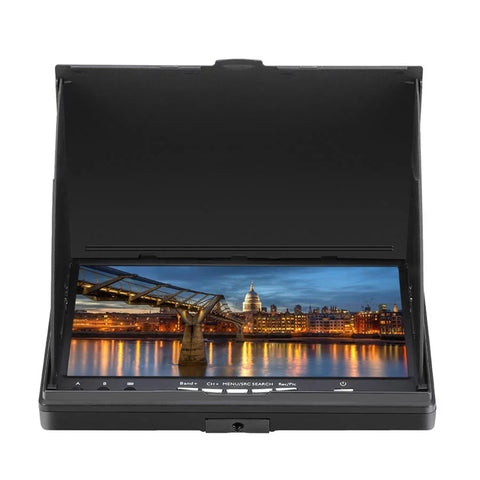

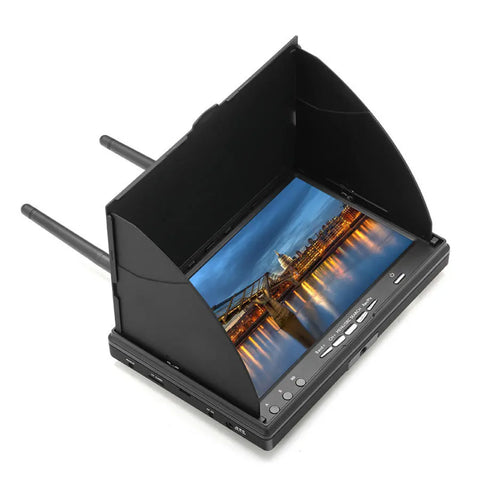

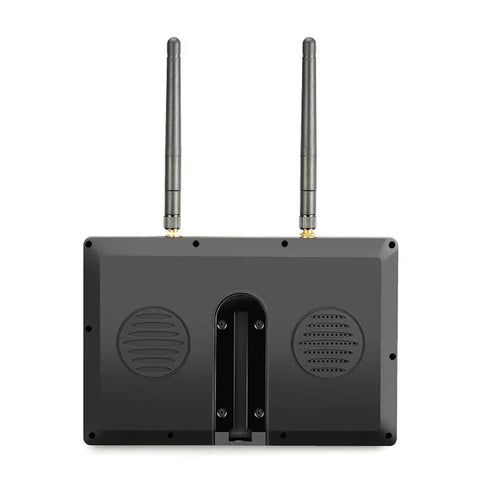

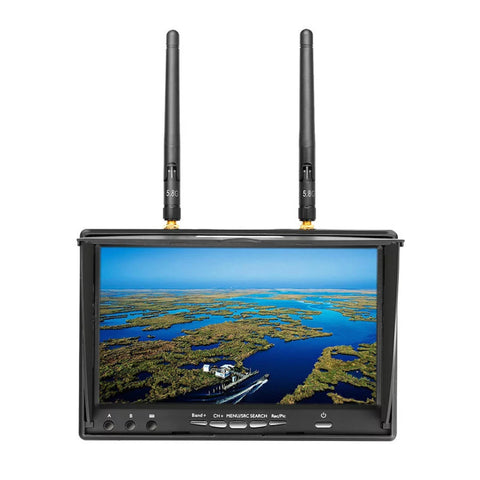

EACHINE LCD5802D FPV Monitor 7 Inch 5.8G 40CH with DVR Build-in Battery

  • $149.99
(Ex GST: $136.35)



EACHINE LCD5802D FPV Monitor 7 Inch 5.8G 40CH with DVR Build-in Battery

Features

  • With DVR function
  • Built-in Dual Receiver for best reception
  • Dual buffered AV outputs
  • Not affect by 2.4GHz R/C Radios
  • AV Receiver with Diversity inputs
  • Small, lightweight, durable
  • 5 Bands and a total of 40 Channels
  • Built-in battery, easy to carry and outdoor use

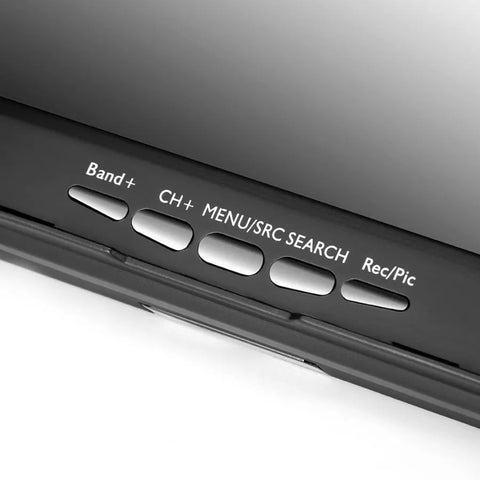

  • A key to automatic signal search, Simple operation
  • Work status OSD display: Always be aware of the device working condition.

Notice: It can’t receive 2 different channels at the same time



Specifications

  • Item Name: LCD5802D Monitor
  • Built-in 5.8Ghz Dual diversity receiver automatically for best reception
  • Built-in 2CH 5.8Ghz AV output and 1CH AV input
  • Built-in high-performance Li-POLYMER Battery: 2000mAH/7.4V
  • Work status OSD display: RSSI indication; Battery indicator; Channel indication
  • A key to automatic signal search
  • Support English menu
  • Format: JPEG, AVI
  • Screen size:7”
  • Screen type:TFT LCD Screen/long life, LED backlight
  • Resolution: 800*480
  • Brightness: 600cd/m2
  • View Angle:140/120degree (Horizontal/Vertical)
  • Size:180mm x 120mm x 25mm(Note:Sunshield height:110mm)
  • Working Voltage: DC 7~16V
  • Power Consumption: max 650 mA @12V
  • Battery charging current : 850mA @12V ( max )
  • Working temperature: -10℃~+ 65 ℃
  • Connectors:RP-SMA female(outer needle)
  • Antennas Connectors:RP-SMA male (inner hole)
  • Support up to 32G, C10 SD Card



Includes

  • 1x LCD5802D Monitor
  • 1x Accessories
  • 1x AU plug for charging
