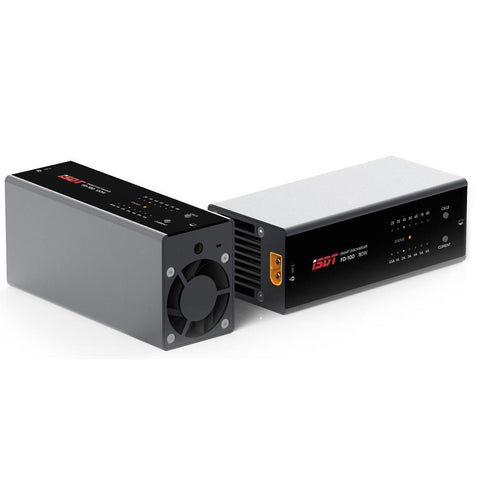

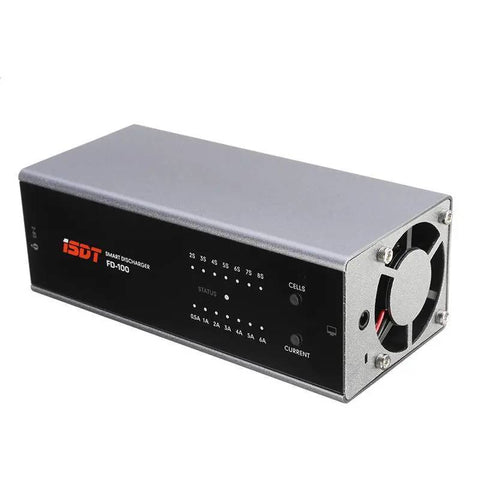

iSDT FD-100 Smart Discharger for 2-8S XT60 Lipo Battery

  • $49.95



iSDT FD-100  Smart Discharger for 2-8S XT60 Lipo Battery

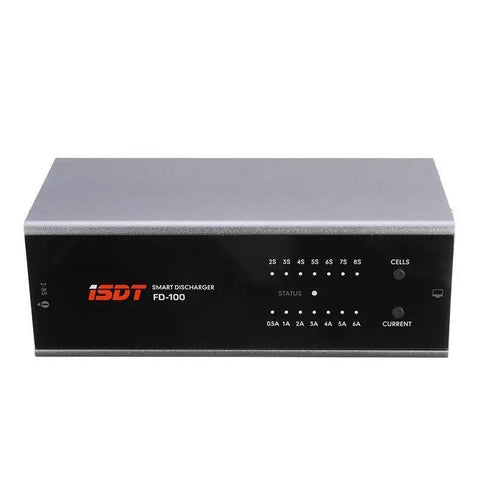

Discharge your LiPo/LiHv/LiFe/LiIon batteries with ease and in safety with the FD100 Smart Discharger. This revolutionary discharger is very simple and easy to use and is packed with safety features so that you can safely discharge these types of batteries. Setting it up is very straightforward with a push button and a series of LED's for cell count (2/3/4/5/6/7/8 cells) and another button and LED's for setting the discharge current (0.5/1/2/3/4/5/6A).

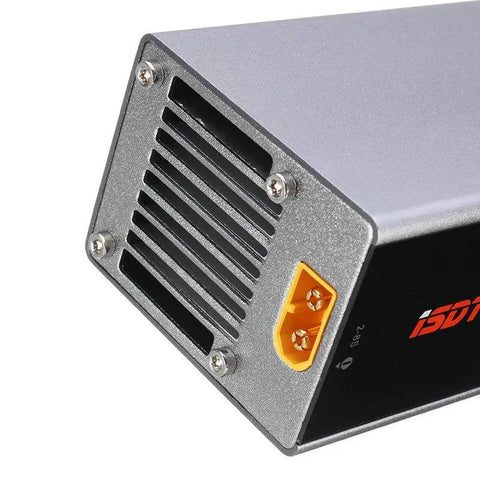

Supports 2~8S (6~35V) batteries and allows up to a discharge rate of 80W. The default discharge voltage is 3.8V per cell but this can be modified with PC software using an SC-Linker to anywhere between 3.3V and 4V per cell. The discharge current can be set for between 0.5 to 6 amps and the unit automatically shuts off via the Smart Fix current control chip when the discharge is complete. The battery discharge port is the very popular XT-60 which makes it compatible with most R/C batteries.

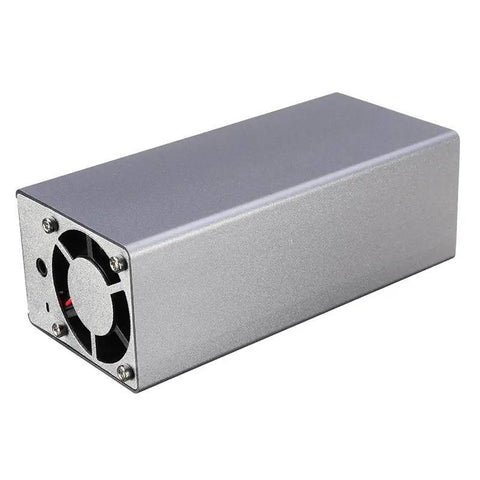

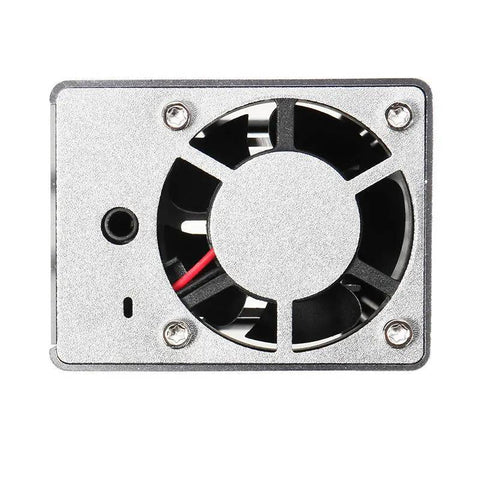

A lot of heat is generated when discharging, the FD100 utilizes an industrial specification high-speed ball raced fan with temperature control to stop overheating during the discharge cycle. To also help with heat dissipation the FD100 has an aluminum passive cooling module and an aluminum case for improving cooling efficiency. This is an extremely well-built unit that is a must for all R/C modelers and users of LiPo/LiHv/LiFe/LiIon batteries to help keep their batteries in tip-top condition.



Features:

  • Easy to use
  • Packed with safety features
  • Automatically cut off after finishing discharging, better protection for your battery.
  • Supports LiPo/LiHv/LiFe/LiIon batteries
  • Supports 2~8S (6~35V)
  • Adjustable discharge current
  • High-speed temperature controlled ball-raced fan
  • Aluminum passive cooling module for improved cooling efficiency
  • Aluminum case



Specifications:

  • Max Discharge Power: 80W
  • Min Input Voltage: 6V
  • Max Input Voltage: 35V
  • No of Cells: 2~8S
  • Battery Types: LiPo/LiHv/LiFe/LiIon
  • Self Power off Protection: Yes
  • Incorrect Voltage Alarm: Yes
  • Incorrect Cell Setting Alarm: Yes
  • Alarm Volume: 80dB
  • Dimensions: 129 x 56 x 43mm
  • Weight: 295g
