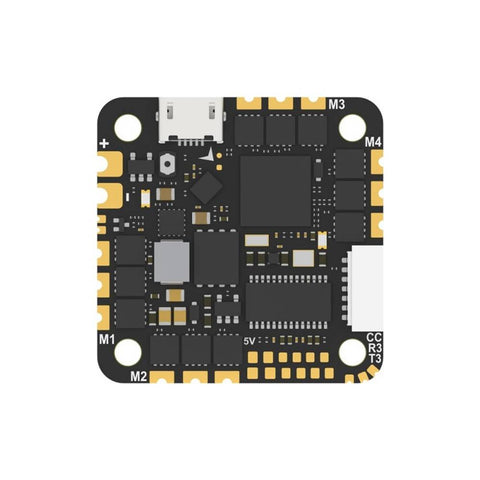

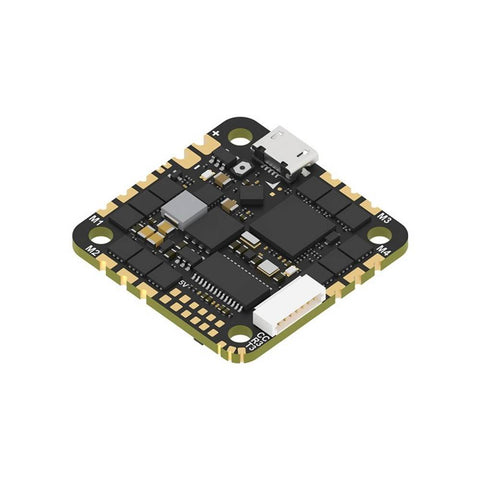

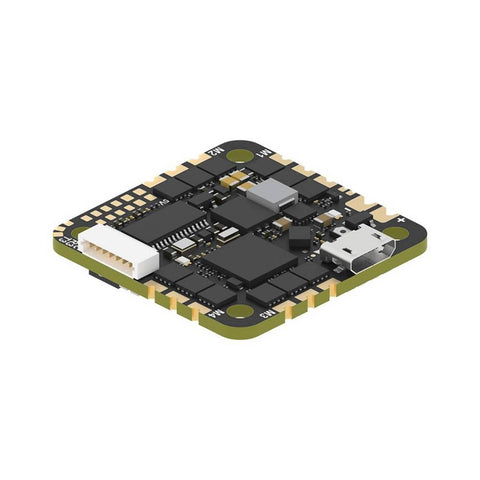

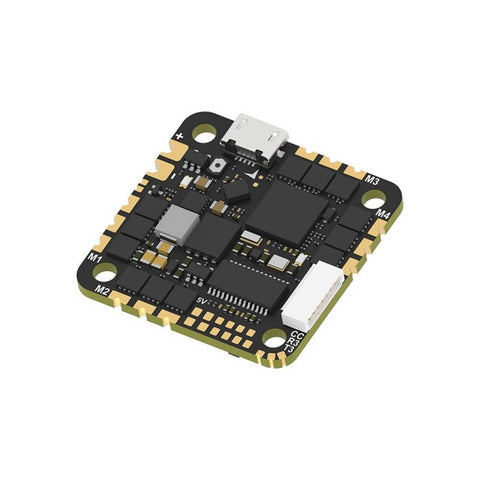

Foxeer Reaper F745 AIO V4 F7 FC + 45A 2-6S BLHeli_S Bluejay 4IN1 ESC
The Foxeer Reaper F745 AIO V4 features an F7 flight controller and a 45A 2-6S BLHeli_S 4-in-1 Bluejay ESC.
Features
- 45A BLHeli_S ESC with Bluejay Firmware
- F745 Flight Controller
- 16M Blackbox
- 5 UARTs
Specifications
- Firmware: Bluejay: G-H-30-96-v0.16/ BLS: G-H-30 16.7
- ESC Programming: Bluejay(default)/BLHeli-S optional
- Continuous /Burst Current: 45A x 4/ 50A x 4
- Mounting Hole: 25.5X25.5mm, Φ3mm/M2
- Fireware: BF: FOXE-FOXEERF745V4_AIO
- Input Voltage: 2~6S Lipo
- DJI/Vista Connector: Supported, 7pin
- Power Supply: 2~6S Lipo
- Working Temperature: -20℃ ~ +55℃
- Storage Temperature: -20℃ ~ +70℃
- Stick Programming: Supported
- Model: FOXEER Reaper AIO V4
- Black Box: 16M Flash Memory
- Working Humidity: 20～95%
- Input signal: Dshot300/600
- Current sensor: Supported
- BEC Output: DC5V/2.5A
- Size: 32.5X32.5mm
- Current scale: 100
- CPU: STM32F745
- USB: Micro USB
- Weight(g): 8.9g
- Telemetry: No
- OSD: BF OSD
- UART: 5 Set
- GYRO : MPU6000
Includes
- 1x Foxeer Reaper F745 AIO V4 - F7 FC + 45A 2-6S BLHeli_S 4-in-1 Bluejay ESC
- 1x Rubycon 35V 470uF Capacitor
- 1x AMASS XT60H-M Connector
- 1x 16AWG Black Wire
- 1x 14AWG Black Wire
- 1x 16AWG Red Wire
- 1x 14AWG Red Wire
- 1x 6-Pin FC Wire
- 1x Hardware Kit
