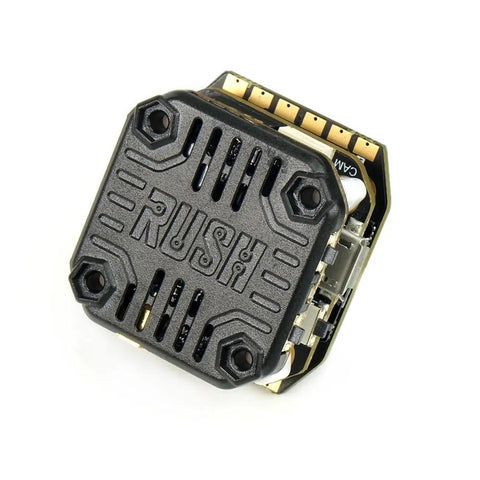

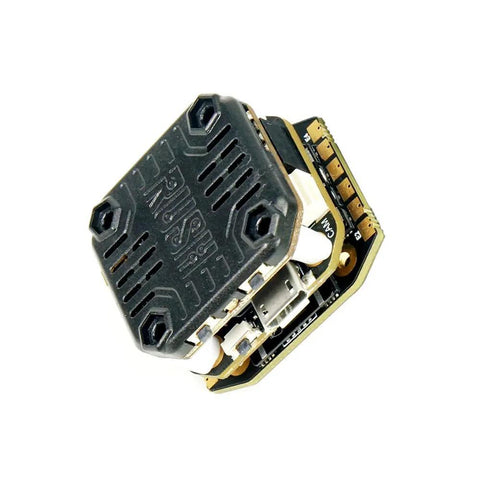

RUSHFPV Stack RUSH CORE F7 Flight Controller + MATRIX 30A 3-5S ESC + Tank Mini VTx 20x20mm

  • $179.59
(Ex GST: $163.26)
With VTX:
With VTX

$179.59
Without VTX

$144.59



RUSHFPV Stack RUSH CORE F7 Flight Controller + MATRIX 30A 3-5S ESC + Tank Mini VTx 20x20mm

Specification:

Brand name: RUSHFPV
Item name:  RUSH CORE 7 Flight Controller & RUSH MATRIX 30A BLHELI32 4IN1 ESC & Tank Mini VTX

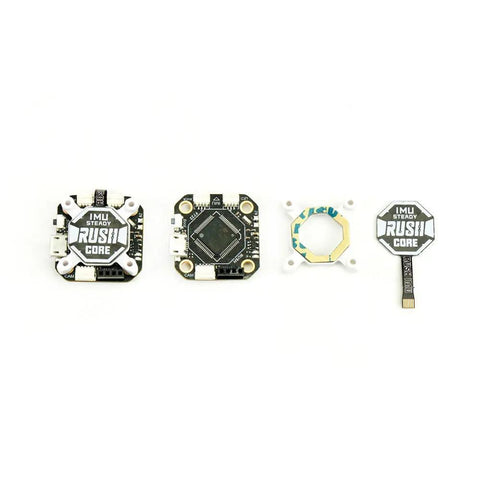

RUSH CORE 7 Flight Controller

  • Firmware: RUSHCORE7 (BETAFLIGHT)
  • FC Programming: Supported
  • Programming via: Betaflight configurator or Others
  • Compatible with (Modes): PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300/600/1200, Proshot1000 and etc.
  • Compatible with (Trabsmitter): PPM, Spektrum1024/2048, SBUS, SYMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL, and etc.
  • OSD: Built-in ,NTSC/PAL Supported
  • MCU: STM32F722RET6 @216MHz
  • BLACKBOX: Built-in ,16MB
  • Voltage Monitoring: Supported
  • Current Monitoring:  Supported
  • External Buzzer: Supported
  • LED Control: Supported
  • BEC: 5V@2A
  • USB Port: MicroUSB
  • Size: 28x29mm
  • Weight: 5.6g

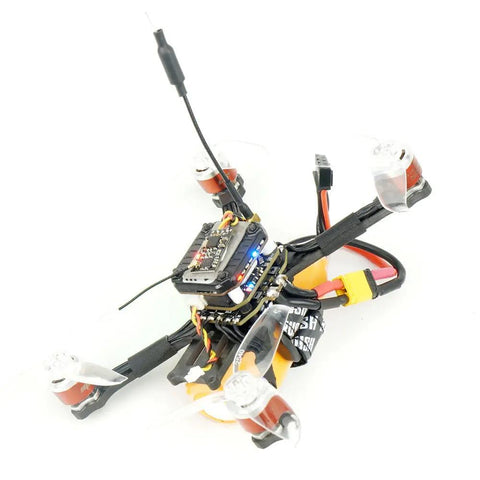

  • Appliications: 110-260mm FPV Drone

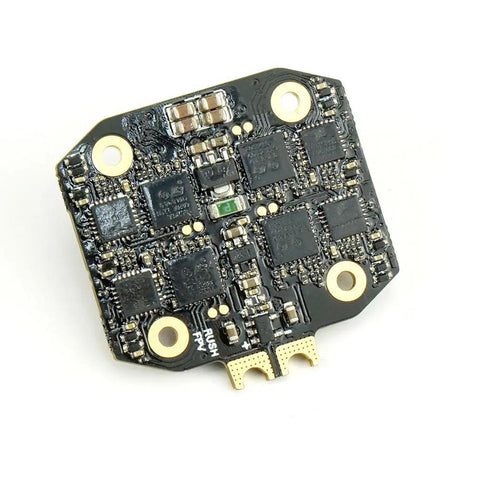

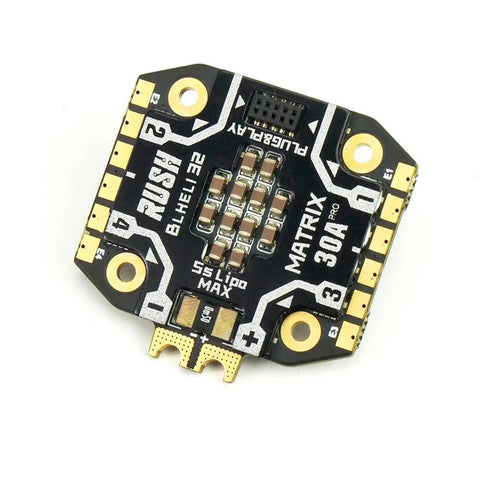

RUSH MATRIX 30A BLHELI32 4IN1 ESC

  • Cont. Current: 30A
  • Peak Current: 40A
  • BEC: N/A
  • LiPo Cells: 3-5S (Recommend)
  • Firmware: RUSH_MATRIX_30A  Firmware
  • Weight: 6.5g
  • Size: 32x31.5x5.4mm
  • Mounting Hole: 20x20mm

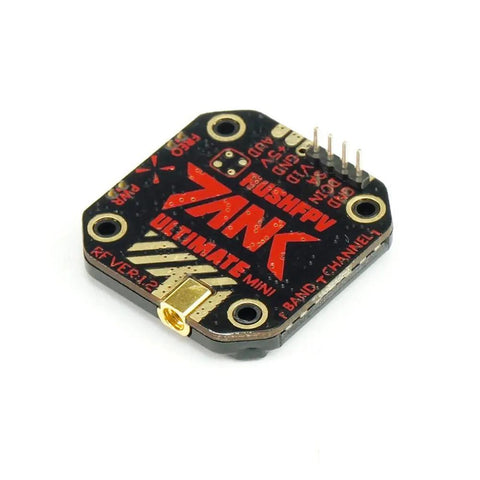

Rush Tank Mini VTX

  • Input Voltage: 7-36V DC
  • Output Voltage: 5V 1A
  • 12V Input Current: 40mA@Pitmode, 95mA@25mW, 185mA@200mW, 250mA@500mW, 380mA@800mW
  • Channels: 48CH RaceBand / LowRace
  • Power: PIT/25/200/500/800 mW
  • Installation Hole: 20*20mm
  • Dimensions: 28*28*3.3 mm
  • Weight: 4.46g(without dust cover), 5.4g(with dust cover)


Features:

  • Compact size,super power
  • Available with external mic


English Manual: Click Here

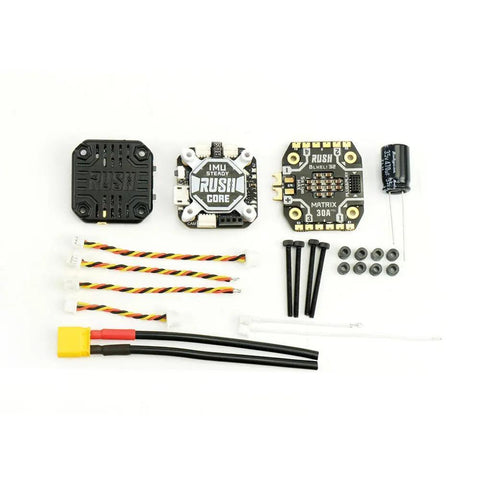

Package Included:

  • 1x RUSH CORE 7 Flight Controller
  • 1x RUSH MATRIX 30A Blheli_32 4 in 1 Brushless ESC
  • 1x Rush Tank Mini VTX
  • 4x M2 Nut
  • 4x M2 x25mm Screw
  • 5x Short Lsolation column
  • 5x Long Lsolation column
  • 2x SH1.0  3Pin Lock connection cable (60mm For receiver and LED strip)
  • 2x SH1.0  4Pin Lock connection cable (30mm/65mm For camera)
  • 1x MT30 Power plug (with cable)
