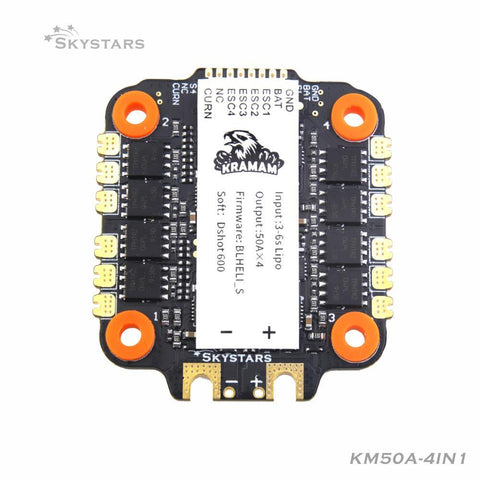

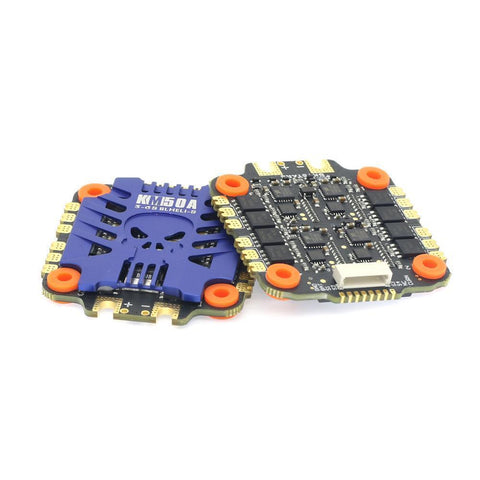

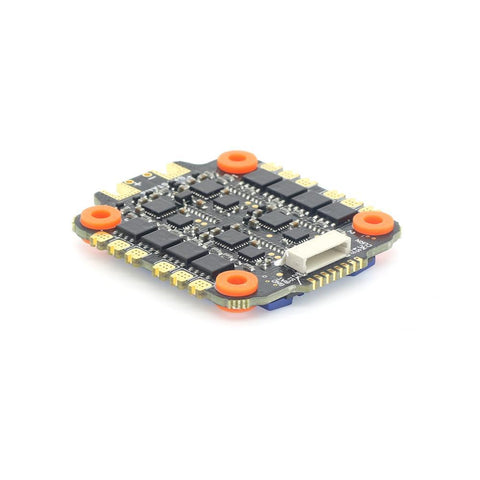

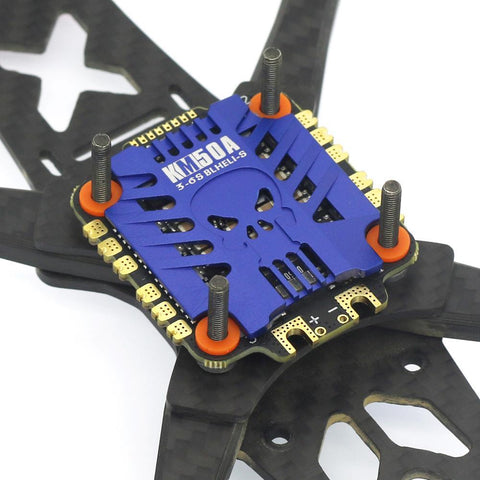

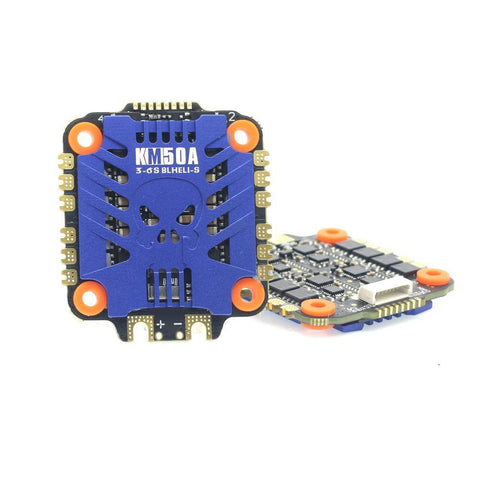

SkyStar KRAMAM 4IN1 50A 3-6S ESC 30.5x30.5mm
Features
1. Excellent over-current capability.
By adopt the best PCB material and PCB production process. Such as application of high TG materials , 3oz copper PCB & 2μm gold deposition process on PCB. Together with 6-layer layout design of board,compared with others common 4 layer,It can withstand bigger current.
2. Extreme stably support 6S LiPo battery
By use of 24 pcs of new Toshiba standard 40V 5x6 Mosfet & imported from USA or Japan electronic materials. Plus advanced lead-free SMT Processing technology.It make ESC can fully support 6s battery and get a better performance.
3. Excellent heat dissipation performance

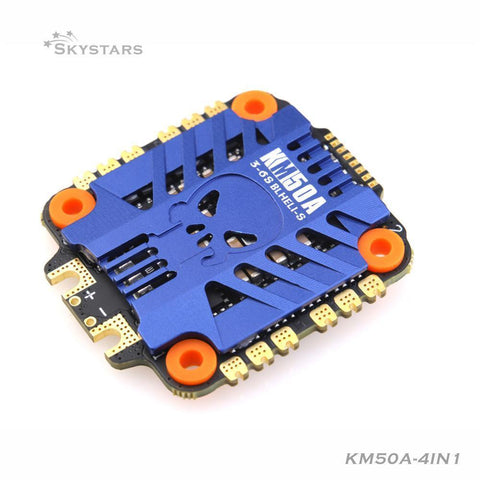

The CNC hollow aluminum alloy shell use, Not only good for heat dissipation, but also get a beautiful appearance.
4. Better control performance
Flashed with Blheli_S 16.72 firmware in factory, support reversed Dshot 300 /600, make ESC have smooth control feel.
SPECIFICATION
- Item name: 50A 4 in 1 ESC
- Continuous current: 50A
- Burst current: 60A≥ 10S
- Working voltage: 3-6S LiPo
- Firmware: BLHeli_S/
- Support : Reversed Dshot 300/600
- Firmware version:16.72(Q_H_25)
- BEC: No
- Product size: 41*46*7.6mm
- Weight: 17g
Package Included:
- 1 x ESC
- 4X Sillcone ring M3X8mm
- 4X Sillicone ring M3X3.5mm
- 1 x XT60 Connected Cable
- 1 x Cable
- 1 x Capacitor 35V 560uF
