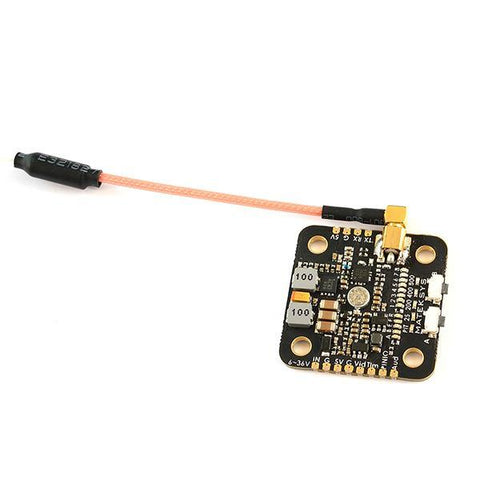

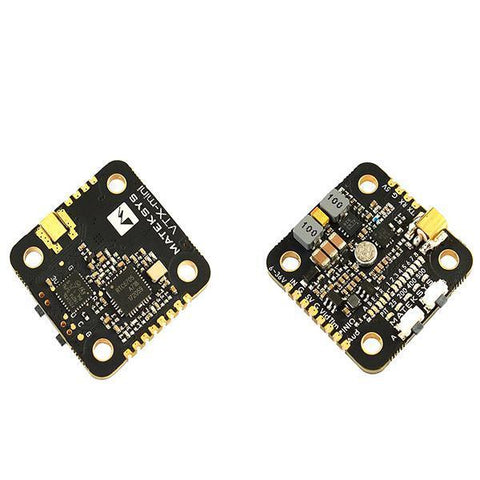

Matek 2-8S Video Transmitter 5.8G VTX-MINI

  • $46.79



Product Description:

Features & Specifications

  • 40CH(A/B/E/F/R Band)
  • Any Freq/band can be disabled or enabled by CLI command
  • Variable Output Power: PIT, 25, 200, 400, 800mW
  • Button control and LED indicators
  • CMS control(Tramp protocol) via FC Uart _Tx
  • Switchable VTX input power via FC PINIO
  • Constant full frequency band power
  • Clean powerup and frequency switching
  • Built-in microphone
  • Upgradeable firmware
  • Convertible 20 to 30mm mounting
  • Input voltage: 6~36V(2~8S LiPo)
  • 5V Output: 1A for Camera or FC
  • Power Consumption: 3.5W@ 800mW
  • Video Input Impedance: 75 Ohm
  • Audio Subcarrier Frequency: 6.5 MHz
  • RF Connector: MMCX
  • Video Format: NTSC/PAL
  • Weight: 4.5g (VTX-mini only, w/o antanna)

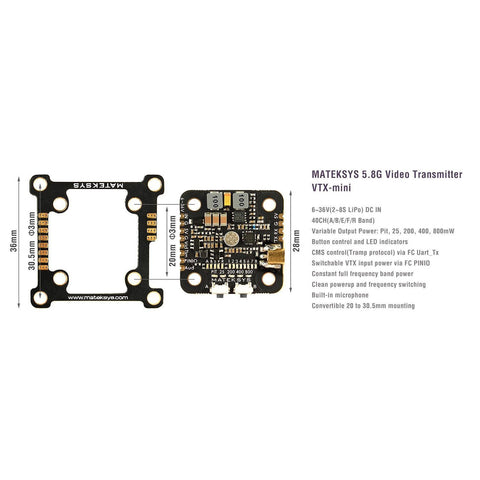

  • Size1: 28*28*4mm w/20mm_Φ3mm mounting
  • Size2: 36*36*5mm w/30.5mm_Φ3mm mounting

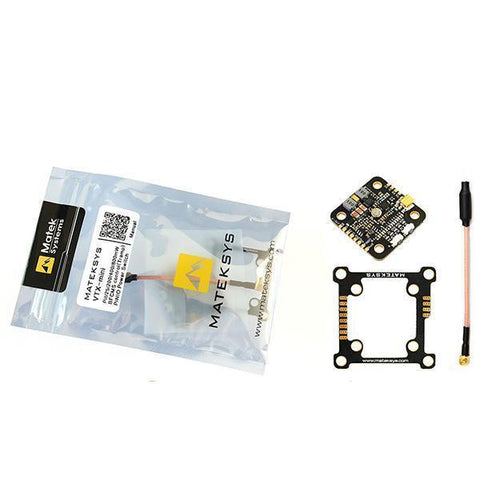

Includes

  • 1x 5.8G Video transmitter VTX-mini
  • 1x MMCX 5.8G whip antenna, 8cm
  • 1x 20mm to 30.5mm conversion plate
