150mm 2.4G 2.5 dbi Receiver Antenna (1 pcs)

  • $1.49

Delivery Estimate: Orders before 3pm dispatch from Sydney on same business day



Like us? Please hit the Like button below:)


Product Description:

150mm 2.4G 2.5 dbi Antenna for FUTABA FRSKYJR FASST Receiver

Note:

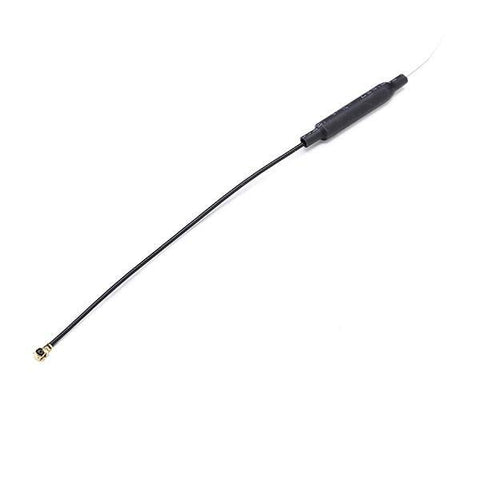

The connector of these antennas will NOT fit latest frsky receiver like x4r-sb which are using IPEX micro connector. See photo below.



Electrical Specifications


Frequency Range(MHz):2400-2500
Gain(dBi):>2.5
V.S.W.R. : <1.5

Polarization:Vertical
Non-Circularity(dB):±0.5
Impedance(Ω):50
Lightning Protection: Direct Ground
Maximum Input Power(W):50

Mechanical Specifications


Connector Type:IPX
Radiating Element Material:Copper
Radome Material:EVA
Radome Color: Gray
Dimension (mm):150mm(total length)

Wight(Kg): 0.009/12
Operating Temperature(℃):-40~+70
Reposition Temperature(℃):-55~+80

Package included:

1pcs x 150mm 2.4G 2.5 dbi Antenna for FUTABA FRSKYJR FASST Receiver
