AIRWOOD 4 IN 1 Drone Professional Kit

  • $229.95
(Ex GST: $209.05)



AIRWOOD 4 IN 1 Drone Professional Kit

The Airwood 4in1 Drone Professional Kit includes the camera and programming module.

With this kit you can mount 4 different drones and see how their design affects the flight. (Includes the same control for the 4 drones.) This kit is indicated for teaching thanks to its modularity and STEAM possibilities. You also have the Cubee model loose. Enjoy it by piloting it or programming it!

Despite its apparent simplicity, Airwood is equipped with advanced stable flight technologies, real-time transmission and even 720P HD camera (optional). Airwood stays perfectly without drift, maintaining both the position and altitude at the exact point you order . You can set distance and height limits to keep your flights within a safe range. If you order him to fly beyond the established limits, the drone will not depart once he reaches them. And if the signal is lost with the aircraft it is able to return to its initial starting point.

Ecological, modular and easy to assemble: Build your own DIY drone!

  • Learn the basics of drone operation
  • Wind resistance, air pressure, wind tunnels, RC signals, safe take-off and landing, how the environment affects the flight and much more.
  • The 4-in-1 kit contains 184 pieces.
  • Each drone is assembled like a 3D puzzle. The different pieces of carpentry fit into a seamless streamlined design and no need for nails or glue.
  • Airwood is equipped with a remote control and two batteries, one for the drone and one for the controller.

Lightweight and Portable

The wheelbase of the aircraft is about 12cm, and the average weight of the aircraft is less than 80g with battery, which is only the weight of the mobile phone. You can carry it with you wherever you go.

Same Drone – Different Models

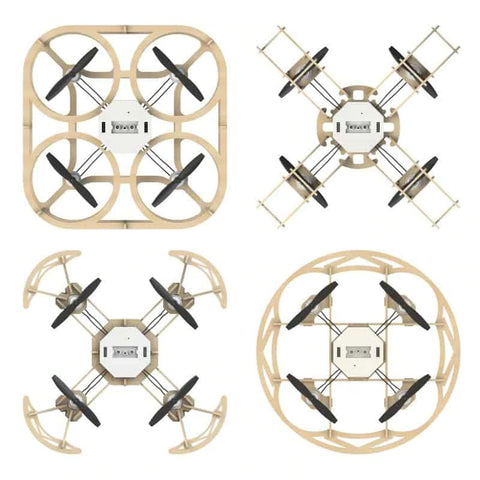

4 chassis in the same kit for infinite configurations: With this kit you can build 4 different drones with an extremely modular and flexible configuration.

The modular technology allows us to adapt any different model wood frame with the same electronic module. With just one Airwood 4in1 Drone Professional Kit, you can have countless models.

Tool-less Assembly

High-quality eucalyptus laminates with high precision laser cutting allow many parts to be tightly connected, and all parts are assembled without any tools.

Modular Technology

The patented electronic module mounting structure enables simple installation and removal of electronic modules without the need for tools and with damaging the board. The installation is simple and even younger children can operate independently.

Multiple Flight Modes

Whether you are accustomed to using the LEFT hand throttle or the Right hand throttle operation mode, you can easily change it by dialling the code on the back of the remote control. At the same time, we also provide a beginner mode that limits the flight height and prevents danger or damage caused by flying too high.

It has 9 flight modes: Depending on whether you are going to use it in initiation, competition or programming mode, Airwood adapts its maximum speed, movement sensitivity, orientation, indoor or outdoor flight … etc.

Airwood – Advanced Microprocessor

Unlike the simple integrated chip that toys usually have, the Airwood DIY Drone use a high-performance “Cortex-M3” core professional microprocessor, imported directly from the original factory, acting as the brain of the aircraft, providing us with faster computing speed and higher operational efficiency and more powerful features.

Adaptive AI Algorithm

The flight control system uses the adaptive AI algorithm. Whether it is replacing our standard wood frame or the user’s own DIY wood frame, the right flight control system can automatically detect the overall performance of the drone and optimize the parameters through the AI algorithm to suit current structure. This makes flight control as stable and comfortable as ever.

Barometer Altitude Holding and Visual Positioning

The visual positioning sensor intelligently analyses the position information by continuously collecting the ground pattern, and combines the barometer to stably control the height, so the aircraft can stably hover in the air without touching the remote controller. Flight operations are simpler and aerial photography is no longer blurred.

Airwood – HD Camera

720P high-dfinition camera, just plug in directly when using, you can realize WIFI real-time image transmission through the mobile phone APP. It can be easily removed when not in use for better flight performance.

Graphic Programming for STEM Education

Programming is like building blocks. Drag various command modules to the programming area, download them to the drone, and use the remote control to turn them on, then the drone can perform automatically.

Not only will you enjoy flying your Airwood a lot, it also serves to learn programming. The processor is based on Arduino , so it can be programmed with MIXLY, Scrath for Arduino and MDesigner, so you can also have fun learning to program flight instructions through its block programming interface.

FEATURES AND SPECIFICATIONS

  • CUBEE is the most stable design. It has all-round protection that is very safe to fly. Recommended for a beginner.
  • Dimensions: 185*185*35mm
  • Wheel Base 137mm
  • Weight: 79g (with battery)
  • Battery: 800mAh
  • Charging time: 40mins
  • Flight time: 6~8mins
  • Flight distance: 50m
  • RC Frequency: 2.402 – 2.480 GHz
  • RC Battery: 250mAh
  • RC TR Power: (1mW) 0dBm
  • Camera: CMOS 3MP
  • Camera Resolution: 1280*720
  • Programming platform Arduino
  • Programming Flash: 32KB, 2KB by boot loader
  • Programming Timer Speed: 16MHz
  • Product Manual
  • Softwares



Specifications

Programming Module

The programming module can be add to drone directly to let the drone support graphic programming.

  • Module size : 48.5x48.5x10 mm (LxWxH)
  • FLASH : 2KB, 2KB by boot loader

Camera Module

The camera module can be add to drone directly to achieve a WiFi real-time camera and mobile phone control.

  • Module size : 48.5x48.5x10 mm (LxWxH)
  • Still Image Size : 1280*720

Flight Control Module

2.4G frequency, headless mode, aerial shooting image, air pressure fixed, camera module and programming module can be disassembled, Arduino graphical programming, WIFI image transmission, low battery alarm

  • Flight controller module : size 48.5x48.5x10 mm (LxWxH)

Motor Module

  • Each motor and propeller can generate 25~40 grams of tension
  • Power : 12 watts per motor

Battery Module

  • 3.7V 850mAH
  • Dimensions: 90mmx25mmx50mm(LxWxH)

Remote Control Module

  • Operating Frequency : 2.400 – 2.4835 GHz
  • Max Transmission Distance (unobstructed, free of interference) : 80m
  • Transmission Power (EIRP) : 33mW ( 6.6)dBm
  • Battery : 300mAh

Fast Charger

  • Input : DC : 5V
  • Output : 4.2 V ‚ 1 A
  • Rated Power : 5W

65mm Propeller

  • diameter : 65mm
  • pitch : 15mm

Wooden Frame

  • Features : Wooden frame, Vulnerable wooden frame fittings
  • Instructions : Push out wooden frame accessories by hand



Airwood 4in1 Drone Professional Kit includes:

  • Cubee, Ninjia, Taiji, Sophon frame,
  • Camera module and programming module
  • Indicated for children over 14 years accompanied by an adult
  • Assembly and connections without tools (10 min.)
  • Stable flight: It remains suspended in the air
  • 9 flight modes
  • Return in one click
  • 2.4G remote connection
  • Graphic programming with MIXLY, Scratch for Arduino and MDesigner
