iFlight Beast H7 AIO Flight Controller + 55A 2-6S ESC MPU6000 25.5x25.5mm

  • $139.89


Like us? Please hit the Like button below:)


Product Description:

iFlight Beast H7 AIO Flight Controller + 55A 2-6S ESC MPU6000 25.5x25.5mm

Top Features:

  • Vista digital system Plug-and-Play (VBat passthrough)
  • MCU: BGA-STM32H743 , 480MHz
  • OSD: AT7456E
  • Gyro: MPU6000
  • Blackbox: 16Mb Onboard Flash
  • BEC output: 5V 2.5A
  • Barometer: DPS310


Safety reminder:

The DJI plug&play port has no voltage regulator (BEC) and is passing through VBAT. The Caddx Vista goes up to 26.4V (6S), the DJI Air Unit goes up to 17.6V (4S). Make sure not to plug-in your DJI Air Unit directly when you're flying 6S, because this would fry it!

Small motor 4S builds should usually need an additional capacitor of at least 16V/220uF, for 6S go up to 35V or even 50V. Bigger motors have a bigger current draw, higher voltage spikes and more serious back EMF (motor braking, works like a generator). Make sure to add big enough or even bigger low ESR capacitors on the AIO battery pad or on your battery lead the more aggressive motors you fly. There's a choice of capacitors in the package, but it's never a bad idea to make sure to protect your board. Smaller boards have less capacitance which has to be covered with external capacitors, there's no way around.

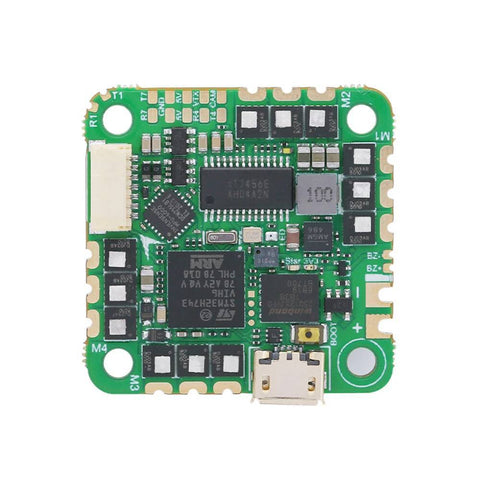

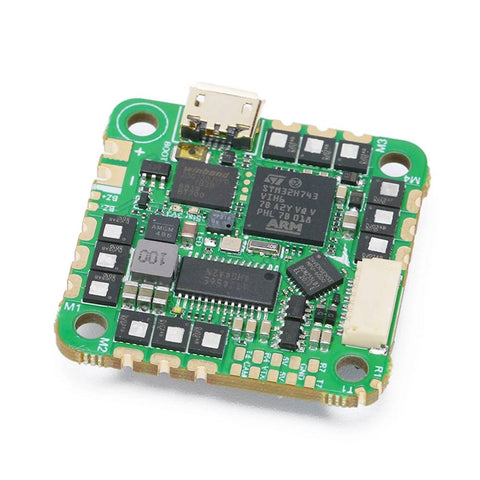

FC // Beast H7 AIO

Specification:

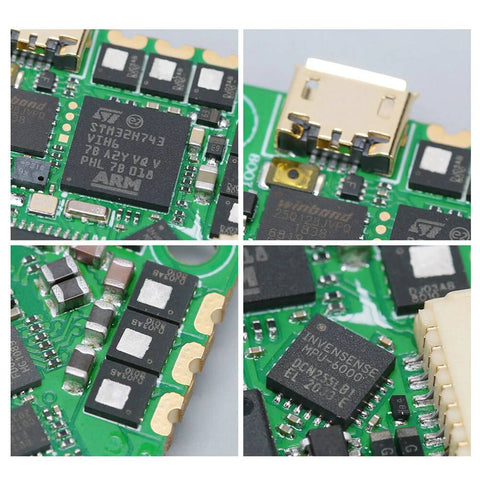

  • MCU: BGA-STM32H743
  • Gyro: MPU6000
  • Blackbox: 16Mb Onboard Flash
  • BEC output: 5V 2.5A
  • Barometer: DPS310
  • Micro-USB
  • OSD: AT7456E
  • Uart:5 (UART1、UART2、UART3、UART4、UART7)
  • FC Firmware:IFLIGHT_H743_AIO

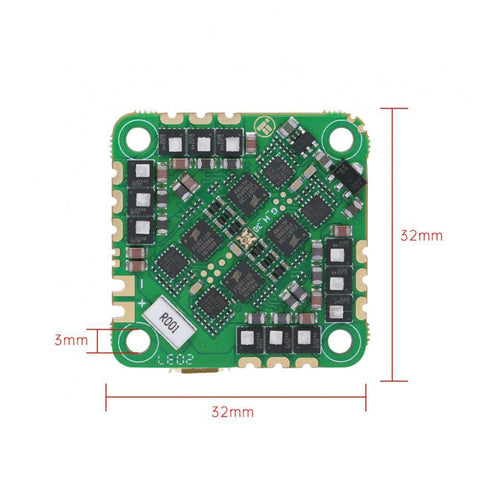

  • Mounting pattern: 25.5*25.5mm φ3mm
  • Dimensions: 32.5*32.5mm

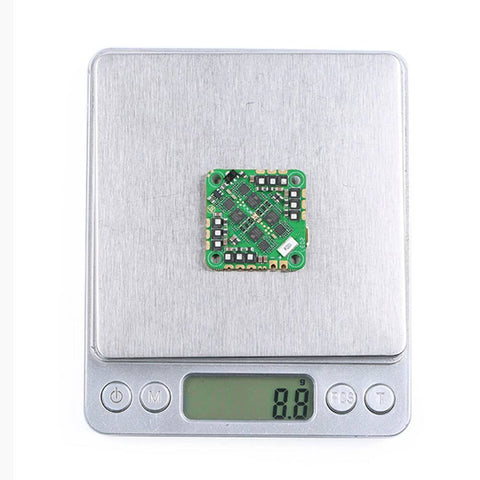

  • Weight: 8.8g

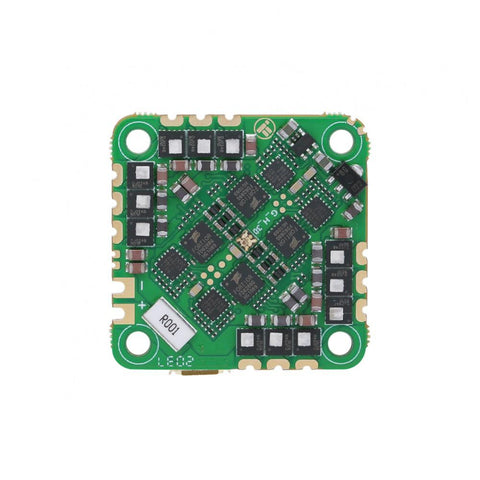

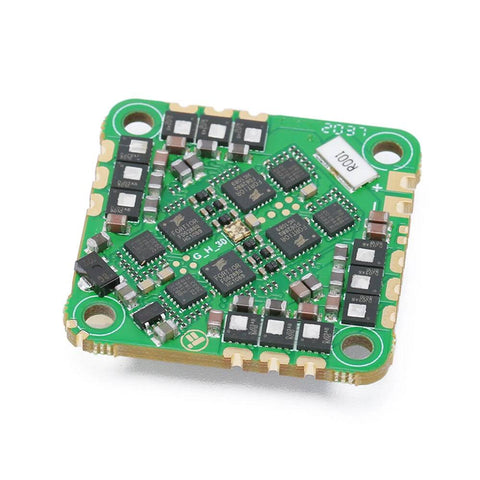

ESC // 55A 2-6S

Specification:

  • Uarts: 5
  • Current Sensor: Yes
  • Input: 2-6S LIPO
  • Current scale: 200
  • Constant: 55A / Burst: 60A
  • BLHeli: BLHeli-S
  • Telemetry: no
  • ESC Firmware: BlheliS G-H-30
  • Mounting pattern: 25.5*25.5mm/Φ3mm
  • Dimensions: 32.5*32.5mm



Package Includes:

  • Beast H7 AIO × 1
  • Capacitor 470uF/16V x 1
  • Capacitor 470uF/35V x 1
  • XT60 12AWG cable 100mm x 1
  • XT30U 18AWG cable 70mm x 1
  • 14AWG Silicone Cable Red 100mm x 1
  • 14AWG Silicone Cable Black 100mm x 1
  • 1.0-7P cable 50mm-28mm x 1
  • 1.0-7P cable 50mm x 1
  • M2 silicon grommets x 4
  • M2*12mm screws x 8
  • M2 Transparent Nylon Nut x 8
  • 0.8mm black Heat shrink tube 10mm x 8
