BetaFPV Cetus C02 Camera Micro FPV Replacement Part

  • $29.95


Like us? Please hit the Like button below:)


Product Description:

BetaFPV Cetus C02 Camera Micro FPV Replacement Part

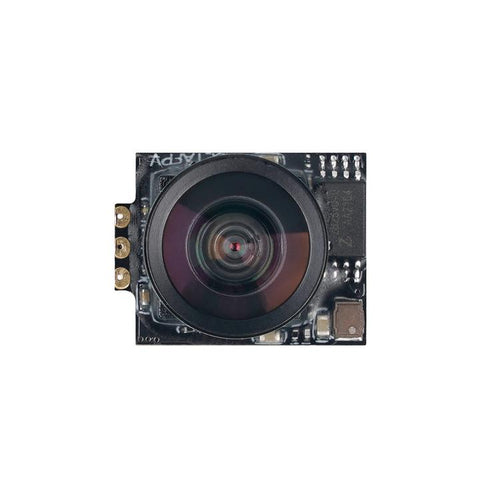

C02 Micro Camera is the lightweight camera customized for those weight sensitive micro whoop drones, like Cetus, Meteor65Beta65SBeta85 pro2HX100SE. Adapted a 1/4'' CMOS sensor, 2.1mm lens for  1200TVL resolution and excellent latency while minimizing the weight to 1.4g. Packed with the micro canopy, protect your camera well in a hard crash.

Plug-N-Play

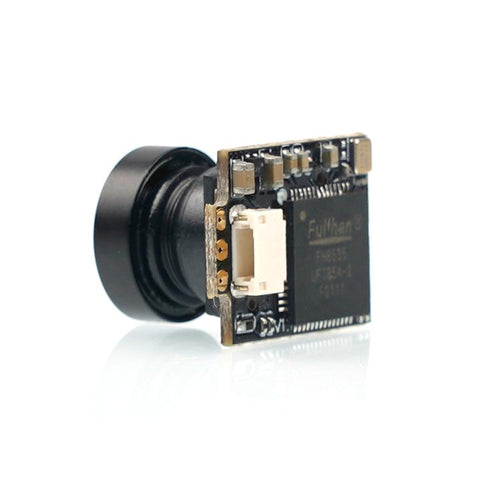

C02 camera features a JST-0.8 connector, special design in plug-and-play, makes it easy to install without soldering. Suitable for BeeBrain flight controllers.

Bullet Points

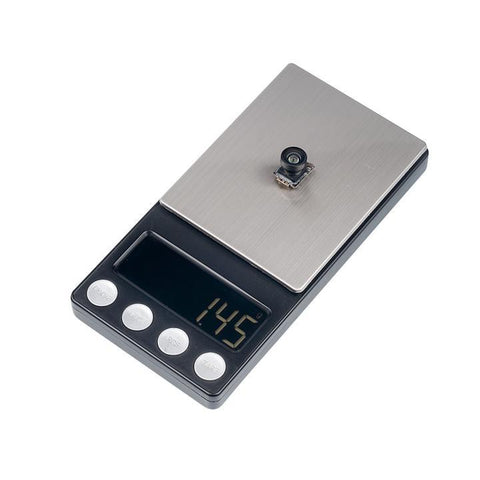

  • Miniature, and lightweight design, weight at only 1.4g. Best match with 5.8G A01 VTX on micro whoop drone.
  • 1200TVL resolution and 1/4" CMOS sensor ensure a high-quality and clear image
  • Global WDR camera, 16:9 aspect ratio, shoot clear dynamic image even in low light condition
  • 2.1mm lens, FOV 160° beyond the wide-angle for recording more wide and beautiful scenes

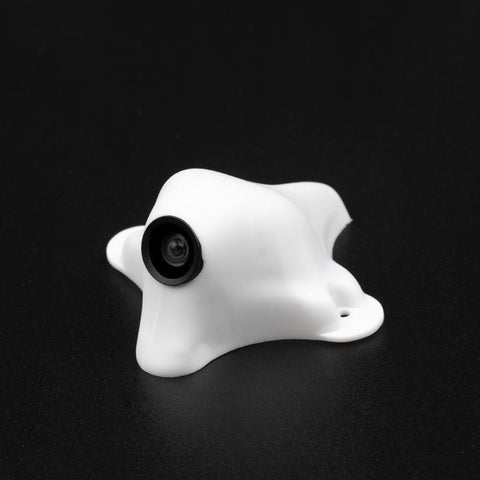

  • The package comes with an injection molding canopy, more durable, which is the best combo with C02 camera

Specification

  • Item: C02 Camera
  • Image Sensor: 1/4" CMOS Sensor
  • Horizontal: 1200TVL with Global WDR
  • Signal System: NTSC
  • Lens : 2.1mm(M8) FOV 160°
  • S/N Ratio: >50db
  • Electronic Shutter Speed: Auto
  • Auto Gain Control (AGC): Auto
  • Min. Illumination: 0.01Lux@1.2F
  • D-WDR: Auto
  • Day/Night: Color
  • Power: DC 3-5.5V
  • Current: 110mA@5V / 120mA@3.3V
  • Housing Material: ABS
  • Dimension: 13*11mm
  • Net weight: 1.4g

Package

  • 1x C02 FPV Micro Camera
  • 1x Injection Molded Canopy
  • 1x 1/4'' Camera Mounting hardware
