BetaFPV F4 AIO Brushless Flight Controller 1S ESC SPI FrSky D8 D16 FCC 25mW VTX

  • $69.99
  • Save $10.00


Like us? Please hit the Like button below:)


Product Description:

BetaFPV F4 AIO Brushless Flight Controller 1S ESC SPI FrSky D8 D16 FCC 25mW VTX

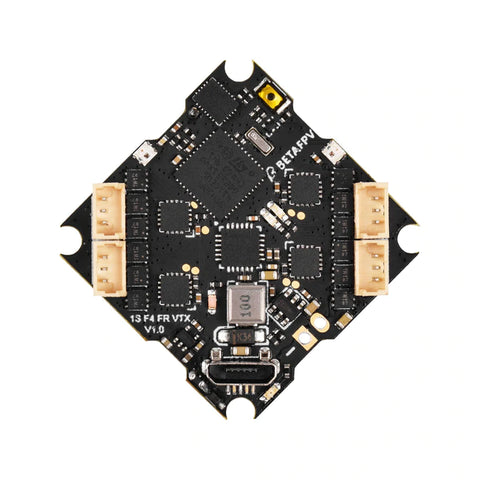

F4 1S AIO FC(SPI Rx) integrates 4 components as F411 FC, 5A ESC, 25mW VTX and SPI receiver. It is ultralight only 3.92g and still maintains an amazing performance capability, which makes it become your best choice to run with a 1S brushless quad!

Bullet Point

  • Integrated with a 25mW VTX, this AIO board(Frsky/Futaba Rx) is ultralight only 3.92g, which can extremely save the weight of building a drone, perfectly suitable for the 1S weight-sensitive drone such as Meteor65 HD and HX100 SE.

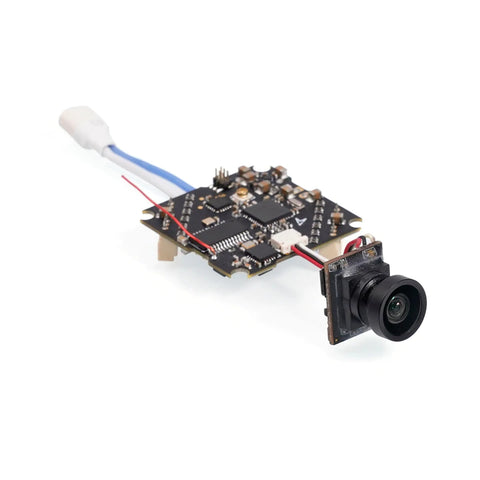

  • This AIO board also reserves a Plug & Play port for the C01 Camera, C01 Pro Camera, and BETAFPV Nano HD Camera, no soldering work needed, super convenient for installation.
  • Specially added with 2 RGB LED indicators, this board brings the drone an incredible light effect while pilots flying on the night.
  • This board can handle 5A continuous current(6A burst), supports the 1S lipo battery, brings the drone a stronger flight performance.
  • Come with a BT2.0 connector, it solves the problem of voltage sag, the discharge can be more efficient, which brings this board a better performance on function for power and responsiveness.



Specification of F4 1S AIO FC (SPI Rx)

  • Item: F4 1S AIO FC (Frsky)

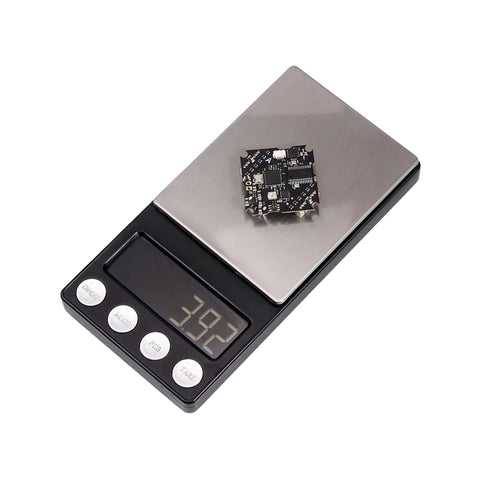

  • Weight: 3.92g(without antenna and BT2.0 connector)
  • VTX Power: 25mW
  • CPU: STM32F411CEU6 (100MHZ )
  • Six-Axis: MPU6000 (SPI connection)
  • Firmware version: betaflight_4.2.0_STM32F411
  • Receiver: Support Frsky Receiver
  • Motor Pin Connecter: 1.25mm Header Pins
  • Mounting hole size: 29mm x 29mm / suitable for almost all kinds of whoop frame



Specification of ESC

  • Built-in ESC with 5A continuous and peak 6A current
  • Input voltage: 1S Lipo
  • ESC firmware: O_H_5_REV16_8.HEX
  • OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
  • Signal support: D-shot150, D- shot300, D-shot600, Oneshot125, Multishot, PWM
  • 4 Indicators: Receiver indicator (Blue)/Flight control status indicator (Green)/Flight control power indicator (Red)/VTX indicator (Pink)

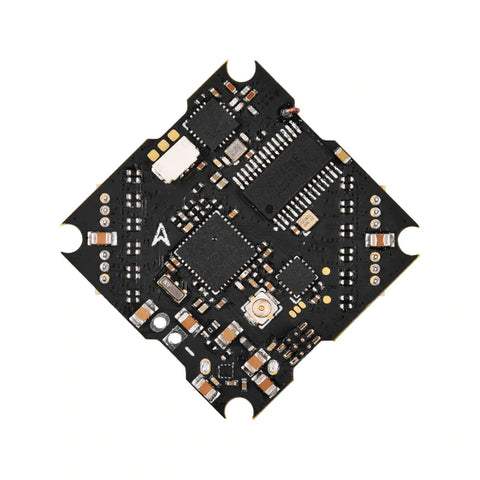

Diagram for F4 1S AIO FC (SPI Rx)

SPI Receiver CC2500

Come with the build-in SPI Receiver CC2500, F4 1S AIO FC (SPI Rx) can compatible with Frsky D8 and D16 protocols. The default Frksy protocol is Frsky D16, if pilots buy the wrong receiver of the SPI Frsky version or upgrade the wrong firmware accidentally, which needs to switch the protocol to Frsky D8, please upgrade the Betaflight Firmware according to this tutorial.

Configuration

Protocol

FRSKY_D

Frsky D8

FRSKY_X

Frsky D16 FCC

FRSKY_X_LBT

Frsky D16 LBT

SFHSS

Futaba S-FHSS



Package

  • 1x F4 1S AIO Brushless Flight Controller
  • 4x M1.2x4mm Screws
  • 4x M1.4x5mm Screws
  • 4x Anti-vibration Rubber dampers
