BetaFPV LiteRadio 2 SE Radio Controller Gamepad Transmitter

  • $75.90


Like us? Please hit the Like button below:)


Product Description:

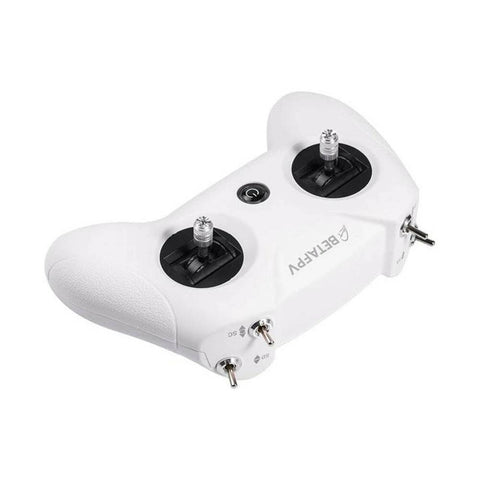

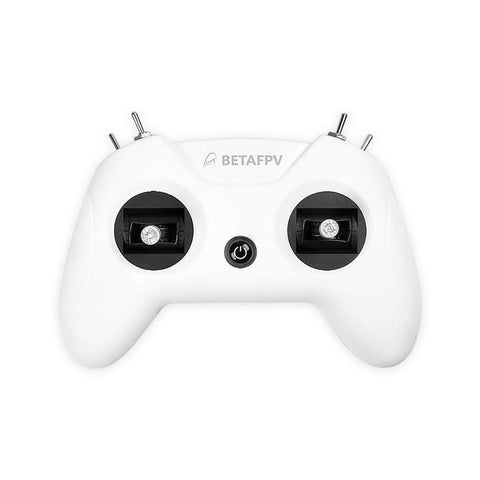

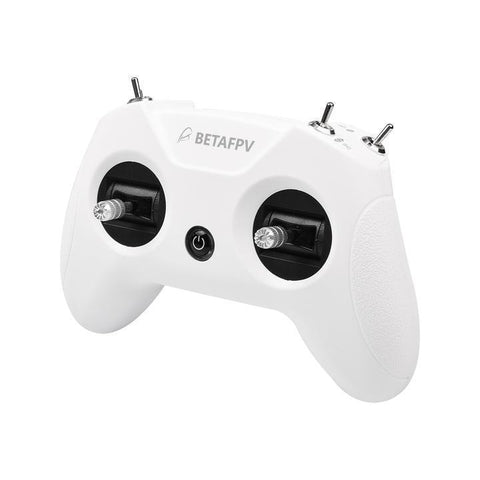

BetaFPV LiteRadio 2 SE Radio Controller Gamepad Transmitter

LiteRadio 2 SE Radio Transmitter is the upgraded version based on LiteRadio 2 and comes with huge improvements.

  • Built-in 1000 mAh 1S battery, LiteRadio 2 SE increases the endurance to 8 hours.
  • Updates with BETAFPV self-developed LiteRadio System. Pilots can directly operate the Joystick Calibration and Upgrade Firmware on the radio transmitter.
  • Supports the Frsky / Futaba / Bayang protocol, pilots can easily change the modes via the radio transmitter.
  • Comes with 100mW transmitting power, LiteRadio 2 SE brings a wider operating range.



Bullet Point

  • LiteRadio 2 SE upgrades with BETAFPV self-developed Customed LiteRadio System. Pilots can directly perform the Joystick Calibration and Firmware Upgrading through the radio transmitter, more convenient for the beginner racer to operate.
  • Equipped with a built-in 1000 mAh 1S battery, LiteRadio 2 SE can use up to 8 hours, bringing an excellent endurance performance. Besides, without connecting the external battery, it is more convenient to use.
  • Compared with the LiteRadio 2, LiteRadio 2 SE has a larger transmitting power, and the operating range is wider.
  • LiteRadio 2 SE has a built-in charging module, supports USB charging. Meanwhile, it designs a Low-Power warning to indicate a low battery. While it needs to be re-charged, the blue light will flash slowly.
  • Adopted the rubber coat, LiteRadio 2 SE is ergonomic and has the shape of a gaming controller. It's comfortable to hold, and the anti-slip texture on the handles allows for a solid grip.
  • This radio transmitter acts as a USB Joystick when connected to a personal computer. So you could use it to play FPV simulators like EREADRONE.



Specification

  • Item: LiteRadio 2 SE
  • Color: White
  • Frequency Range: 2.4G (2403MHz-2447MHz)
  • 2.4G System: NRF24L01 or CC2500
  • Channel: 8
  • System: Bayang Protocol / Futaba S-FHSS / D16 Frsky FCC/LBT Protocol
  • Power: ≤100mw
  • Model Type: Multi-rotor
  • Support USB Charging / Firmware Upgrade
  • Support BETAFPV Simulator Connected / Customed LiteRadio System / Joystick Calibration
  • LED Light: Green-Power On / Red-Warning / Blue-Normal
  • Battery: Built-in 1000mAh 1S Battery
  • Charging Connector: TypeC



Comparison of LiteRadio 2 SE and LiteRadio 2

 LiteRadio 2 SE LiteRadio 2
System Customized LiteRadio System Opensource OPENTX
Power Built-in 1000mAh 1S Battery Removable 350mAh 2S Battery
RF Power 100mW 80mW
Working Time 8 Hours 3 Hours
Protocols Frsky D16 FCC/D16 LBT/D8/Futaba S-FHSS, Bayang Frsky D16 FCC/D16 LBT/D8, Bayang
Joystick Calibration Yes No(Could with OpenTX Companion)
Firmware Update Yes No

How to switch the protocol

To change protocols (Frsky FCC D16, Frsky D16 LBT, Frsky D8, or Futaba S-FHSS), you have to power it off first, then press and hold the bind button while you power it back on. Then it will flash the code to indicate which protocol it is on.
LED Status Protocol Version
Flash Once Frsky D16 FCC
Flash Twice  Frsky D16 LBT
Flash Three Times  Frsky D8
Flash Four Times Futaba S-FHSS

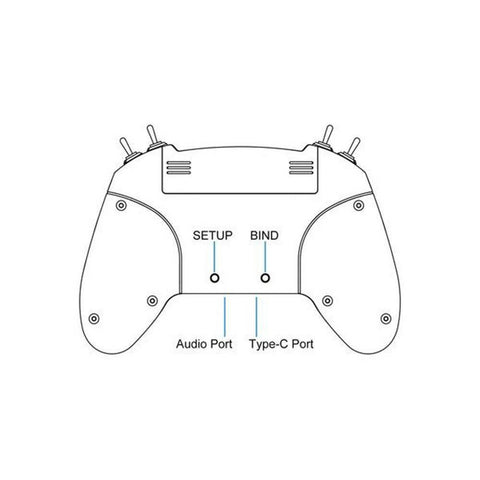

Diagram of LiteRadio 2 SE



Package

  • 1x LiteRadio 2 SE Radio Transmitter
  • 1x User Manual



If you having any issue with the Transimtter please try latest firmware here: How To Flash Firmware For LiteRadio 2 SE
