BetaFPV VR02 FPV Goggles 4.3 Inch 800x480 Auto Channel Search

  • $99.95
  • Save $10.00


Like us? Please hit the Like button below:)


Product Description:

BetaFPV VR02 FPV Goggles 4.3 Inch 800x480 Auto Channel Search

Retail Pack

  • 1x VR02 Goggles
  • 1x Adjustable Headband
  • 1x Packaging Box



    BETAFPV VR02 FPV Goggles - A First-Person-View Goggle that is specially designed for FPV starters. Built-in antenna and only 3 operation buttons, the VR02 goggle is extremely easy to operate. With 4.3 inches 800*480px high brightness LCD, you can experience a bright world without warped and blurred images.



    Bullet Point

    • BETAFPV VR02 FPV Goggles is specially designed for FPV starters. With the built-in antenna and 3 compact operation buttons, the VR02 Goggles maintains a 300g lightweight and easier to operate.
    • With 4.3 inches 800*480px HD high brightness LCD, which is specially tuned for FPV racing or Model airplanes.
    • Upgraded the Frequency sweep function and the fast frequency auto-search function(Only 2.5 seconds fast frequency search), pilots can easily find a stronger Band to get a better flight experience.
    • Adopt an ergonomic design with a foam sponge faceplate and a three-sided adjustable headband, this FPV Goggles fits your face and head perfectly.
    • Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand.
    • Come with an advanced auto-searching function and show you the working frequency on screen.



    Specification

    BODY

    • Dimension: 126x143x86.3mm
    • Weight: 300g with 2hr 2000mAh battery
    • Belt: Three-Ways adjustable belt



    SCREEN

    • screen size: 4.3 inch
    • Screen resolution: 800*480 px
    • Screen brightness: 300cd/m2
    • View Angle: 55°



    JACK

    • Type-C Charging
    • Voltage: 3.7V, the device operating current of 500mA@3.7V
    • Current: 500mA



    BATTERY

    • Built-in 3.7V/2000mAh high-capacity polymer battery, LED turn on while charging. When charging is completed, the LED will turn off.
    • Each full charge revive is around 2 hours working time



    Small and Portable

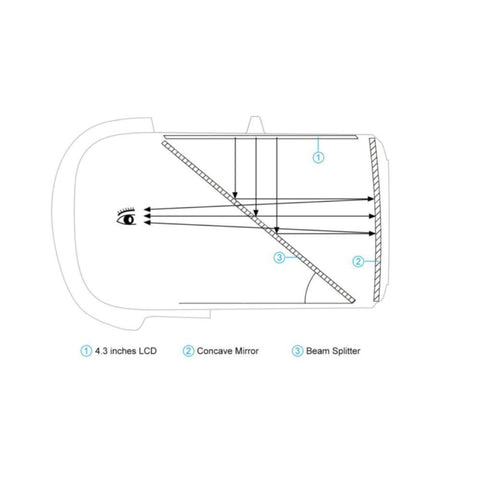

    Comes with BETAFPV patented design, VR02 FPV Goggles cleverly uses optical reflection, bringing a more practical structure. It effectively reduces the goggles' volume, making the goggles become extremely small and portable, greatly enhances the flight experience.

    Band and Channel Selection

      CH
    CH 1
    (MHZ)
    CH 2
    (MHZ)
    CH 3
    (MHZ)
    CH 4
    (MHZ)
    CH 5
    (MHZ)
    CH 6
    (MHZ)
    CH 7
    (MHZ)
    CH 8
    (MHZ)
    GROUP
    A
    5865
    5845
    5825
    5805
    5785
    5765
    5745
    5725
    B
    5733
    5752
    5771
    5790
    5809
    5828
    5847
    5866
    E
    5705
    5685
    5665
    5645
    5885
    5905
    5925
    5945
    F
    5740
    5760
    5780
    5800
    5820
    5840
    5860
    5880
    R
    5658
    5695
    5732
    5769
    5806
    5843
    5880
    5917
    L 5362 5399 5436 5473 5510 5547 5584 5621
    • BETAFPV VR02 FPV Goggles has a frequency sweep function and a fast frequency auto-search function, it will help pilots find a stronger Band to get a better flight experience.
    • The frequency sweep function can display the occupancy status of each channel in the current space so that pilots can fly with a better Band and enhance the flight experience.



    How to use the frequency sweep function?

    After powering on, short press the "S" button to enter the sweeping interface, as shown below. Pilots can change the Band via the "Band+" and "Ch+" button.

    Band Status Indicator

    Green 0<RSSI<20, not occupied
    Yellow 20<RSSI<70, there is a drone occupying the Band far away, or there is interference
    Red 70<RSSI<99, occupied
    White current Band (highest RSSI in the sweep result)



    How to use the fast frequency search function?

    After powering on, press and hold the "S" button for 1 second to start the frequency auto-search. The frequency auto-search process is 2.5 seconds. After the frequency auto-search is over, it will beep twice and jump to the corresponding Band of the drone.

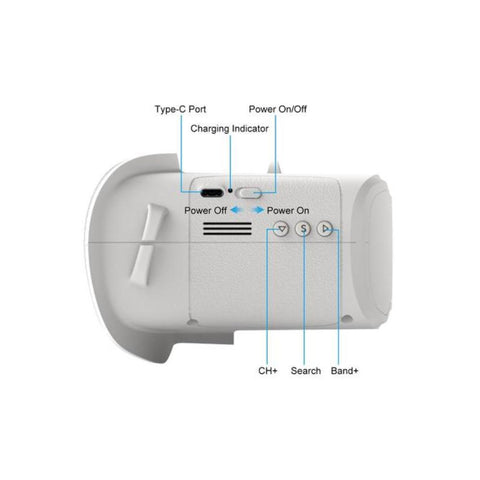

    Operation Instructions

    KEY

    • Power On/Off
    Default mode, Flick to the left to turn off, and to the right to turn on, the screen will light up after a normal boot.
    • Band+
    Default mode, Short press for Band+ option A, B, E, F, R, L cycle selection.
    • Search

    Default mode, After powering on, short press the "S" button to enter the sweeping interface. Press and hold the "S" button for 1 second to start the frequency auto-search.

    • CH+
    Default mode, Short press for CH 1~8 cycles.

    Package

    • 1 * BETAFPV VR02 FPV Goggles
    • 1 * Adjustable Headband
