Caddx Nebula Micro Digital and Analog FPV Camera

  • $63.00


Like us? Please hit the Like button below:)


Product Description:

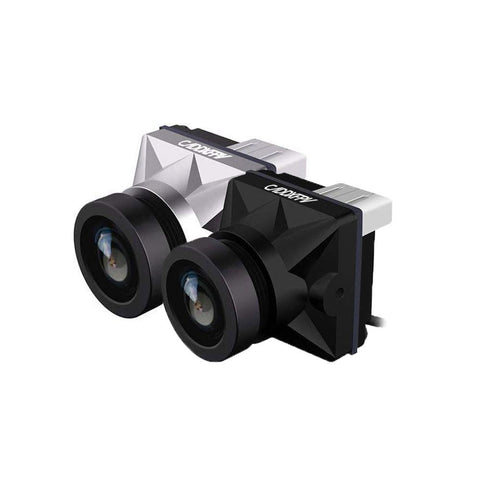

The Caddx Nebula Micro Digital FPV Camera is here! This micro-size camera measures 19x19mm and only weighs 5.8g, which is less than the DJI Digital FPV Camera and is especially design for racing. It features a WDR 1000 TVL image quality, 1/3" CMOS sensor, NTSC/PAL(Switchable), 720/60fps resolution, full metal casing, Analog & Digital, 4ms low latency, and many other cool features! Comes in two colors: silver and black.

The Caddx Micro is compatible with the Caddx Vista and the DJI Air Unit Module.

Features

  • Only weights 5.8g
  • 4ms ultra-low latency
  • 720p/60fps resolution
  • Full metal casing, more light and durable

Specifications

Without Coaxial cable

  • Model: Nebula Micro
  • Image Sensor: 1/3inch CMOS sensor
  • Lens: 2.1 mm, f/2.1
  • FOV: FOV: 150°(D); 122°(H); 93°(V)
  • Operating temperatures: -20°C ~ +60°C
  • Wide Power Input: DC 5-36V
  • Dimensions : 19*19*20mm
  • Weight: 5.8g (N.W.)
  • Mirror/Flip: Available
  • Shutter: Rolling shutter
  • OSD: Support

Analog Specifications

  • Resolution : 1000TVL
  • TV System: NTSC & PAL (switchable )
  • Image: 16:9 & 4:3 (switchable)
  • Latency: 4ms
  • WDR: Super WDR

Digital Specifications

  • Resolution : 720p/60fps
  • Latency: >32ms
  • Image: 16:9
