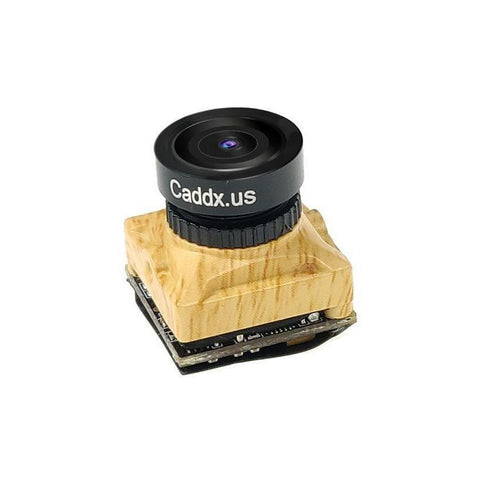

CADDX Turbo SDR2 Plus (Race) Micro FPV Camera 1200TVL StarLight

  • $46.95


Like us? Please hit the Like button below:)


Product Description:

CADDX Turbo SDR2 Plus (Race) Micro FPV Camera 1200TVL StarLight

Updated SDR2 comes in two variants, Race and Freestyle, with specific benefits to each. This Freestyle camera focuses more on image quality featuring 1200TVL resolution versus 1000TVL on the Race camera. The Freestyle also sports a 1/2.8″ SONY Exmor-R  sensor versus a SONY  sensor on the race version.

Choose from three different colors to suit your build, Hotfire, Camouflage, and Wood.

Model Turbo micro SDR2 plus (Race version)
Image Sensor 1/2.8"  SONY Exmor-R  sensor
Horizontal Resolution 1200TVL
TV System NTSC & PAL  (changeable)
IMAGE 16:9 & 4:3   (changeable)
WDR Super WDR (Double Scan)
Min. Illumination 0.0001Lux@F1.8  (Starlight)
Lens  Turbo Eye Lens
Synchronization Internal
Electronic Shutter PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio >60dB (AGC OFF)
Video Output CVBS
Camera OSD ADVANCE MENU
DNR 3-DNR
LANGUAGE ENG/FRANCE/RUS/SPA/PU/KOREA/CHN/JAPAN
Day/Night Auto/Color/B&W/EXT
Dimensions 19mm*19mm*19mm
Wide Power Input DC 5-40V
Work Temperature -20℃~+60℃
Work Humidity 20%~80%
Weight 5.5g (N.W.)/ 40.5g (G.W.)



Package Included:

  • 1x Camera
  • 1x Aluminum bracket
  • 1x 5D-OSD menu board
  • 1x 4pin FPV silicone cable A (extend into a 2pin joint for OSD board and a 3pin joint for FPV)
  • 1x FPV silicone cable B (2-pin port for both side)
  • 1x Internal hexagonal wrench
  • 1x Screws set
