DarwinFPV 3" Micro Darwin79 Long Range FPV Analog Drone PNP

  • $259.95
  • Save $20.00


Like us? Please hit the Like button below:)


Product Description:

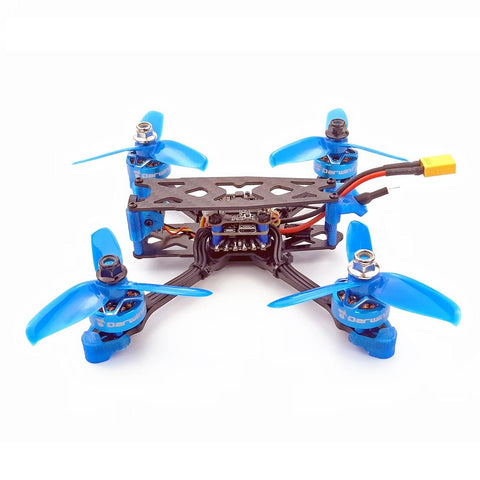

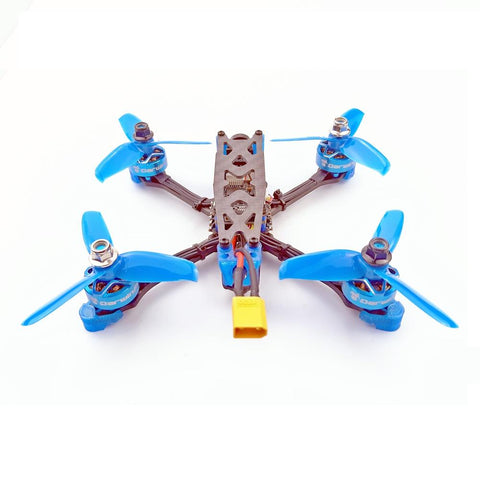

DarwinFPV 3" Micro Darwin79 Long Range FPV Analog Drone PNP



Specification:

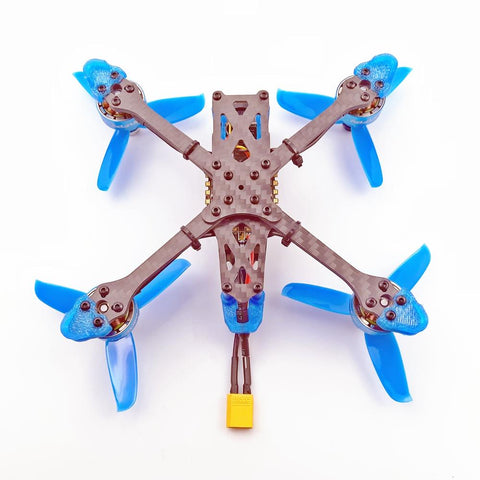

  • 140mm Racing Frame Kit
  • Wheel base: 140mm
  • Frame arm thickness: 3mm
  • Other thickness:1.5mm
  • Frame kit material: 3K carbon fiber

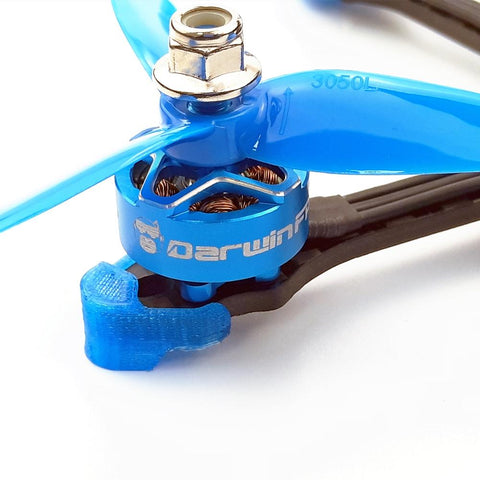

  • 1507 2400KV 2-4S Brushless



Motor

  • KV: 2400KV
  • Lipo cell: 2-4S
  • Weight: 17.8g
  • Output shaft length: 14mm
  • Maximum pull: 624g
  • Maximum power: 720W
  • Configu-ration: 12N14P
  • Mounting holes distance: 12*12mm
  • Mounting holes: φM2
  • Bearing: NSK
  • N52 Strong NdFeB Magnet
  • Recommend propeller: 3 inch



4 IN 1 30A BLHeli_S

  • Continuous current: 30A
  • Pe ak current: 35A (10S)
  • BEC output: no
  • Input voltage: 2-4S
  • Main control chip:EFM8BB21
  • Firmware upgrade: Supports Dshot600/Oneshot125
  • MOS: 3*3

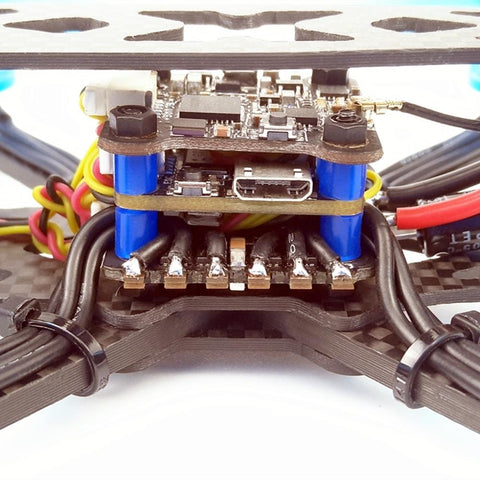

F4 Flight Controller

  • Main control chip: STM32F411
  • Sensor: MPU6000
  • Integrated OSD
  • PPM/DSM/IBUS/UAR share: UART1-RX
  • Mounting holes distance: 20*20mm
  • Weight: 3.6g
  • Supports Betaflight/cleanflight/inav firmware

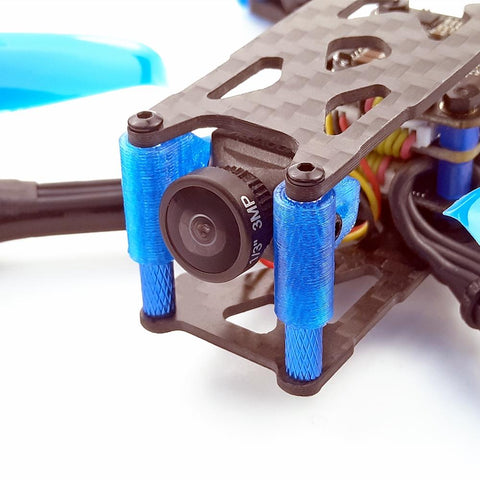

  • CADDX Turbo EOS2
  • 1200TVL Camer
  • Case size: 14mm*14mm
  • Weight: 3.5g
  • 5.8G 40CH
  • 0mW/25mw/200mw
  • switchable VTX
  • Supports TBS SmartAudio



Transmitting power: 0mW/25mW/100mW/200mW switchable

  • Channel: 40CH
  • Full video format: NTSC/PAL
  • Input voltage: 7V~24V
  • Power dissipation: +12V/600MW
  • Size: 25×20×6mm
  • Weight: ≤3.2g (except antenna)
  • With copper pipe mini antenna (ipex antenna)



3050 3-blade propeller

  • Material: PC
  • Mounting hole: 5mm
  • Center thickness: 6mm
  • Quantity: 2 pairs
  • Color: Blue
  • Weight: 1.6g a pair
  • Lipo Battery
  • Not included
  • Recommend 2-4S 450-650mah



Packaging Included:

  • 1x Darwin79 Long Rang Drone PNP
