DarwinFPV AIO 15A 1-3S F411 UItralight Whoop Flight Controller 25.5x25.5mm

  • $79.95
  • Save $20.00


Like us? Please hit the Like button below:)


Product Description:

DarwinFPV AIO 15A 1-3S F411 UItralight Whoop Flight Controller 25.5x25.5mm

DarwinFPV 15A 1-3S F411 AIO great for Ultralight and Whoop builds! Capacitor Pre-soldered for convenience!


ESC Specifications

  • Input voltage: 3.7 ~ 13V DCIN(1 ~ 3 6slipo)
  • Constant current: 15A
  • Peak current: 17A
  • BEC Output: No
  • Mcu: 48mhz efm8bb21f16g protocol: dshot/oneshot/multishot blheli_s
  • firmware target: SH-50
  • Telemetery: No
  • Current Sensor: No



FC

  • Mcu Specifications : 100mhz stm32f411ceu6
  • Imu: mpu6000 (spi)
  • Baro: No
  • Blackbox: No
  • OSD:AT7456E
  • 2xuarts (1,2)
  • Built-in drive for sbus input (UART1-RX) 1x soft serial supported (s5)
  • 3.7 ~ 13V DCIN(1 ~ 3 6slipo)
  • Bec: 5v 2nd cont.(max 2.5a )
  • LDO3.3V:Max 200mA
  • Battery voltage sensor: 1:10 (scale110)
  • BetaFlight target: MATEKF411

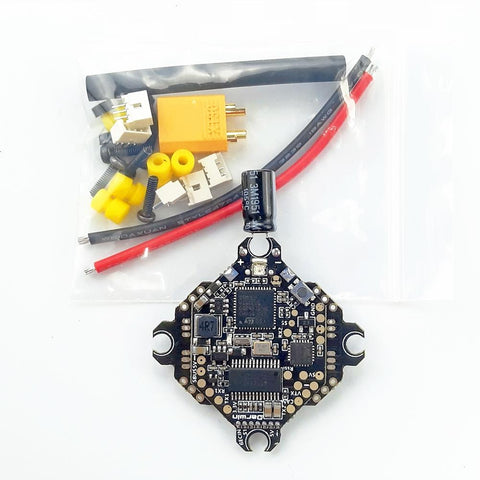

Package Includes:

  • 1x DarwinFPV 15A 1-3s Ultralight/Whoop AIO
