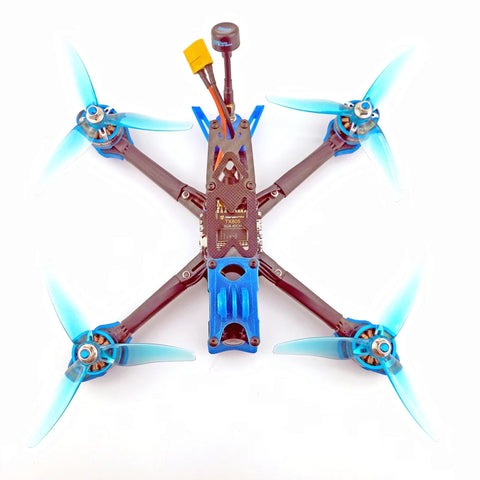

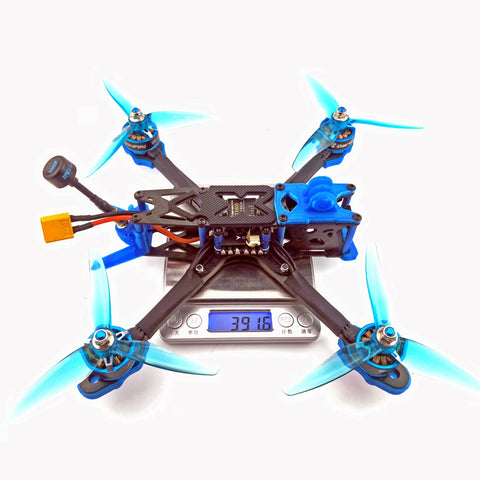

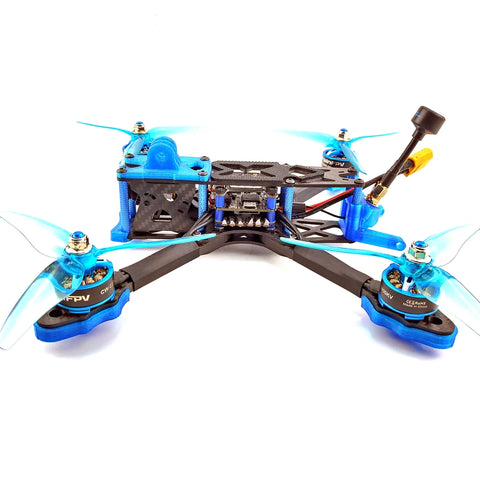

DarwinFPV Darwin240 Johnny 5 Inch FPV Drone 4S FreeStyle Racing ELRS

  • $369.99
(Ex GST: $336.35)



DarwinFPV Darwin240 Johnny 5 Inch FPV Drone 4S FreeStyle Racing BNF ELRS

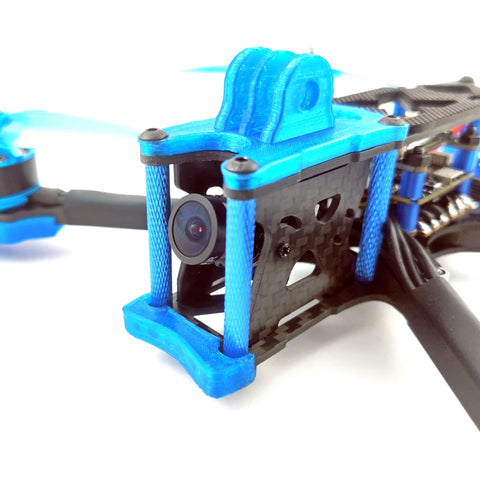

DarwinFPV- Johnny 5

  • Wheel base: 240mm
  • Frame arm thickness: 5.5mm
  • Frame kit material: 3K carbon fiber

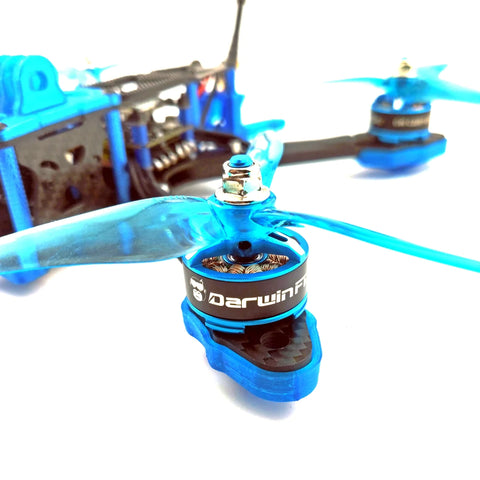

DrawinFPV 2207- 2400KV Brushless Motor

  • Motor KV:2400KV
  • Idle Current (Io/10V):0.81A
  • Lipo Cell:3-4S
  • Weight:36.4g
  • Max Continuous Current:32A
  • Max Continuous Power:765W
  • Configu-ration:12N/14P
  • Prop adapter shaft:M5
  • Bolt holes spacing:16mm
  • Bolt thread:M3



4 IN 1 50BLHeli_S ESC

  • F4-50A stack
  • Continuous current: 50A
  • Peak current: 60A (10S)
  • Lithium battery section number: 2-6S
  • BEC: 5V2A
  • ESC weight: 10.8g
  • Firmware: BL_S
  • Maximum support throttle signal: DSHOT600
  • Mounting hole: M3 30.5 * 30.5mm



F4 Flight Controller

  • F4 Flight contro
  • Lithium battery section number: 3-6S
  • BEC: 10V 1A, 4.5V, 3.3V
  • MCU: STM32F405
  • Gyro: MPU6000
  • OSD: AT7456E
  • Firmware: MATEKF405
  • Weight: 7.2g
  • Mounting hole: M3 30.5 * 30.5mm
  • Support barometer, black box
  • Bluetooth



5.8G 40CH 800mw VTX TX805P

  • Frequency: 5.8G Channels: 40CH
  • Input voltage: 7V~24V
  • 5V camera supply: 120mA(MAX)----25mW@12V 5V
  • camera supply: 200mA(MAX)----200mW@12V 5V
  • camera supply: 300mA(MAX)----600mW@12V 5V
  • camera supply: 350mA(MAX)----800mW@12V Extra
  • features: Smart audio
  • Power supply: 5V output for Camera
  • Output power: 25mW/200mW/600mW/800mW
  • switchable Antenna connector: MMCX
  • Cable connector: Solder pads
  • Weight: 8g(excluding antenna)
