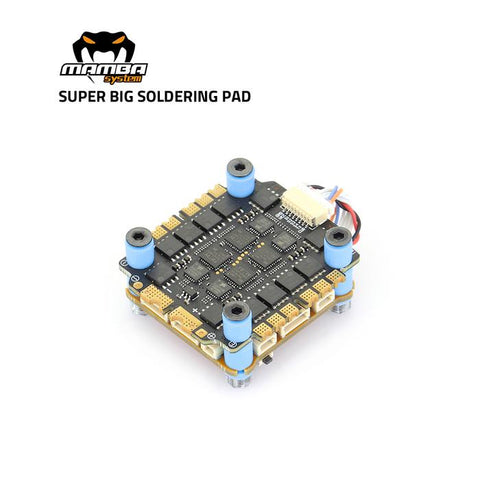

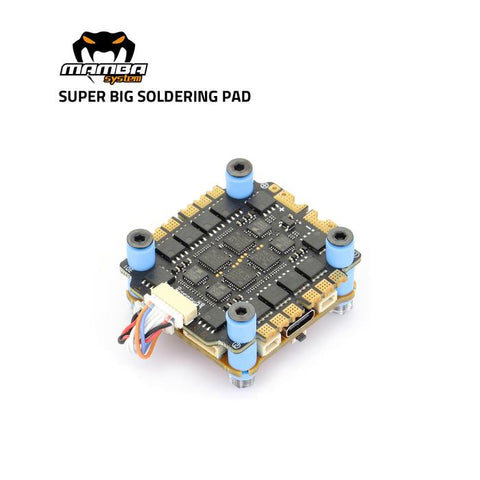

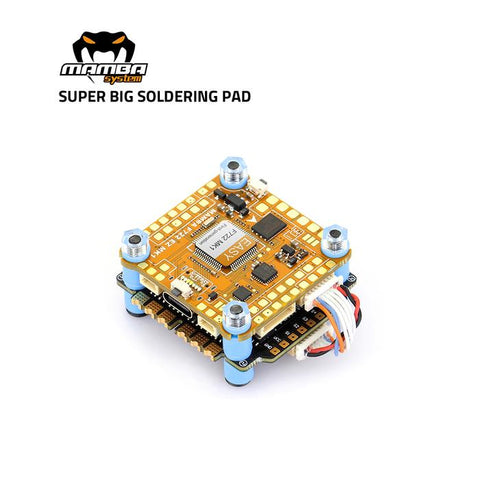

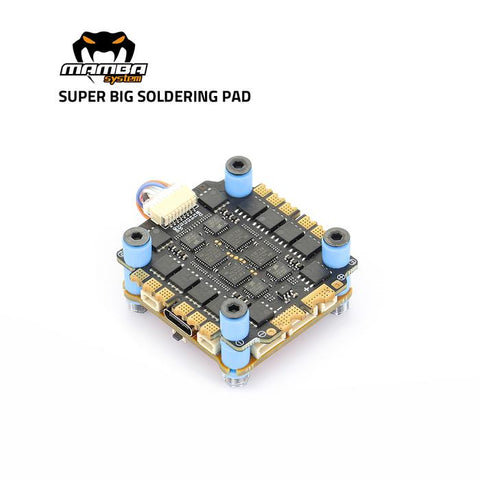

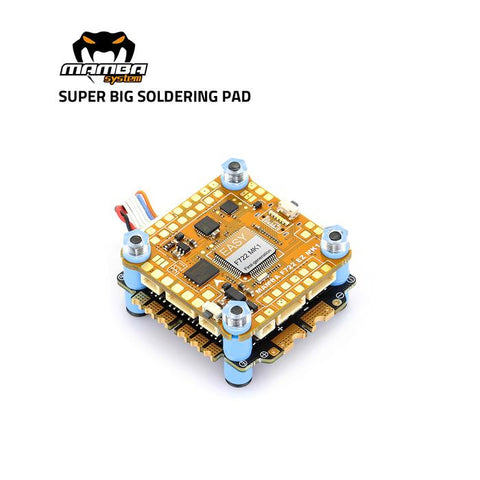

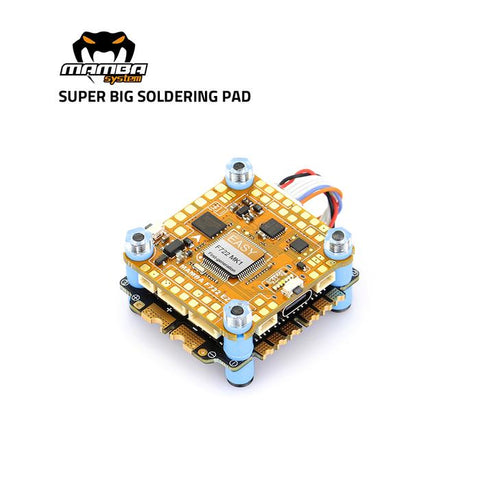

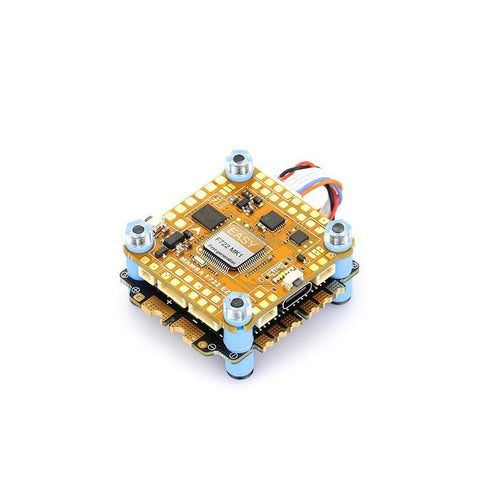

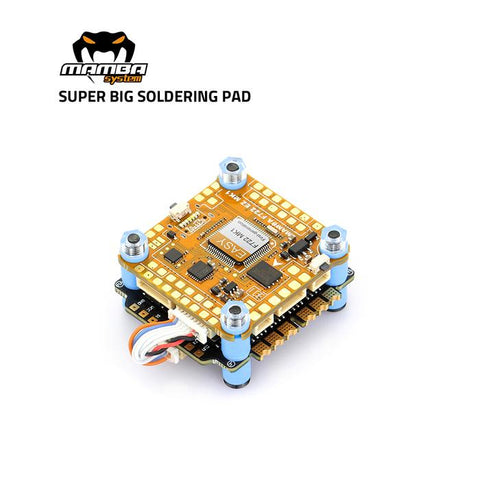

Diatone Mamba EASY F722 X8 MK1 Flight Controller + F55 55A 128K ESC Stack 30.5x30.5mm

  • $159.95
  • Save $30.00


Like us? Please hit the Like button below:)


Product Description:

Diatone Mamba EASY F722 X8 MK1 Flight Controller + F55 55A 128K ESC Stack 30.5x30.5mm

FC specification:

  • MCU: 216MHz STM32F722
  • GYRO: MPU6 Series
  • Barometer: Yes
  • OSD: Yes
  • Blacbox: 16M Flash Memory
  • Uarts: 6Set
  • ESC Signal:8Set
  • ESC Soft: Dshot300/600/1200
  • ESC Telemetry: Yes
  • Power Led: Yes
  • LED Controller:BF LED/MB LED(4 Set 2812 LED)
  • I2C:Yes
  • F.Port: Yes
  • RSSI: Yes
  • Buzz: Yes
  • Input: 3~6S Lipo (12.6~25.2V)
  • TVS Protection: Yes
  • BEC:3.3V 0.5A& 5V 2A ( System Power)&
  • 5V 3A(LED)& 9V 2A
  • MOUNTING: 30.5mm,M3



ESC 55A -128K

  • INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
  • CONTINUE CURRENT:55A×4
  • BURST CURRENT:65A (10S)
  • BEC: No
  • Target:BLHeli_32 MAMBA F55_128K
  • SOFT: Dshot300/600/1200
  • PWM:24~128K
  • TVS Protection: Yes
  • MOUNTING: 30.5mm/M3


Accessories Included:

  • 2x 8pin sh1.0
  • 1x AMASS Original XT60
  • 1x High Frequency 470uF/35V
