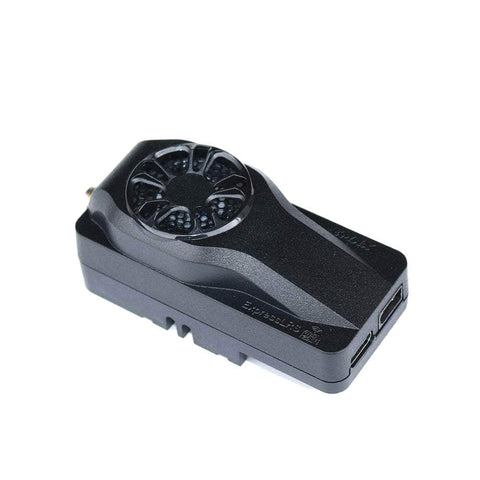

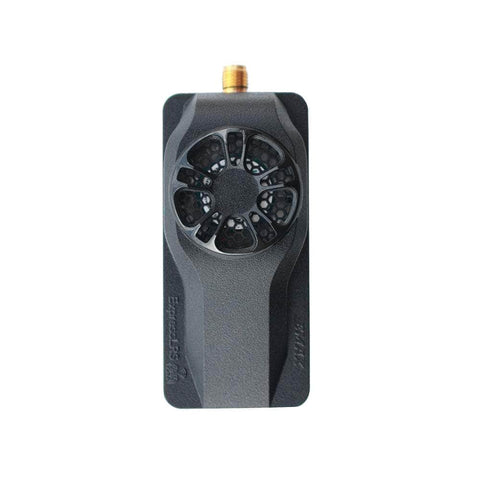

EMAX Aeris Link ELRS System ExpressLRS Module Micro Nano TX 2.4GHz

Emax has entered the world of Express LRS products with its Aeris Link module. Available in both 915MHz or 2.4GHz for the best range and penetration! This module also features tons of output power and external power options, Choose Emax to feel confident in the skies using ELRS!


Features

  • 1000mW for 2.4GHZ ELRS

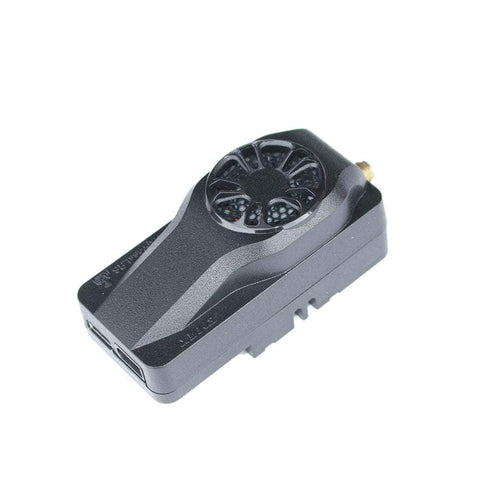

  • RGB fan displays battery level

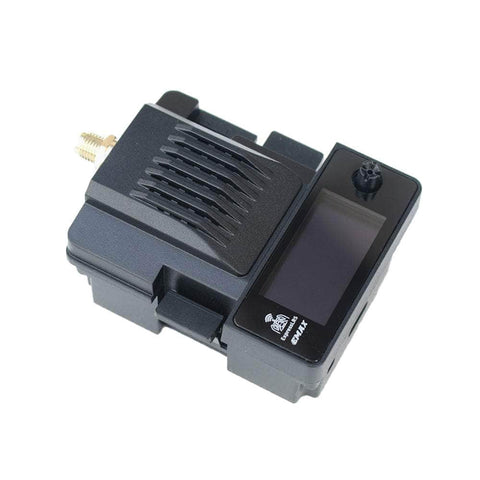

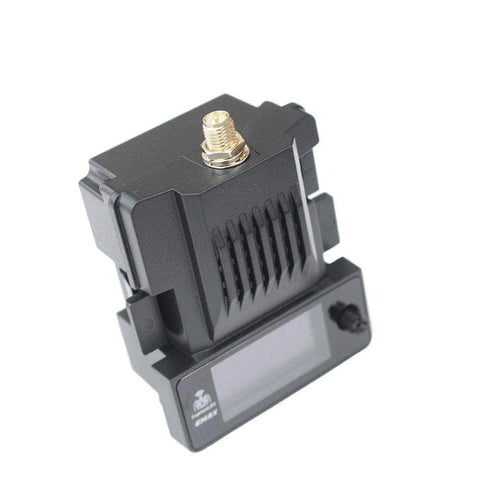

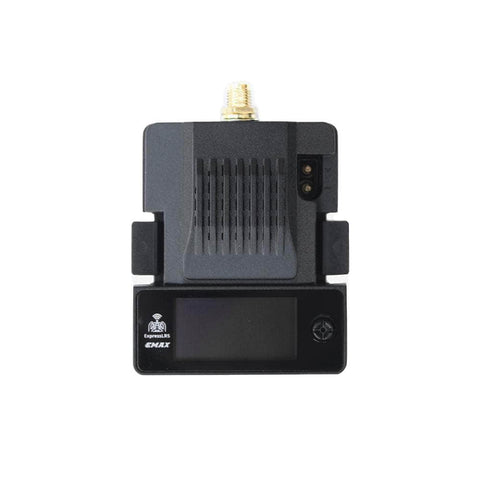

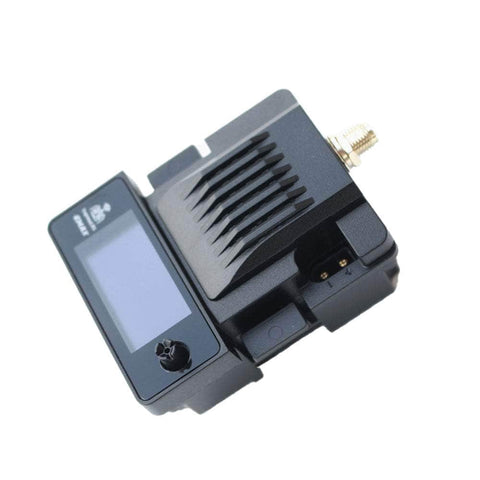

  • OLED screen and joystick or LUA script friendly
  • 2-5S operational voltages



Specifications

  • Module Bay Input Voltage: 5-12V
  • OLED Screen size: 1.29 " (Full size only)
  • OLED Screen resolution: 64 x 128 (Full size only)
  • Operating frequency: 2.4GHz ISM / 915MHz FCC
  • Output power: 10mW/25mW/50mW/100mW/250mW/500mW/1000mW
  • Refresh rate: 50Hz/100Hz/150Hz/250Hz/500Hz

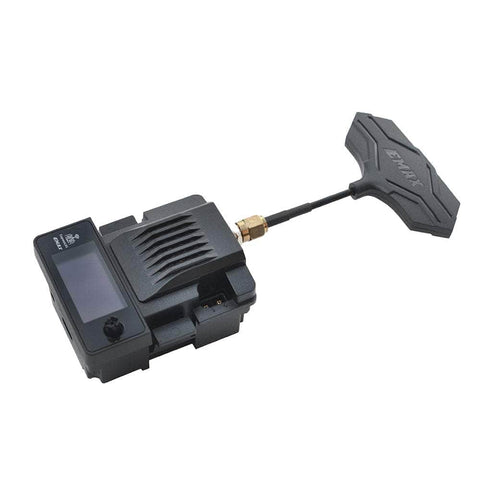

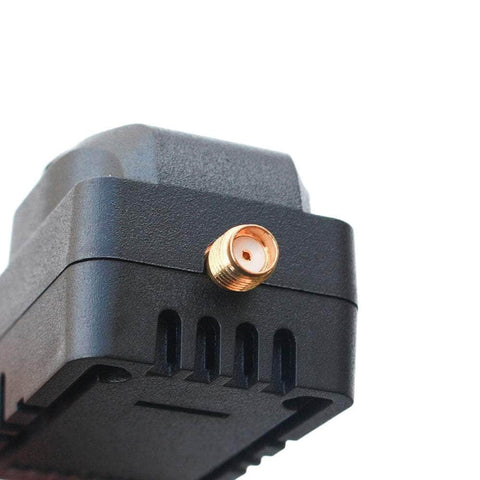

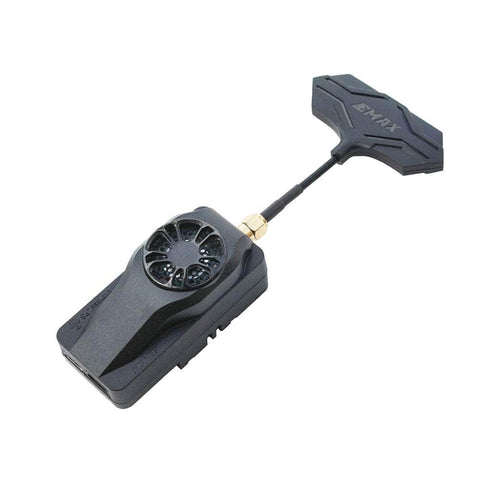

  • Antennas: Moxon Directional Antenna (2.4GHz), RP-SMA connection
  • Configuration: Support signals of Crossfire Serial Data Protocol (CRSF) and OpenTX remote control
  • Interface: Type-C, JR interface

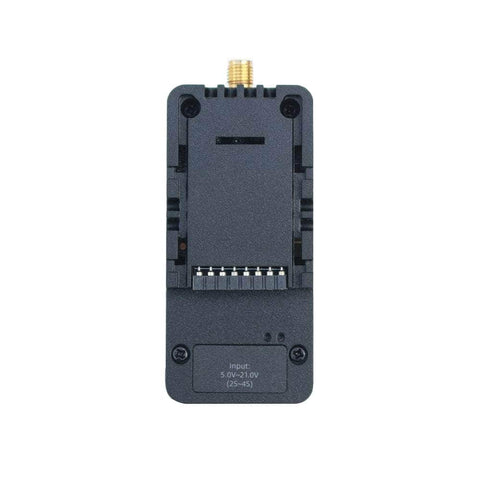

  • External Power: XT30 supporting 5-21V (2-5S) voltage input, 2S (8.4V) is recommended



Includes

  • 1x Emax Aeris Link ELRS 2.4GHz Transmitter Module
