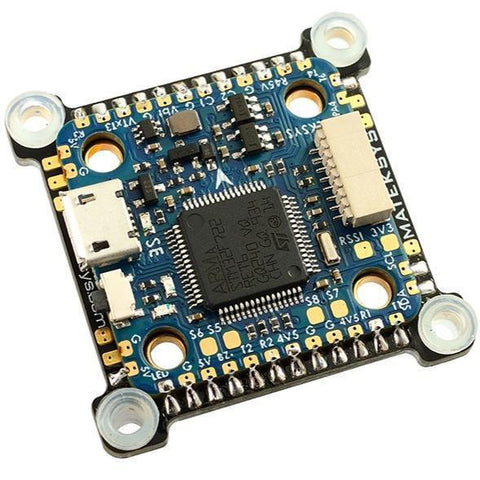

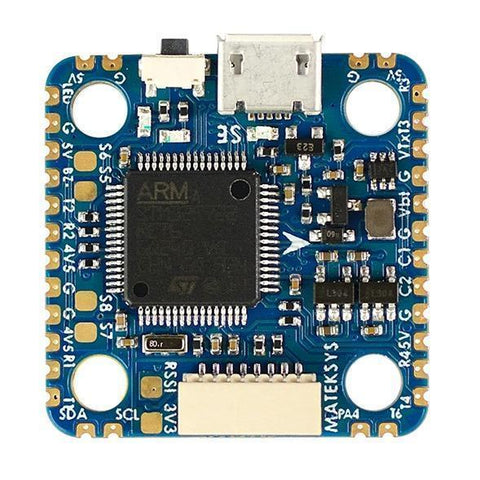

Matek F722 Mini SE F7 2-8S Flight Controller 20x20mm

  • $64.90



Matek F722 Mini SE F7 2-8S Flight Controller 20x20mm


FC Specifications

  • MCU: 216MHz STM32F722RET6
  • IMU: MPU6000 (SPI)
  • OSD: AT7456E (SPI)
  • Baro: Infineon DPS310 (I2C)
  • Blackbox: 32M-byte Flash memory (SPI)
  • 5x Uarts (1,2,3,4,6) with build-in inversion
  • 1x Softserial supported
  • 8x Dshot/Proshot/oneshot outputs
  • 1x I2C
  • 1x SH1.0_8pin connector (Vbat/G/Curr/R6/S1/S2/S3/S4)
  • 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
  • Vbat filtered output power for VTX,  Switchable via AUX (modes tab-user1)
  • Dual Camera image switchable via AUX (modes tab-user2)

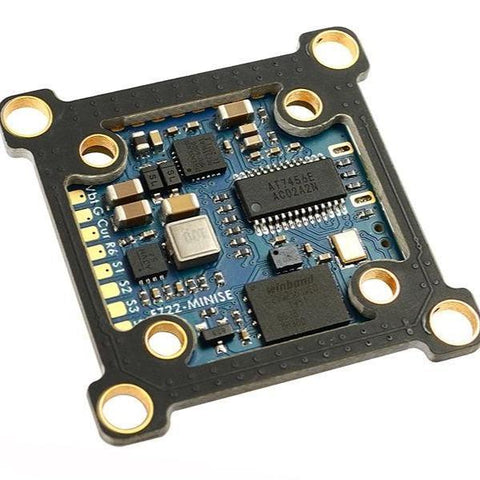

  • Convertible 20mm to 30.5mm mounting
  • Camera control: Yes
  • Smartaudio & Tramp VTX protocol: Yes
  • DJI OSD: Yes (any spare Uart Tx & Rx)
  • WS2812 Led Strip : Yes
  • Beeper : Yes
  • RSSI: Yes
  • Additional ADC for INAV analog airspeed



Power

  • Input: 6~36V (2~8S LiPo)
  • BEC: 5V 2A
  • LDO 3.3V: Max.200mA
  • Battery Voltage Sensor: 1:10 (Scale 110)
  • No Current Sensor built-in, supports external current sensor of PDB/4in1


Firmware

  • INAV target: MATEKF722mini
  • BetaFlight unified target: MATEKF722mini(MTKS)
  • BetaFlight legacy target: MATEKF722SE



Physical

  • Mounting
    • 20 x 20mm/Φ3mm with Silicon Grommets
    • 20 x 20mm/Φ2mm with Silicon & Brass Grommets
    • 30.5 x 30.5mm/Φ3mm with Conversion Plate and Silicon Grommets

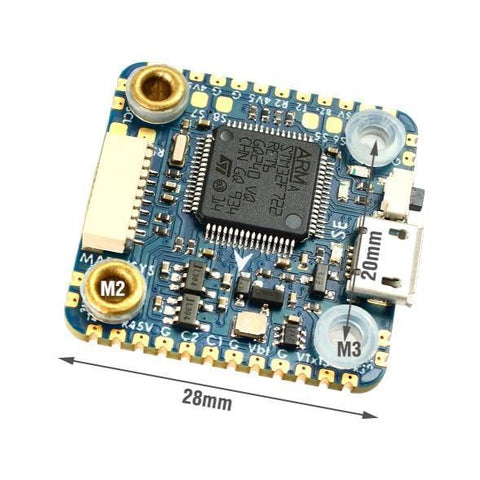

  • Dimensions:  28 x 28 mm
  • Weight: 5g



Including

  • 1x FC F722-miniSE
  • 1x 20mm to 30.5mm conversion plate
  • 6x Silicon grommets M4 to M3
  • 6x Brass grommets M3 to M2
  • 1x SH1.0_8pin cable 5cm
  • 2x SH1.0_8pin connectors
