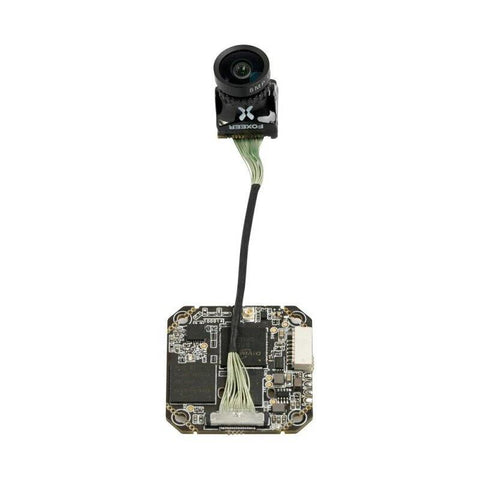

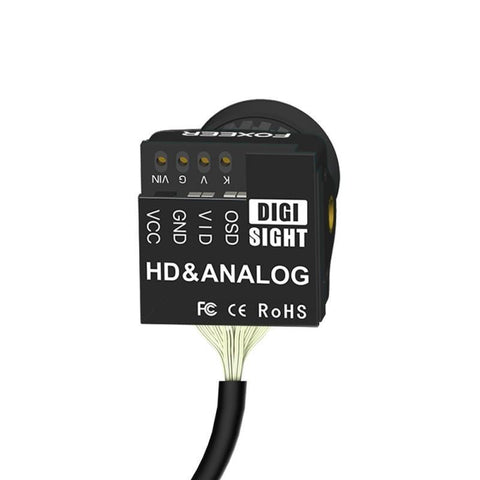

Foxeer Digisight 720P Digital Analog 4ms Latency Super WDR FPV Camera for FPV Racing RC Drone

  • $84.95


Like us? Please hit the Like button below:)


Product Description:

Specification:

Sensor Type: S0ny 1/3" CMOS Sensor
Scale: 4:3(default)/16:9 Switchable
Tv System: PAL(default)/NTSC Switchable
Resolution: Digital 720P/Analog 1000TVL
Shutter Speed: PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec
Video Output: 720P Digital HD/CVBS Analog Signal
FOV Digital: FOV-H:120° FOV-D: 145°
Analog: FOV-H:125° FOV-D: 155°
Shutter Speed: Auto
Minimum Illumination: 0.01Lux
White Balance: Auto
DNR: 3DNR 2DNR
WDR: 120dB
Mode: DAY/CLOUDY/Night/LED
Fast Mode Switch: Long Press Right Button to switch among DAY/CLOUDY/Night/LED
Flight OSD: Cam Title / Voltage (Only in analog) / Time
Input Power
Digital: 3.3V from VTx
Analog: 4.5~20V
Language: ENGLISH/ DEUTSCH/ FRANCAIS/ PYCCKNN/ PORTUGUES/ ESPANOL/ 中文
Working Temperature: -10°~50°C RH90% MAX
Working Humidity: 20~80%
Storage Temperature: -20°~70°C
Menu: Analog via camera programming board, Digital via VTx programming board
Consumption
Analog:50mA±15% @ DC12V 115mA±15% @ DC5V
Digital:350mA@3.3V(Powered by VTX)
Dimension: 14*14mm; 19*19mm(Add Bracket)
Weight: 4.3g(Exclude cable)

Package included:

1 x Foxeer DigiSight Nano
4 X (M2x4)Screws
4x Bracket Ring
4x(M2x6) Bracket Screws
1 x OSD Board
1 x Bracket
1 X 2pin OSD Cable
1 X Ribbon Cable
1 X Servo Cable
