GEPRC GEP-20A-F4 AIO Flight Controller

  • $99.95
(Ex GST: $90.86)

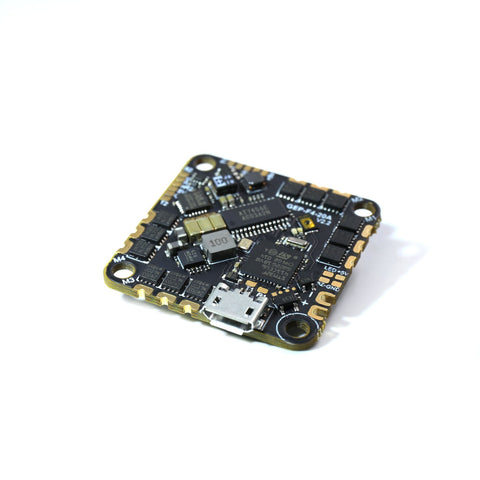

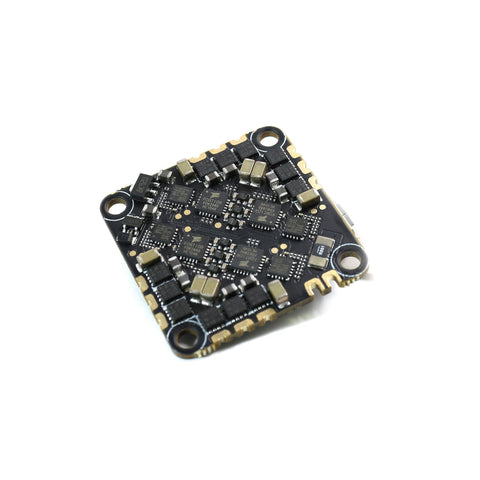

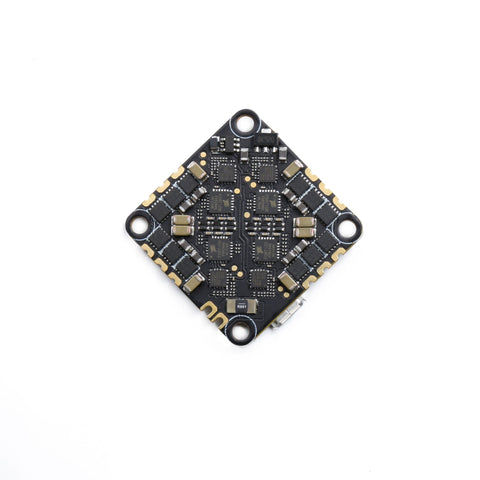

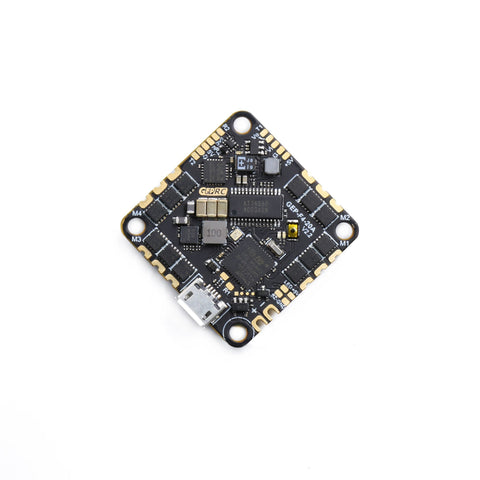

GEPRC GEP-20A-F4 AIO Flight Controller

The new high performance AIO brushless FC, GEP-20A-F4 was added to the toothpick drone

Compared with the previous 12A version, the new GEP-20A-F4 can achieve a continuous current of 20A and a burst current of 30A.Maximum 4S battery support, recommended to use 12xx-15xx motor, with 3″-5″ size blade.This GEP-20A-F4 has strong flight performance, OSD input, extremely light weight, let your new toothpick to build a higher flight performance through the aircraft.



Specifications:

  • Model Name:GEP-20A-F4
  • MCU: STM32F411
  • IMU: MPU6000 gyro/accelerometer (SPI)
  • FC Firmware target:MATEKF411
  • OSD: BetaFlight OSD w/ AT7456E chip
  • Baro:NO
  • Current Monitoring : Support
  • Betaflight OSD : Support
  • External Buzzer : Support
  • LED : Support
  • USB Port: MicroUSB
  • BEC Output: 5V@1A
  • Integrated LC Filter
  • ESC MCU: 8BB21F16G
  • Continuous current: 20A
  • Peak current: 30A
  • Input voltage:2-4s lipo
  • Supports Dshot600 ,Oneshot,Multishot
  • Current meter: 210
  • Target: G_H_30
  • Size: 32x32mm board,26.5mm mounting holes (M2)
  • Installing Hole: 26.5×26.5mm, M2


Receiver Support:

  1. Frsky XM/XM+/R-XSR
  2. Futaba Receiver
  3. DSM/DSMX
  4. FlySky Receive
  5. TBS Crossfire Receiver
  6. AC900
  7. Most receivers that support SBUS


Feature:

  • Strong performance, cont.current 20A, burst current 30A
  • BLhelis_S 20A, maximum support 4S battery,Built-in current sensor
  • Compatible with 12xx-15xx motor installation, with 3″-5″ size propeller
  • STM32F411 flight control, Super-high Running Frequency
  • MPU6000 gyroscope
  • External Buzzer : Support
  • LED Control : Support
  • Designed with silica gel shock absorbing column, it can reduce the high frequency vibration caused by frame and motor, allowing the flight control to operate in a noiseless environment
  • The overall weight is about 7.3g

MANUAL.pdf


Include:

  • 1x GEP-20A-F4
  • 1x Power cable
  • 8x screw
  • 4x Soft silicone
