GEPRC GEP-ST35 3.5 Inch FPV SMART 35 Drone Frame Kit

  • $79.99
  • Save $20.00


Like us? Please hit the Like button below:)


Product Description:

GEPRC GEP-ST35 3.5 Inch FPV SMART 35 Drone Frame Kit

Hello every body there is a special new member of GEPRC FreeStyle frame series,and it is released now, GEP-ST35, a 3.5inch FreeStyle frame with light weight.

GEP-ST35 has designed multiple mounting holes, which can install different FC and VTX, It is also can install 8mm-13mm hole size motor, GoPro Hero 8 naked camera and Insta 360 Go2 camera can be installed with GoPro camera mount, 4mm Arm can also be equipped with 2mm reinforced arm, ultra-high strength fuselage.

GEP-ST35 is elaborately designed by geprc team, with small size, lightweight and excellent flight performance.



Specification:

  • Brand name: GEPRC
  • Model: GEP-ST35
  • Wheelbase: 155mm
  • Top Plate: 2.0mm
  • Bottom Plate: 4.0mm
  •  Arm Plate: 4.0mm
  • Reinforced arm: 2.5mm
  • FC mounting holes: 26.5mmx26.5mm/20mmx20mm
  • VTX mounting holes: 20mmx20mm
  • Motor mounting holes: 9mmx9mm/12mmx12mm

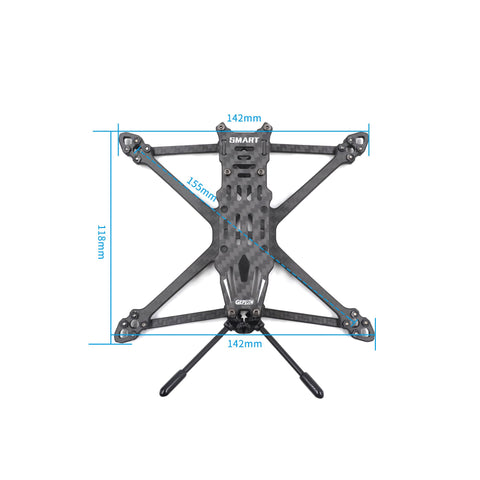

  • Size: 142mmx118mmx36mm

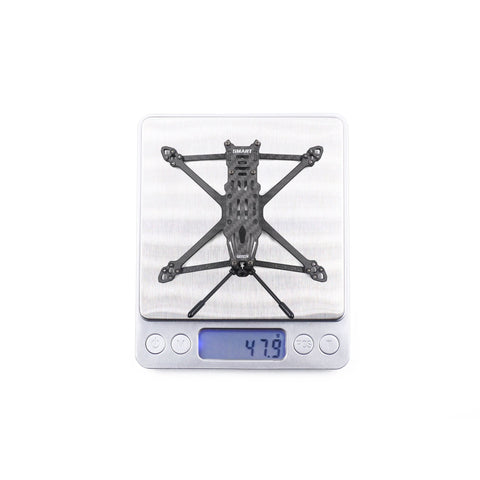

  • Weight: 47.9g (With 3D prints and reinforced Arm)



Features:

  1. Small size, light weight, and good flight experience.
  2. 4mm Arm can also be equipped with 2mm reinforced arm, ultra-high strength fuselage, the Strength rised to a higher level.
  3. There are a number of installation holes for FC and VTX.
  4. The motor with 8mm-13mm hole spacing can be installed.
  5. The mount of GoPro camera is designed to install GoPro Hero 8 naked camera and Insta 360 Go2 camera.



Frame:

  • 1x Top Plate
  • 1x Bottom Plate
  • 2x Camera mounting Plate
  • 2x Front reinforced Plate
  • 2x Ear reinforced Plate



Screw:

  • 6x M2 * 4.0×25 aluminum columns
  • 2x M2 * 4mm cup head screws
  • 20x M2 * 6.5mm round head screws
  • 8x M2 * 7mm round head screws
  • 18x M2 * 9mm round head screws
  • 4x M2 * 12mm cup head screws
  • 1x M2 * 16mm cup head screws
  • 4x M2 * 18mm cup head screws
  • 4x M2 * 25mm cup head screws
  • 4x M2 * 4mm damping rings
  • 8x M2 * 6.5mm damping rings
  • 2x M2 Nylon shims
  • 1x M2 Rivet nuts
  • 4x M2 Nylon Nuts
  • 4x M2 Lock Nuts



3D Prints:

  • 1x VTX antenna mount
  • 1x TBS NanoRX antenna mount
  • 1x Naked camera mount



Accessories:

  • 1x Battery pad
  • 1x EVA landing pad
  • 1x Battery strap (M15 * 200mm)
  • 1x Screwdriver (1.5mm)
  • 1x Antenna fixing tubes
  • 4x Motor wire protection tubes (35mm)
