GEPRC GEP-TAKER G4 35A AIO Flight Controller 25.5x25.5mm

  • $92.50
  • Save $17.49
(Ex GST: $84.09)

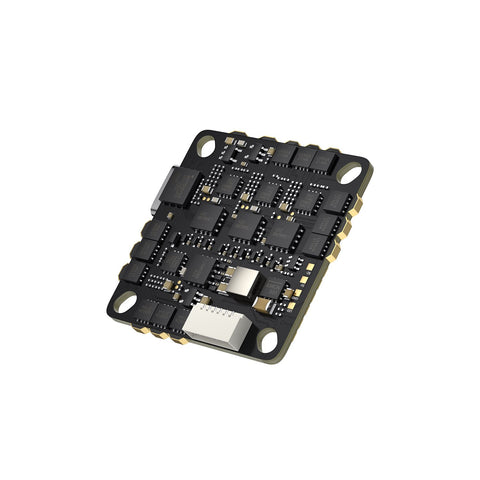

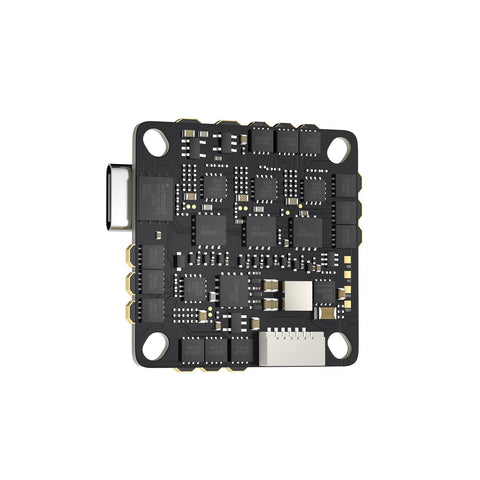

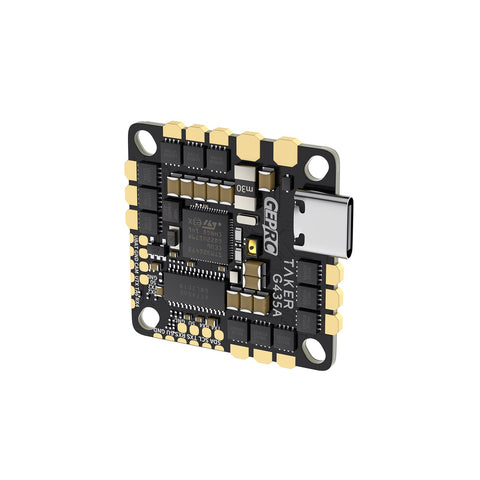

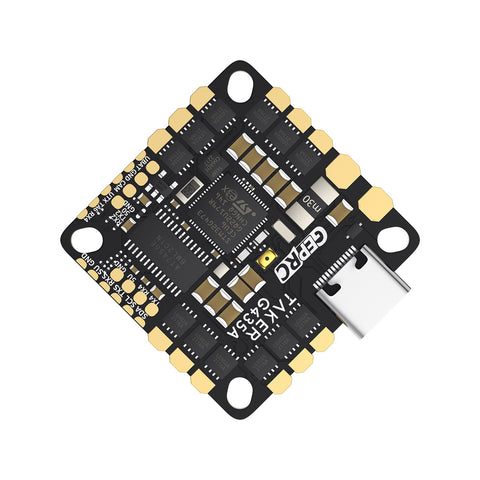

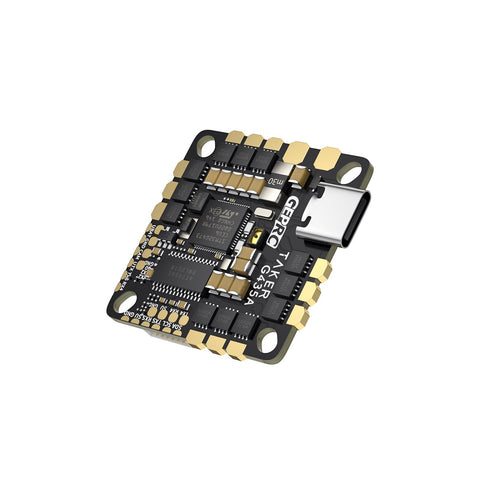

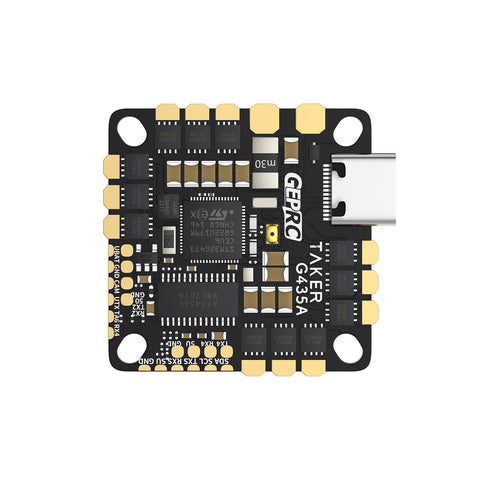

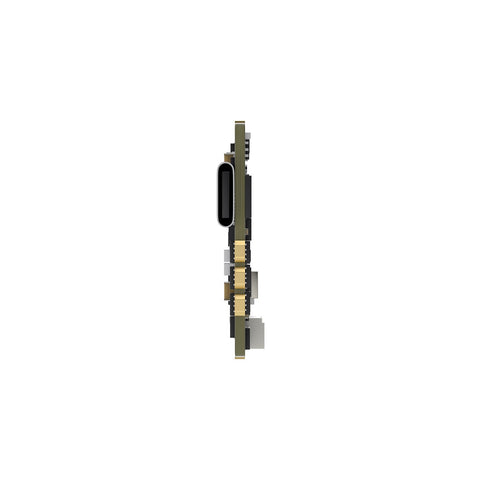

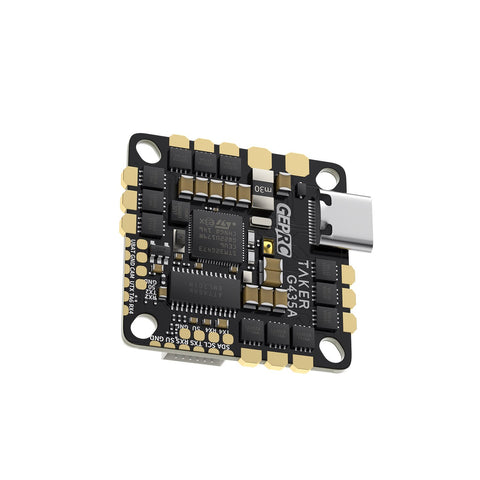

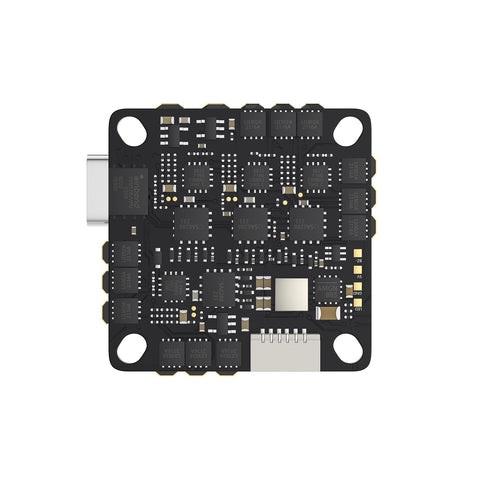

GEPRC GEP-TAKER G4 35A AIO Flight Controller 25.5x25.5mm

TAKER G4 35A is a newly developed AIO flight control by the GEPRC team. It adopts G473 main control and has more redundant computing power.

In response to market demand, the TYPE-C interface has been upgraded, and the power supply pad and motor wire pad have been optimized to make welding easier. It is compatible with two mounting holes of 25.5-26.5mm and can be compatible with more frames.

We are committed to pursuing flight controllers that are smaller in size, lighter in weight and stronger in performance.



Feature

  1. Compact size and compatible mounting holes make installation convenient.
  2.  Light weight only 7.7g.
  3. G473 main control, 170MHz operating frequency, abundant computing power.
  4.  Upgraded Type-c USB for better versatility.



Specifications

  • Model Name:TAKER G4 35A AIO
  • MCU:STM32G473CEU6
  • IMU:ICM 42688-P
  • Firmware target:TAKERG4AIO
  • OSD:Betaflight OSD w/ AT7456Ev
  • Uart:R1 T1 / R2 T2 / R4 T4 / R5 T5
  • Buzzer:YES
  • LED :YES
  • USB :Type-c USB
  • BEC output:5V@3A
  • ESC MCU:BB21F16G
  • Continuous Current:35A
  • Burst Current:45A(5″)
  • lnput Voltage:2~4S (LIPO Battery)
  • Supports:Dshot600,Oneshot,Multishot
  • Current meter: YES
  • target:J -H -15
  • Size:33.4×34.4mm Board
  • Install hole:25.5-26.5 Φ3.05mm
  • Weight:7.7g



Includes

  • 1x GEP-TAKER G4 35A AIO
  • 1x Cable Set
