GEPRC MARK 4 HD5 DJI FPV Freestyle 5" Frame kits

  • $125.95


Like us? Please hit the Like button below:)


Product Description:

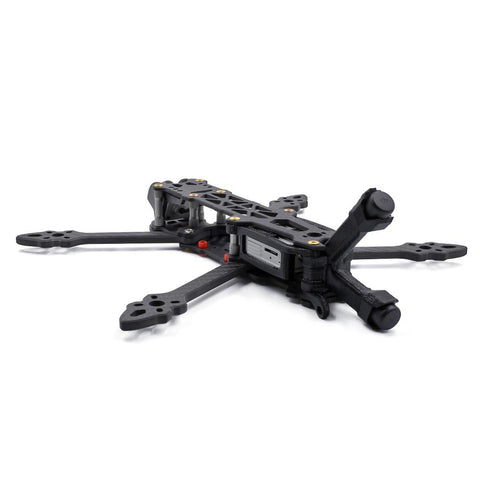

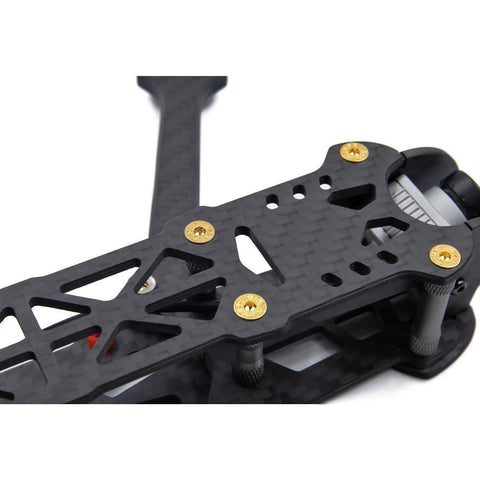

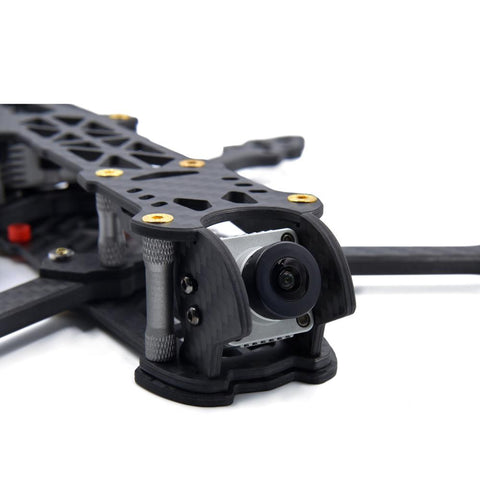

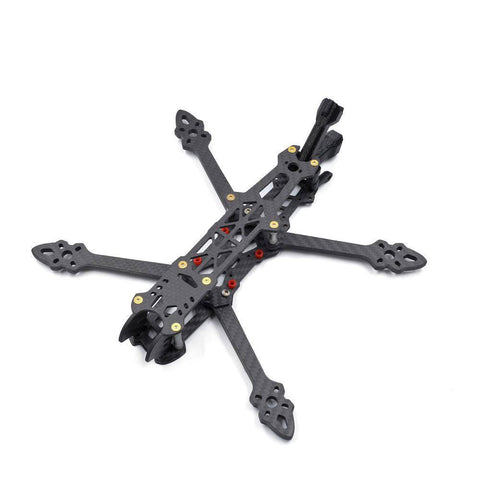

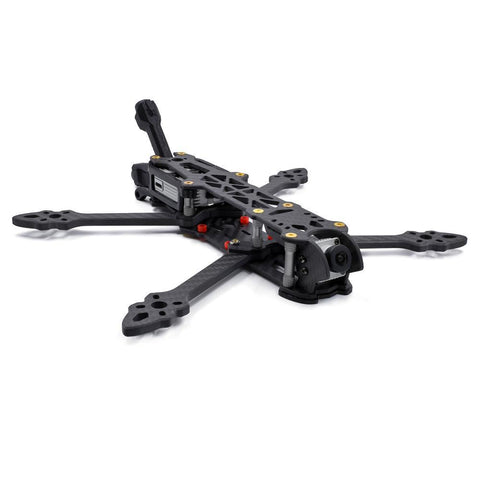

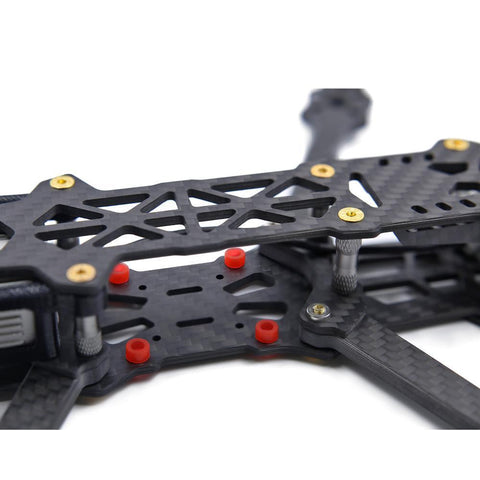

GEPRC MARK 4 HD5 DJI FPV Freestyle 5" Frame kits

Features

  • The perfect match DJI FPV Air Unit
  • 3D printing parts are fixed and protected
  • No propeller in the view
  • Full 3K Carbon Fiber Frame
  • Super lightweight Freestyle frame
  • Beautiful appearance design,durable in crashing
  • Quick maintenance Arms and replacement of equipment
  • 25mm standoffs for better height and CG relation,Ample space for electronic installation
  • ALU6061 Srandoff New , Strengthen the hardness
  • There are 30.5*30.5mm and 20*20mm flight control holes , Stack can fit in the center or the rear.
  • High quality 3K twill carbon fiber plate, high precision CNC processing
  • YFS screw, 12.9 grade strength, non-slip teeth, anti-rust,Durable steel hardware

Specifications

  • Item name:GEP-Mark4 HD5 Frame
  • Frame type:H-TYPE
  • Propeller : 5inch
  • Motor to motor:224mm
  • Size:138*176mm
  • Mounting Holes: 30.5*30.5mm/20*20mm
  • Weight:121g
  • Arms plate : 5mm
  • Side plate : 2.5mm
  • Top plate : 2.5mm
  • Bottom plate : 2.5mm
  • Protect plate : 2mm

Include

  • 4 x 5mm 5inch Arms
  • 2 x 2.5mm side plate
  • 1 x 2.5mm top plate
  • 1 x 2.5mm Bottom plate
  • 2 x 2mm Bumpers plate
  • 2 x 2mm Reinforce plate
  • 1 x Lipo silicone pad
  • 1x DJI FPV Air Unit fixed
  • 1x Antenna Mount
  • 1x RX Antenna Mount

Note: The DJI Air Unit is NOT INCLUDED
