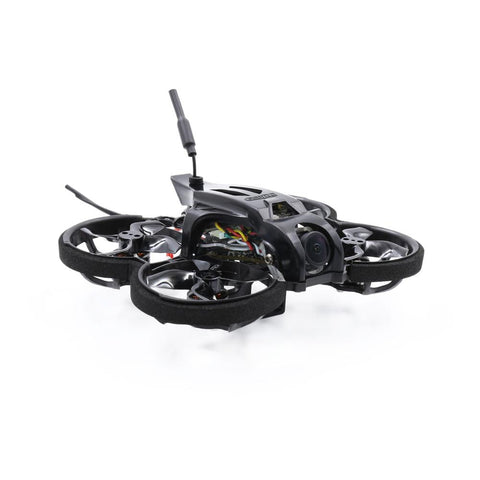

GEPRC TinyGO Racing FPV Whoop Drone RTF V1.3

  • $529.99



GEPRC TinyGO Racing FPV Whoop RTF

*Updated version with New Controller (please note that required 2x 18650 battery for this controller, get it here: 18650 Battery)

For 4K edition please click the link below:
GEPRC TinyGO 4K RTF

GEPRC Happy to announce a new member of our family “ TinyGO”  Ready To Fly Kit which is suitable for any novice from scratch and Indoor flight. Through a great number of tests, Better technical indexes and Good performance were obtained.TinyGO currently has two versions: the Indoor version and the 4K professional version. 4K can record 4K 60fps video.

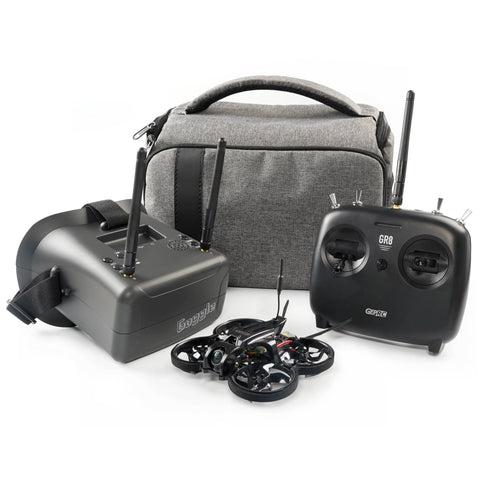

TinyGO is RTF Kit for Indoor Flight. The Kit contains a high-definition 800x480px FPV Goggle and the latest GEPRC GR8 Remote Controller. It supports 8 channels and is specially designed for indoor and novices. The remote control has a good feeling of control and It is lightweight and easy to carry. The good point is that you don’t need to carry heavy equipment. With our customized GEPRC Fly Bag, it’s very convenient to go to the field, travel, and Indoor flight.

TinyGO can use its own charger to charge. The charger uses the Type-C interface. You can use the movable power bank to charge as well. Using conveniently and quickly.

TinyGO can be flight more than 6 minutes (Depending on flight habits). Its stable electronic equipment and extremely strong and tough frame material make the FPV very stable and durable for crash. There is an EVA protection foam around the frame, More elastic and hard to damaged and deformed.

TinyGO is carefully assembled and assembles by GEPRC team, with excellent performance. You can start a whole new journey and enter into FPV World, TinyGO will be the best choice for your first FPV Drone.

This looked like the beginning of a terrific flight Experience Literally

Changelog

January 12, 2022:TinyGo shipped from today are the new remote controller, the new charger version.

December 16, 2022: VTX changed from 5.8G 25~200mW VTX to RAD Whoop 5.8G 400mw VTX.

December 16, 2022: The flight controller changed from GEP-12A-F4 to TAKER F411 8Bit 12A FC.

May 26, 2023: The remote controller changed from TinyRadio GR8 to TinyRadio ELRS 2.4G.

May 26, 2023: The flight controller changed from TAKER F411 8Bit 12A AIO without ELRS version to TAKER F411 8Bit 12A built-in ELRS version.

Feature:

  • TinyGO is very suitable for indoor flight, More than 6 minutes of flight time
  • Using GEPRC-12A-F4 FC system, reliable and stable
  • No Propellers in view, Anti-jamming VTX, NO Jello flight Footage, stable flight picture
  • The Newly Developed GR8 Remote Controller is specially designed for Novice and indoor flight
  • High-Quality FPV Goggle, High definition 800 * 480px, sensitive 5.8G receiver
  • Ready To Fly Kit, Including a GEPRC Fashion Fly bag, Portable and Light weight.
  • There are Two versions: The normal version is suitable for daily practice, The 4K version can Record 4K 60fps Video.

Configuration:

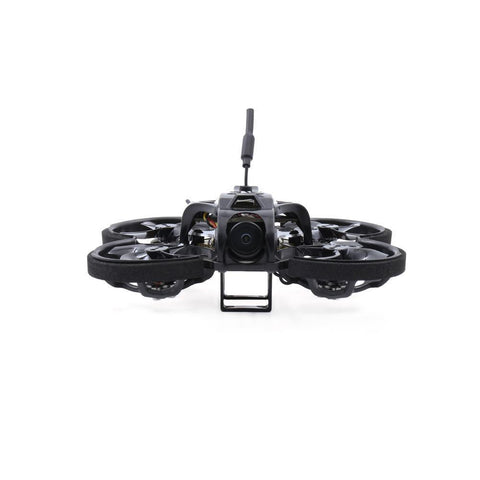

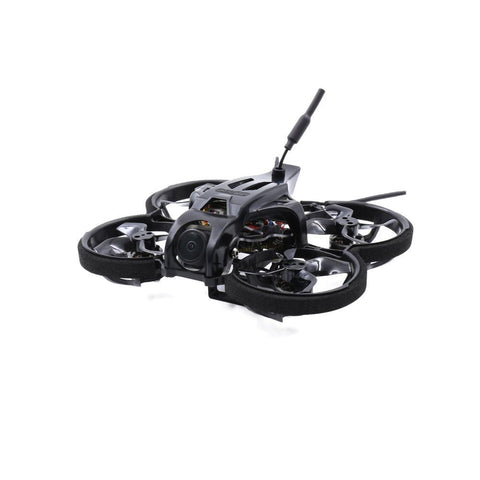

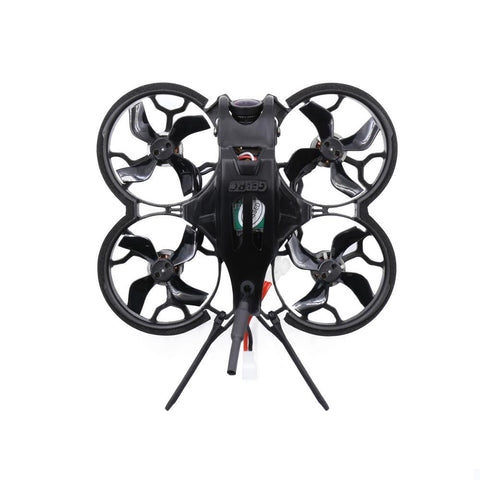

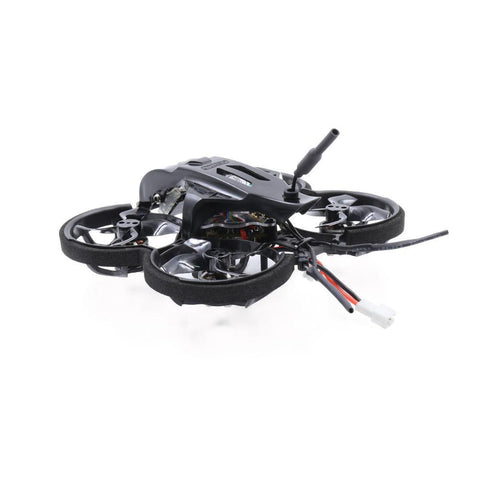

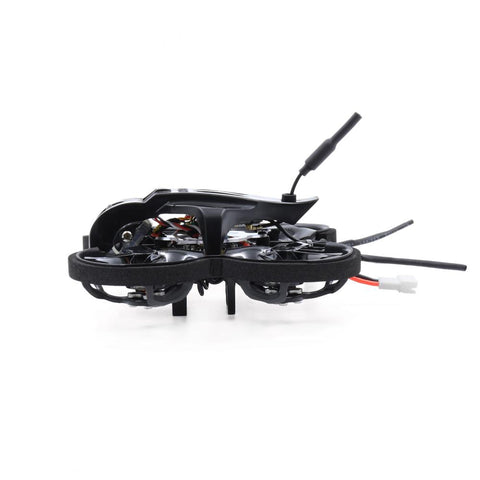

  • Name: TinyGO
  • Brand: GEPRC
  • Frame: GEP-TG16
  • Motor to Motor: 79mm
  • FC: TAKER F411 8Bit 12A
  • MCU: STM32F411
  • IMU: 42688-P
  • Blackbox: 16Mb
  • OSD: BetaFlight OSD w/ AT7456E chip
  • ESC: 8Bit 12A
  • VTX: RAD Whoop 5.8G 25~400mw VTX
  • Camera: Runcam Nano2/Caddx Loris 4K 60fps
  • Propeller: GEMFAN 1636*4 (4 pairs)
  • Motors: GR1102 10000Kv
  • Receiver: Integrated ELRS SPI receiver

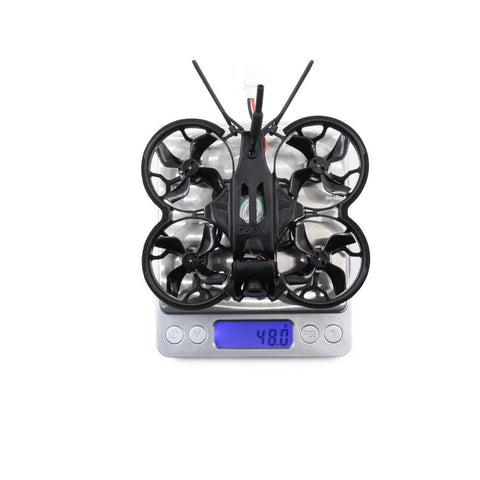

  • TinyGO Racing Weight: 48 Grams

Remote Controller

  • TinyRadio ELRS 2.4G Remote Controller (V1.3 ELRS Radio)
  • Radio Frequency: 2.4GHz
  • Radio Frequency: 2.4GHz
  • Range: 1000+ meter
  • Channel: 8
  • Transmit Power:<500mW
  • Antenna interface : SMA
  • Low Voltage alarm: <6.6v
  • Batteries: 2 x 18650 Batteries (not included)
  • TinyRadio GR8 Remote Controller (FHSS Radio)
  • Radio Frequency: 2.4GHz
  • Radio Protocol: FHSS
  • Channel: 8
  • Transmit Power: < 20 dBm
  • Antenna interface: SMA
  • Low Voltage alarm: <6.6v
  • Batteries: two 18650 batteries or a 2S battery.(not included)

    Receiver:

    • Channel: 8
    • Voltage: 5V
    • Radio Frequency: 2.4GHz
    • Radio Protocol: ELRS (V1.3) or FHSS
    • Range: 300 meter

    FPV Goggle:

    • Resolution: 800*480px
    • Size of Screen: 4.3 inch
    • Whole Size: 155mmx144mmx113mm
    • In-built batteries: 3.7v/2000mAh
    • Working Hours: 2.5 Hours
    • Weight: 314.6 Grams

    FPV Batteries:

    • Batteries Capacity: 530mAh
    • Voltage: 4.35v 1S1P
    • Discharge rate: 90C
    • Size:(61mmx16.7mmx7mm)
    • Weight: 12.7 Grams
    • Interface: PH2.0

    Charger:

    • Input power: 5v (USB & Type C)
    • Full charged Voltage: 4.35v
    • Output current: 500mAh
    • Charging: It can charge 4 PCS 1s HV lipo 4.35v HP2.0 plug batteries at the same time

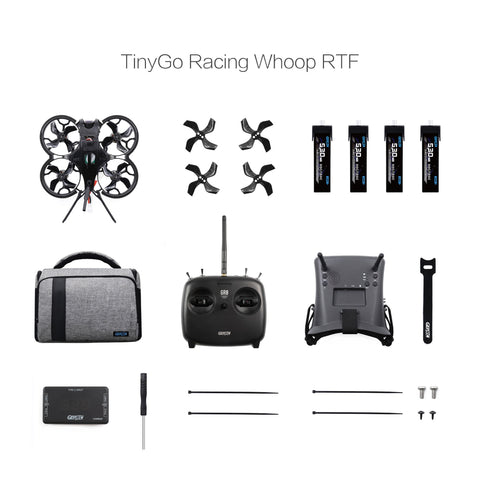

    Include:

    • 1x TinyGO RACING TinyWhoop
    • 1x GEPRC GR8 Transmitter
    • 1x GEPRC FPV RG1 Goggle
    • 4x GEPRC LiHV 4.35v 80C Battery (Get More Battery Here)
    • 1x Battery strap
    • 4x Gemfan 1636*4 Props(pairs) (Get Spare Propeller Here)
    • 1x GEPRC Fly bag
    • 1x Screwdriver
