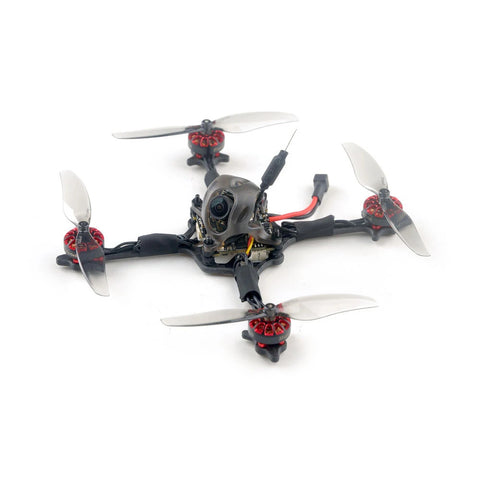

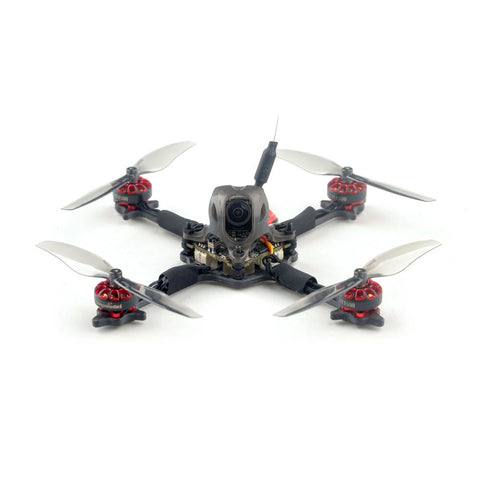

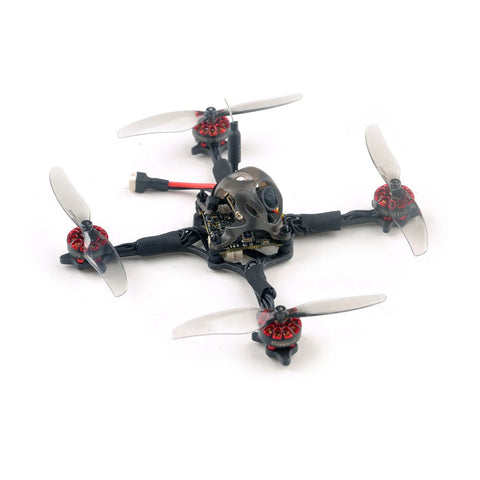

HappyModel Crux3 1S Toothpick 3 Inch Quad FPV Racing Drone

  • $209.99
(Ex GST: $190.90)



HappyModel Crux3 1S Toothpick 3 Inch Quad FPV Racing Drone BNF ELRS

*For ELRS V3 Radio Controller, please download Crux3 1S ELRS V3 firmware and CLI Dump file from here: Crux3 1S ELRS V3

Features:

  • 40gram 1s brushless Toothpick drone
  • AIO Flight controller with ELRS Receiver and 5.8G VTX
  • CADDX ANT 1200TVL Camera
  • New 1202.5 KV11500 brushless motor

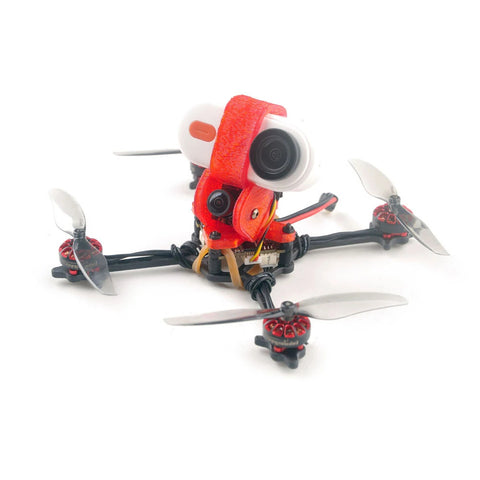

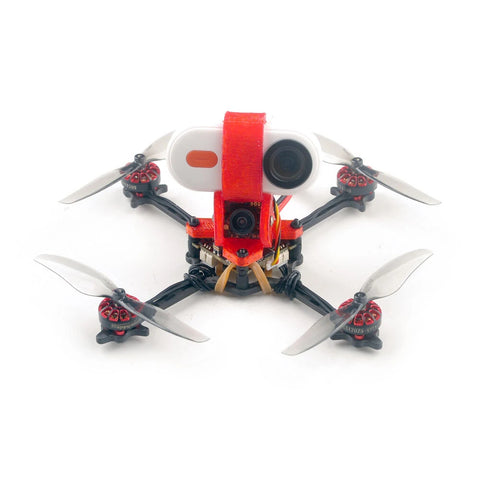

  • Compatible with CaddxFPV Peanut and Insta360 GO2 ( NOT Included)

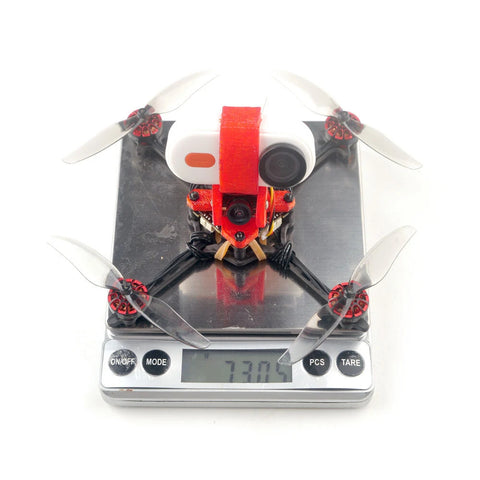

  • Carrying Caddxfpv peanut Got 4.5 minutes flying time with 1s 650mah battery



Specifications:

  • Brand Name: Happymodel
  • Model: Crux3 1S ELRS
  • Item Name: 115mm F4 1S Toothpick FPV Racing Drone BNF
  • Wheelbase: 115mm
  • Size: 97mmx97mmx35mm (without propellers)

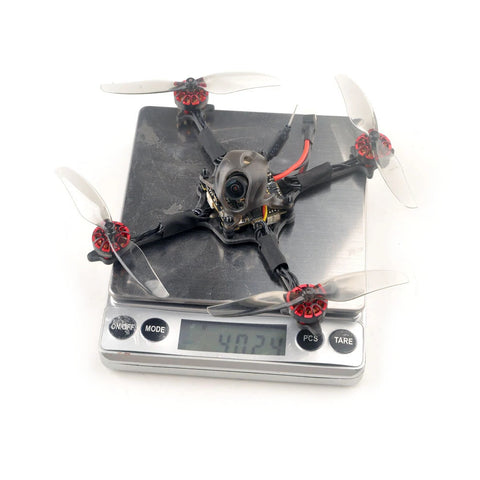

  • Weight: 40g(without battery)

Motor

Mode: EX1202.5 KV11500
Configu-ration:9N12P
Stator Diamter:12mm
Stator Length:2.5mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ14mm*14.5mm
Weight(g):4.4g
No.of Cells(Lipo):1S

Propellers

Gemfan 75mm

Center Thickness:5mm

Prop Diameter:75mm

Center Hole diameter:1.5mm

Pitch:0.9in

Flight controller

MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Original whoop size compatible
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI ExpressLRS 2.4GHz receiver

Built-in 5V 1A BECFlight controller

firmware target: CRAZYBEEF4SX1280

Onboard 4in1 ESC

MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV

Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_7.HEX
Default protocol: DSHOT300

Onboard SPI ExpressLRS 2.4GHz Receiver

Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz

Antenna : SMD antenna
Telemetry output Power: <12dBm

Receiver protocol to flight controller:  CRSF

Could bind with All ExpressLRS 2.4GHz TX module , ExpressLRS firmware need 1.0.0 or latest

Onboard 5.8g VTX

Output power: 25mw~200mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race band

Smartaudio ready

Caddx ANT 1200tvl camera

Image Sensor: 1/3" CMOS Sensor

Horizontal Resolution: 1200 TVL

TV System: NTSC or PAL

IMAGE: 16:9 or 4:3

Synchronization: Internal

Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000

S/N Ratio : >52dB (AGC OFF)

Video Output: CVBS

Lens: 1.8mm

Min. Illumination: 0.001Lux@F1.2

Auto Gain Control: YES

BLC: YES

WDR: Global WDR

DNR: 3D DNR

Dimensions: 14*14mm(with bracket to 19*19mm)

Wide Power Input: DC 3.7-18V

Work Temperature: -20℃~+60℃

Weight: 2g (N.W.)


Recommend Lipo Battery: ( NOT Included)

  • 1S 450mah / 650mah / 660mah / 720mah battery PH2.0 Plug

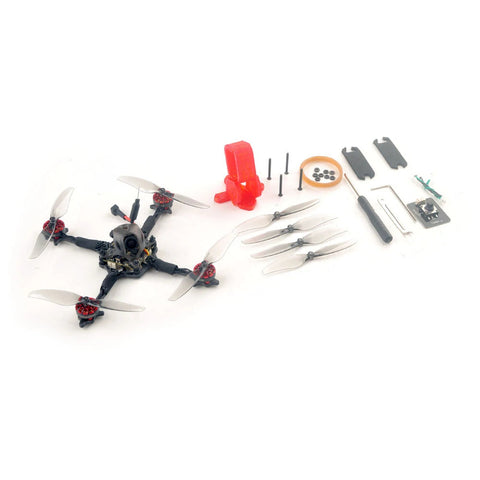

Package Included:

  • 1x Crux3 Frame and canopy
  • 1x ELRS F4 2G4 flight controller built-in SPI ExpressLRS 2.4G receiver
  • 4x Happymodel EX1202.5 KV11500 brushless motor
  • 1x Gemfan 75mm bi-blade Propellers(4cw+4ccw)
  • 1x Caddx Ant 1200TVL Global WDR with OSD 2g Ultra Light Nano FPV Camera
  • 1x 5.8G 25mw~200mw 40ch vtx (Flight controller built-in)
  • 1x Screw Driver
  • 1x Propeller disassemble tool
  • 3D Printed canopy for Insta360 GO2 and CaddxFPV Peanut
  • 1x Happymodel Handbag
