HappyModel Moblite7 HDZero 1S 75mm Brushless HD FPV TinyWhoop Drone

  • $379.99
(Ex GST: $345.45)



HappyModel Moblite7 HDZero 1S 75mm Brushless HD FPV TinyWhoop Drone BNF SPI ELRS 2.4G

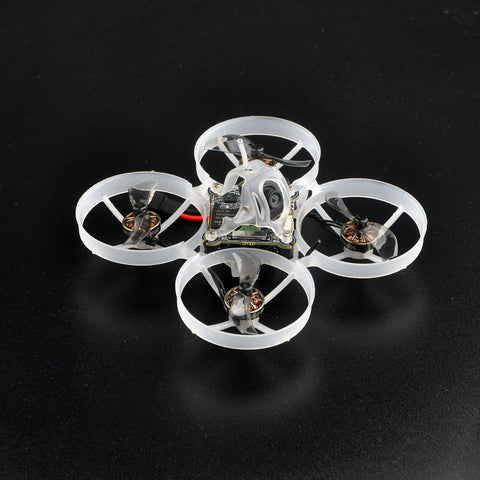

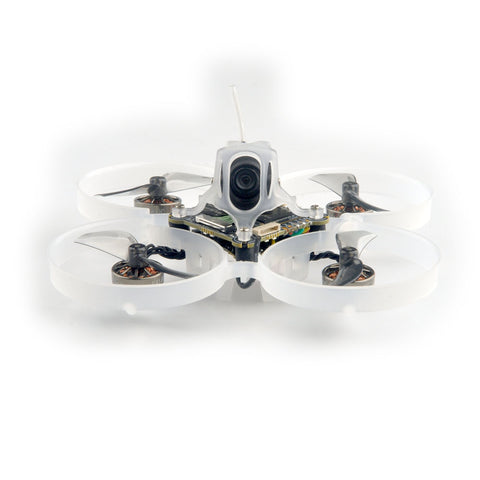

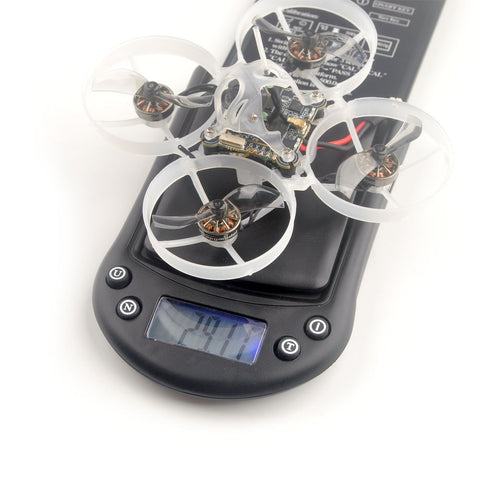

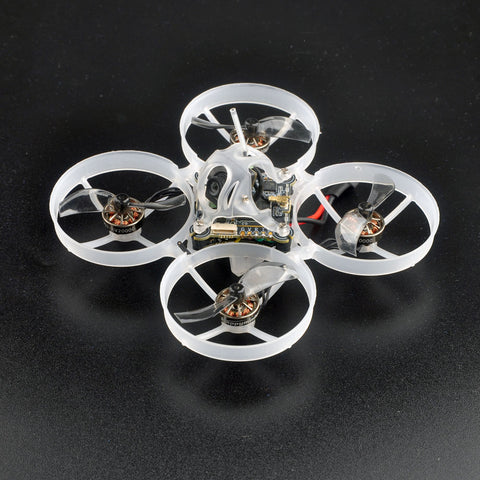

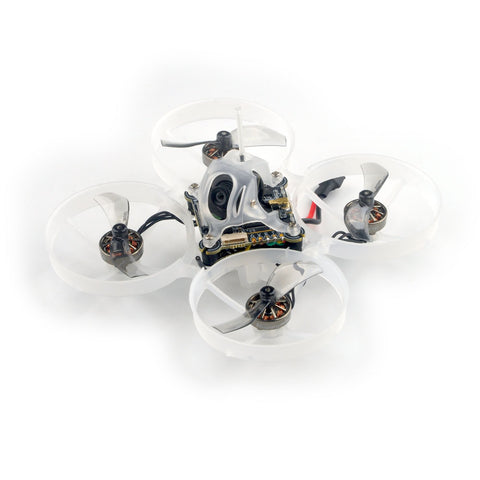

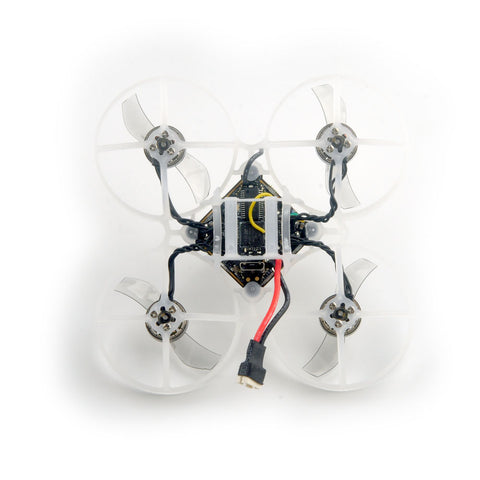

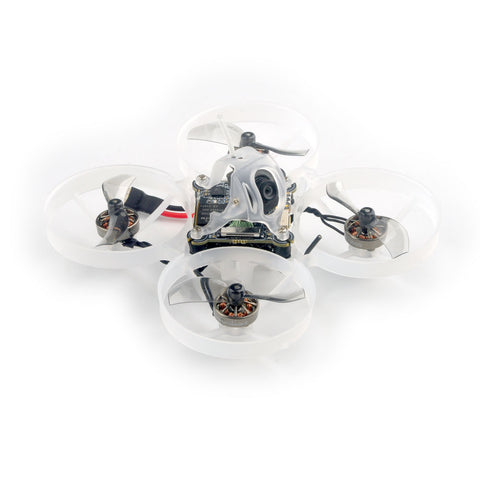

The Happymodel Moblite7 HDZero Whoop is a 75mm HD brushless whoop weighing just 29.5 grams. It features the HDZero Whoop Lite VTX and Nano Camera and built-in SPI ELRS 2.4GHz or FrSky 2.4GHz receiver.  With powerful EX1002 KV20000 motors, and Superbee F4 Lite flight controller, this should be a great performing high-definition whoop you can fly just about anywhere.


FC SPECIFICATIONS:

  • SPI ELRS version Firmware target: CrazybeeF4SX1280
  • SPI FRSKY version Firmware target: CrazybeeF4FR
  • MCU: STM32F411CEU6 (100MHz, 512K FLASH)
  • Sensor: ICM20689 or ICM42688P or BMI270(SPI connection)
  • Power supply: 1S Lipo Lihv battery input (DC 2.8V~4.35V)
  • Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
  • Built-in Betaflight OSD(SPI Control)
  • Built-in SPI Frsky/ExpressLRS receiver
  • Built-in 5V 1A BEC
  • Built-in voltage detection



4-IN-1 ESC SPECIFICATIONS:

  • MCU upgraded to EFM8BB21
  • Power supply: 1S LiPo/LiPo HV (2.8v~4.35v)
  • Currents: 5A continuous peak 6A (5 seconds)
  • Support BLHeliSuite programmable
  • Factory firmware: O_H_5_REV16_8.HEX
  • Default protocol: DSHOT150/DSHOT300/DSHOT600



ELRS SPI RECEIVER SPECIFICATIONS:

  • Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
  • RF Frequency: 2.4GHz
  • Telemetry output Power: <12dBm
  • Receiver protocol:  SPI ExpressLRS
  • Could bind with ELRS V2.0 firmware TX module



FRSKY SPI RECEIVER SPECIFICATIONS:

  • SPI BUS receiver Frsky D8/D16 compatible
  • Compatible Non EU transmitter D8 model and EU-LBT(Frsky_x_lbt)
  • Channels: 8ch or 16ch
  • Failsafe support
  • No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m
  • Based on CC2500 RF module Compatible with Futaba S-FHSS , Redpine protocol



MOTOR SPECIFICATIONS:

  • Model: EX1002 20000KV
  • Configuration: 9N12P
  • Stator Diameter: 10mm
  • Stator Length: 2mm
  • Shaft Diameter: Φ1.5mm
  • Motor Dimension(Dia.*Len): Φ13.5mm*12.5mm
  • Weight(g): 2.5g
  • No. of Cells(Lipo): 1S only



GEMFAN 1610-2 PROPELLER SPECIFICATIONS:

  • Weight: 0.24g
  • Material: PC
  • Pitch: 1 inch
  • Props Dia: 40mm
  • Center Hole Dia: 1.5mm



HDZERO NANO LITE CAMERA SPECIFICATIONS:

  • Dimensions: 14x16x11 mm
  • Weight: 1.5gram
  • Sensor: 0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMos sensor
  • Excellent low light performance
  • FOV:
    4:3: D:130° H:108° v:84°
    16:9:D:122° H:108° V:65°



HDZERO WHOOP LITE VTX SPECIFICATIONS:

  • 1S Input
  • 25mW/200mW RF Output-SmartAudio Support
  • 25.5×25.5 M2 Soft Mounting- Antenna Retention
  • Removable Shielding Box- 32.5×32.5mm(29x29mm inner)
  • 4.5grams/4mm Thickness (without shielding)

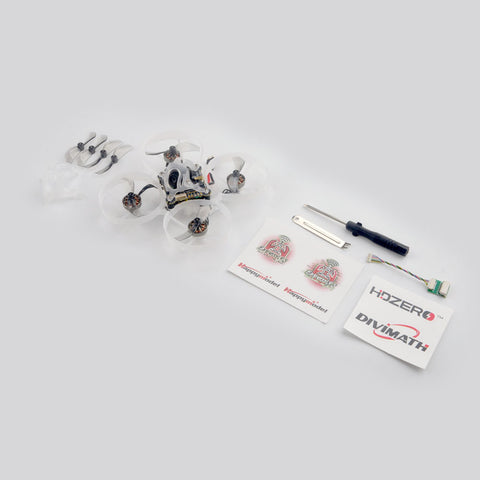

    PACKAGE INCLUDES:

    • 1x Happymodel Moblite7 HDZero 1S 75mm Brushless HD FPV Whoop Drone BNF SPI ELRS 2.4G
    • 1x Moblite7 Spare Canopy
    • 1x Gemfan 1610 propeller Set (4cw+4ccw)
    • 1x Propeller disassemble tool
    • 1x Screwdriver
