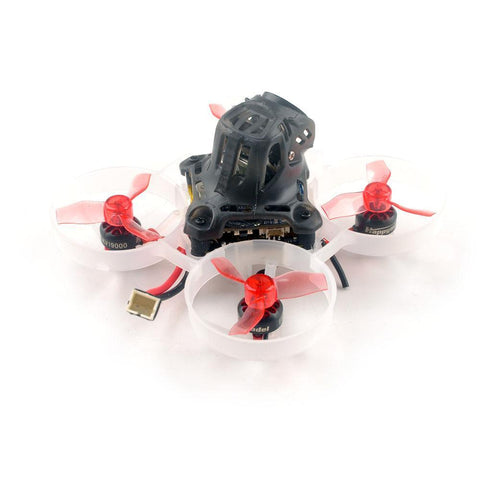

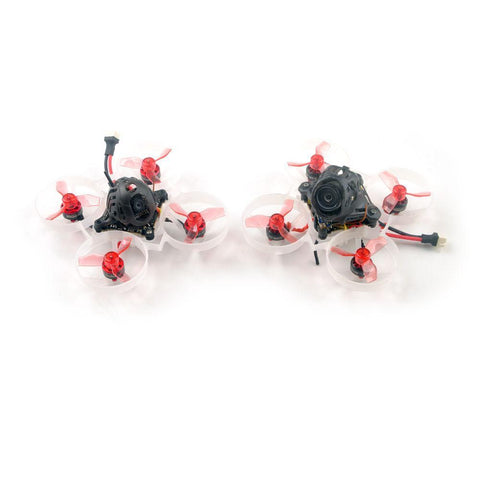

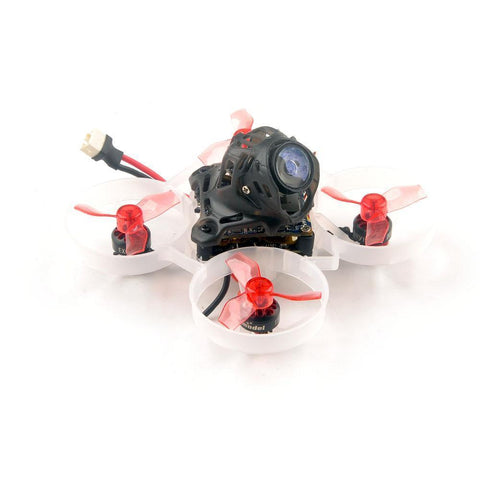

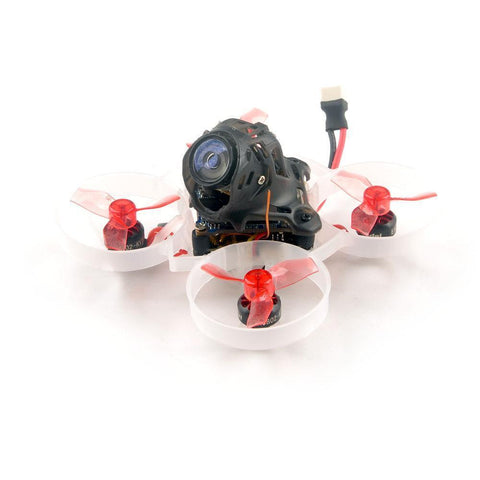

Happymodel Mobula6 HD 1S 65mm Brushless FPV Drone

  • $199.95


Like us? Please hit the Like button below:)


Product Description:

Features:

AIO 4IN1 Crazybee F4 Lite flight controller built-in 5.8G VTX

Extreme light 1S 65mm Brushless HD whoop only 27g

Come with Runcam Split3-lite 1080P HD DVR

Smooth and agile

Compatible for 1S Lipo/LIHV

Camera Angle adjustable

Specifications:

Brand Name: Happymodel

Item Name: Mobula6 HD 1S 65mm Brushless whoop HD drone BNF version
Wheelbase: 65mm
Size: 80mm*80mm*40mm

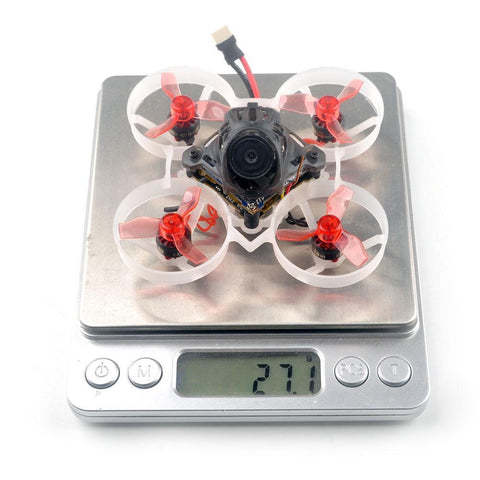

Weight: 27g

Receiver option:

Internal SPI Frsky version (Compatible with ACCST D8/D16, Recommend D8 mode)

Spare parts specifications:

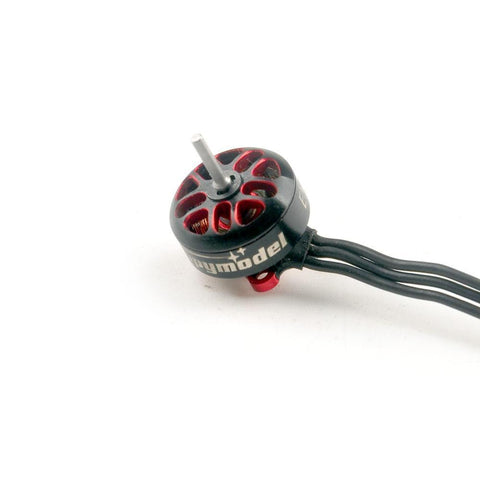

Motor

Mode: EX0802 19000KV
Configuration:9N12P
Stator Diameter:8mm
Stator Length:2mm
Shaft Diameter: Φ1mm
Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm

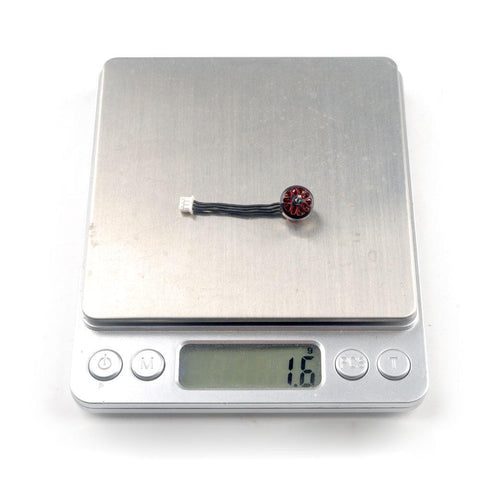

Weight(g):1.7g
No.of Cells(Lipo):1S only

Propellers

Gemfan 1219-3

Center Thickness:5mm

Prop Disk Diameter:31mm

Center Hole Inner diameter:1.0mm

Weight:0.28g

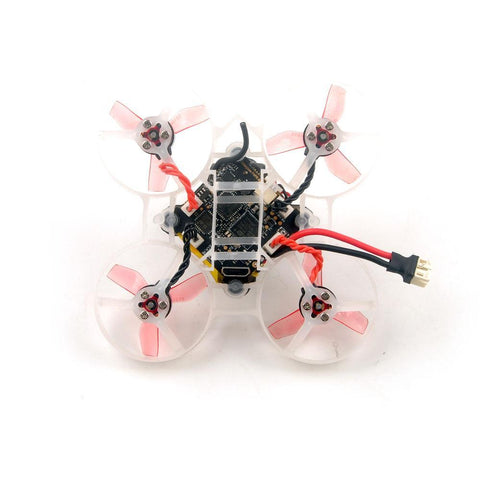

Flight controller

(Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR


MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI Frsky/Flysky receiver
Built-in 5V 1A BEC
Built-in voltage detection

Onboard 4in1 ESC

MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV

Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_7.HEX
Default protocol: DSHOT600

Onboard Frsky SPI D8 receiver Version

SPI BUS receiver Frsky D8 compatible
Compatible Non-EU transmitter D8 model

Channels: 8ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m

Onboard 5.8g VTX

Output power: 25mw
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race band

Smart audio ready

Runcam Nano3

Model: RunCam Split3-Lite

Field of View(FOV):Recording FOV 165°(FPV FOV: 165 ° @16:9, 130 ° @4:3)

Video Resolution:1080@60fps/1080@50fps/1080@30fps/720@60fps

Video File Format: MOV

Image Resolution:2 MP

TV Mode: NTSC (720*480)/PAL (720*576) Switchable

Interface: JST 1.25mm / UART and SH 1.0mm

Max Micro SD Card Supported         64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II/UHS-III)

Hole Distance of Installation: 25.5*25.5mm

PCB Size: 29*29mm

Lens Module Size: 14*14mm

Lens Specs: M9

Power Input: DC 5-20V(Non-direct power supply from the battery. Powered directly with the battery will generate surges and burn the camera.)

Working Current: 450mA @5V

Lipo Battery

Capacity:250mAh
Voltage:3.8v
Continuous Discharge Rate: 30C
Size: 55mmx12mmx7mm
Weight: 6.5g

Connector: PH2.0

Package includes:

Item Name

Qty

Mobula6 1S 65mm whoop Drone Frame

1

SPI Receiver Option1: Crazybee F4 Lite FC built-in Frsky SPI D8 RX

1

EX0802 KV19000 brushless motor

4

Gemfan 1219-3 Propellers(4cw+4ccw)

1

Runcam Split3-lite 1080P HD Camera +DVR

1

5.8G 25mw 40ch VTX (Flight controller built-in)

1

1S 250mah 30C LiHV Battery

4

1S Lipo/LIHV USB Charger

1

Propeller disassemble tool

1
