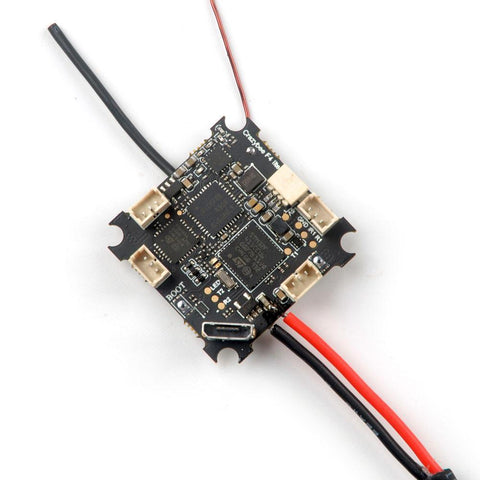

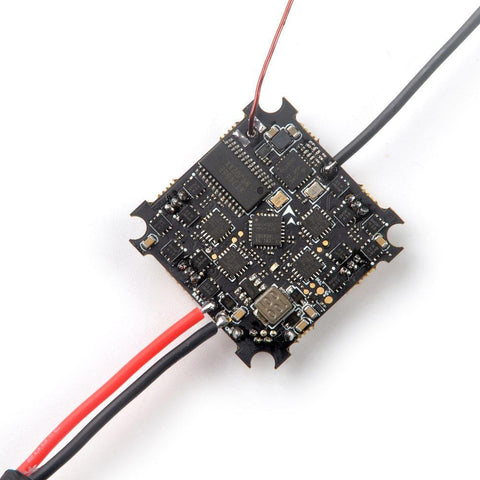

HappyModel Crazybee F4 Lite 1S Flight Controller AIO Mobula6 FrSky Receiver

  • $79.95
(Ex GST: $72.68)



HappyModel Crazybee F4 Lite 1S Flight Controller AIO Mobula6 FrSky Receiver

Specification:

Brand Name: Happymodel
Item Name:  Crazybee F4 Lite 1S Flight Controller AIO ESC Receiver & 25mW VTX

Optional Version: Frsky Receiver ( Compatible with ACCST D8/D16, Recommend D8 mode)
                             Flysky Receiver ( Compatible with AFHDS and AFHDS-2A Flysky transmitter)

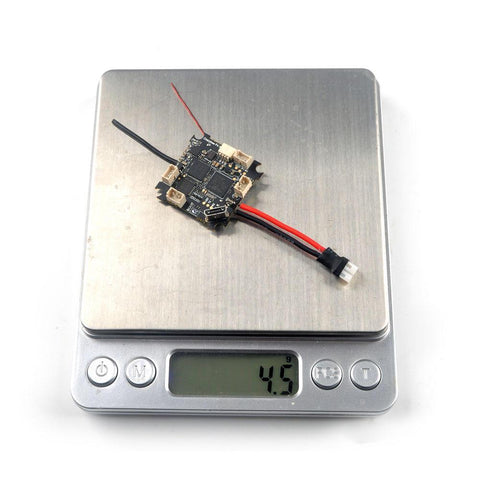

Net Weight: 4.5g
Application: Original Flight Controller Board for Mobula6 FPV Racing Drone

Crazybee F4 LiteFlight Controller
Built-in ESC & Receiver & VTX
Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR
(Flysky SPI RX version) CRAZYBEE F4 Lite Flysky version Firmware target: CrazybeeF4FS
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI Frsky/Flysky receiver
Built-in 5V 1A BEC
Built-in voltage detection
Onboard Frsky Receiver Version
SPI BUS receiver Frsky D8 compatible
Compatible Non EU transmitter D8 model
- Frsky_x_lbt Support EU LBT Radio Transmitter
Channels: 8ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m
Onboard Flysky Receiver Version
SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 100~200m
Failsafe support
Onboard 5A BLheli_S 4in1 ESC
MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_7.HEX
Default protocol: DSHOT600
Onboard 5.8G 40CH 25mW VTX Output power: 25mw
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race band

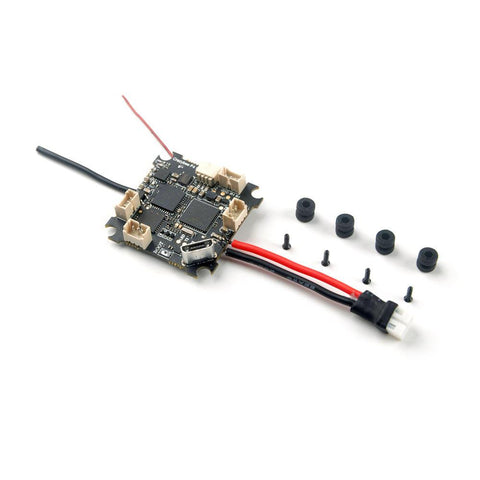

Package Included:

1x Crazybee F4 Lite Flight Controller
4x Anti-Vibration Ball
4x Screws
