HEE WING FX-405 Flight Controller With GPS & PMU

  • $179.99
(Ex GST: $163.63)

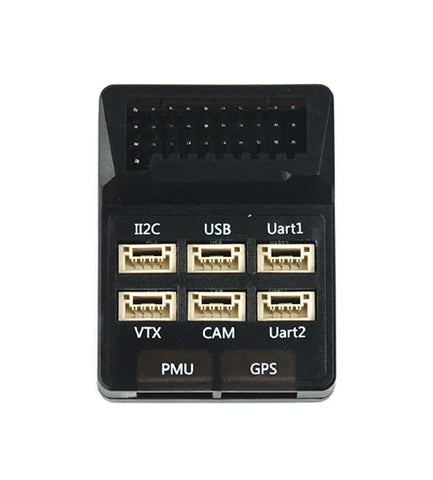

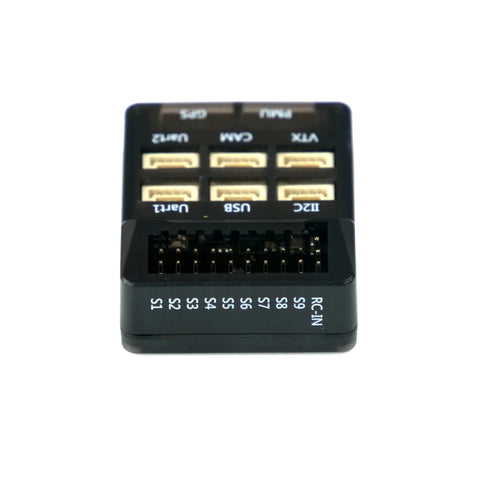

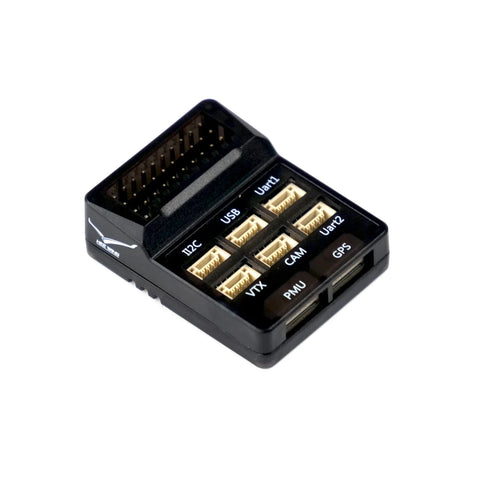

HEE WING FX-405 Flight Controller With GPS & PMU

Finally! The super small but powerful and VTOL capable flight controller from Heewing is available for purchase separately!

Specification

  • STM32F405 Microcontroller
  • ICM42688 IMU
  • SLP06 barometer
  • Dataflash (V2 board only)
  • MAX7456 OSD
  • 4 UARTs
  • 9 PWM outputs
  • FC Input Voltage : 5V
  • PMU Input Voltage : 7.4V to 22.2V
  • FC Dimension : 44.3mm (L) x 34.4mm (W) x 13.7mm (H)
  • FC Weight : 14.2gram (without PMU & wires)

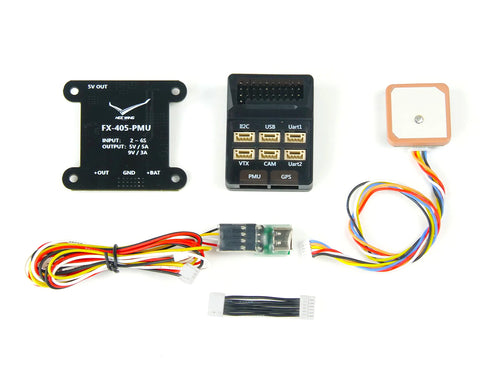

What's included

  • FX-405 Flight Controller
  • 2-6S PMU
  • BN-250Q GPS with compass
  • USB Adapter
  • Cables



Note

  • comes pre-loaded with QLoiter/VTOL parameters for the T1 VTOL
  • supports both Analog and Digital FPV
  • supports SBUS, PPM, IBUS, ELRS, CRSF RC protocol



Download
