HGLRC Zeus35 F4 3-6S Flight Control AIO 35A BLS 4In1 ESC 20X20mm

  • $89.95


Like us? Please hit the Like button below:)


Product Description:

HGLRC Zeus35 F4 3-6S Flight Control AIO 35A BLS 4in1 ESC 20X20mm



How to use GPS on FD411 FC and Zeus35 AIO board with receiver and VTX by using softserial

Note: the black version only supports M2 screws, and can only be shipped to the US.

The red version supports both M2 and M3 screws, and can be shipped worldwide.



Specifications:

Usage: for 100mm-250mm Frame Kit
FC Firmware: BF HGLRCF411(HGLR)
Installing Hole: 20X20mm.M2/M3

F411 FC+35A BLS ESC

Input Voltage: 3-6S
FC Firmware: BF HGLRCF411(HGLR)
ESC Firmware: BLS
Installing Hole: 20x20mm/M2/M3

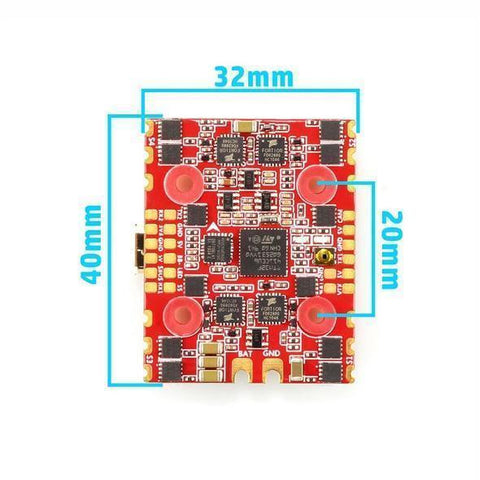

Dimensioms: 40x32mm

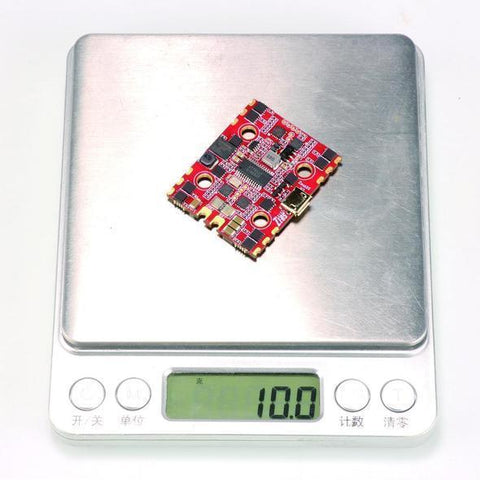

Weight: 10g

F411 Flight Controller

CPU: STM32F411
MPU: MPU6000
OSD: Support
BEC: 5V/2A
LED: Support
BlackBox: 16M
UARTS: 2
UART1: uses the VTX/DJI
UART2: uses the Receiver

35A BLS 4in1 ESC

Current Sensor: Support
Constant Current: 35A
Peak Current: 40A(10s)

Package Included:

1x Zeus35 AIO Flight Controller


Recommended Parts: ( Not Included )
Motor:1408/1407/1306/1106
Propeller:2-5 Inch

See manual here
