iFlight BLITZ Mini M10 GPS V2 Module

  • $64.50
  • Save $2.49
(Ex GST: $58.64)

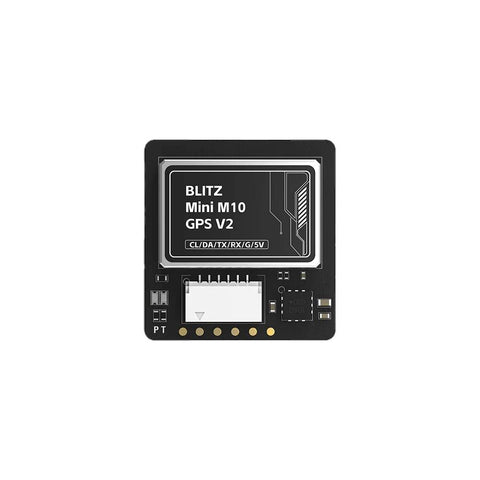

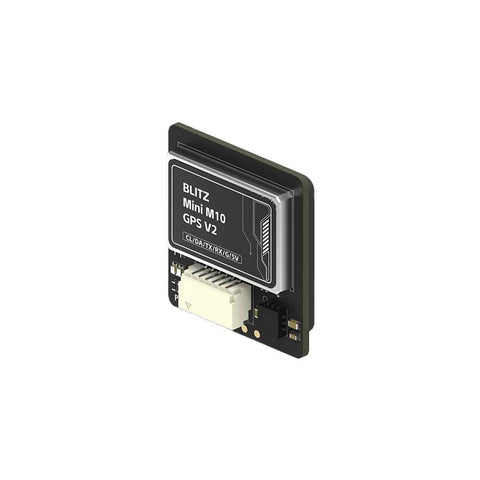

iFlight BLITZ Mini M10 GPS V2 Module

The newly upgraded iFlight BLITZ Mini M10 GPS V2 has arrived, offering faster and more stable satellite search with the 10th generation chipset. This technological advancement provides users with a more reliable and efficient GPS experience. Additionally, this GPS also has a built-in compass.

Features

  • Onboard LNA (Low Noise Amplifier), RF filter, and TCXO (temperature-compensated crystal oscillator).
  • 18.2x18.2mm GPS ceramic antenna, low power consumption, strong signal, lightweight.
  • Built-in farad capacitor for faster hot start.
  • Compass module QMC5883L integrated.
  • 10 Hz Refresh rate.
  • UBLOX M10 chip.
  • Built-in Flash.

Specifications

  • Baud Rate: 9600bps-460800bps (Default - 115200bps)
  • GNSS: GPS+SBAS+Galileo+QZSS+GLONASS
  • GPS patch antenna size: 18.2 x 18.2 x 4 mm
  • Compass pin definition: SDA/SCL
  • Total dimensions: 20 x 21 x 8 mm
  • GPS pin definition: RX/TX UART
  • Sensitivity: Tracking: -167dBm
  • Compass module: QMC5883L
  • Maximum acceleration: ≤ 4G
  • Maximum height: 80000m
  • Maximum speed: 500 m/s
  • Speed accuracy: 0.05 m/s
  • Input Voltage: 3.3-5.5 V
  • Refresh Rate: 10 Hz
  • Cold start: 27s
  • Hot start: 1s
  • Weight: 8g

Includes

  • 1x iFlight BLITZ Mini M10 GPS V2
  • 1x Cable set
