Product Description:

iFlight Chimera5 Analog LR 5 Inch GPS FPV Drone PNP

PRODUCT DESCRIPTION

Introducing our first ultra-light Long Range 5 inch BNF for every terrain and beyond. Our newest SucceX-E mini F7 hardware on board coupled with our XING 2005 motors. If our iFlight Chimera4 is too small and light to fight against stronger winds, here you go. Get flight times above 25min using at least Li-On 4S 3000mAh packs. Go crazy and strap a Li-On 4S pack on and go even further, depending on capacity and weight!

GPS Rescue ready for easy recovery in case of signal loss, or even if you've been surfing those mountains and suddenly can't find the way back home. Betaflight OSD pre-setup GPS elements will show you the way! Custom iFlight 150mm LR antenna for best signal coverage even at long distances.


Expected flight times (cruising, no freestyle, average speed):

Without GoPro: 4S 850mAh, 11-13min // 4S 1300mAh, 14-15min //  4S 3000mAh Lion pack, 22-24min

With naked GoPro: 4S 850mAh, 9-11min // 4S 1300mAh, 12-13min // 4S 3000mAh Lion pack, 20-22min

With full GoPro Hero8: 4S 850mAh, 3-5min // 4S 1300mAh, 4-6min

HIGHLIGHTS:

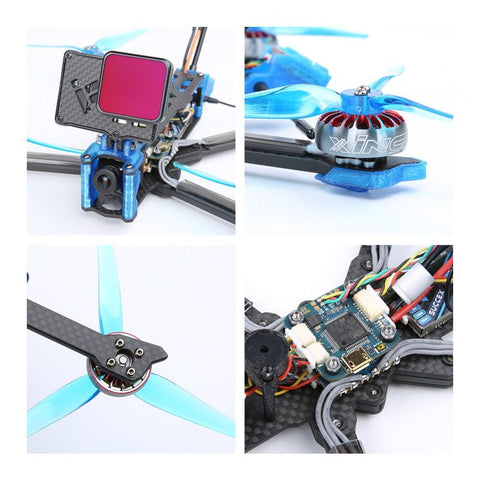

-Mini long-range quad

-XING 2005 2550KV Ultralight motors (Prop mount pattern currently only compatible with iFlight Nazgul Props)

-Deadcat geometry frame (higher efficiency and no props in view)

-GPS pre-installed for more safety at distance

-SucceX-E mini F7 Stack

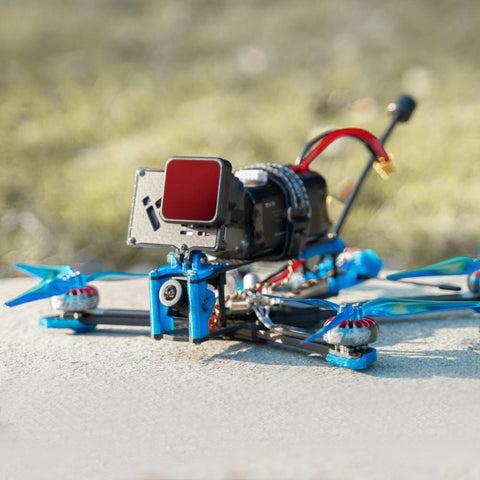

-Naked GoPro ready

-360° TPU protection, Vista cam protection, and antenna mounts

-Caddx.us Ratel V2 2.1mm

PRE-TUNED & PRE-SETUP:

-Don't worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!

-To restore lost tunes or updates, please check our linked article on "Firmware/Factory Dumps"

-Angle-Mode (self-balancing level mode) is enabled by default to make sure your first flight doesn't end in a mess!

-Please check our linked article on "How to disable Angle-Mode, activate Acro-Mode"

-GPS Rescue is OFF by default to prevent from unwanted or unexpected drone behavior.

-Please check our linked article on "GPS Rescue Mode // Setup"


FRAME // :Chimera5

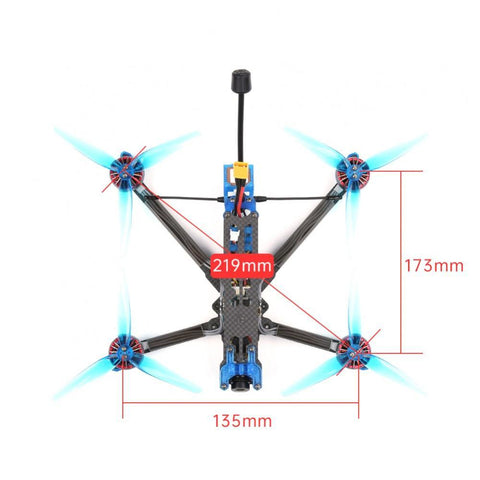

-Wheelbase: 219mm

-Main body dimension: 135*173mm

-Bottom to top distance: 28mm

-Arm thickness: 4mm

-Bottom plate thickness: 2mm

-Top plate thickness: 2mm

-Middle Plate thickness: 2.5mm

-TPU Camera plate

-FC: 25.5*25.5mm/20*20mm

-FPV Cam: 19mm Micro / 20mm


ELECTRONICS // SucceX-E mini F7 Stack (35A 4-in-1 ESC)

Specification:

  • MCU:  STM32F22RET6 216 MHz
  • Gyro: MPU6000
  • Blackbox: 8MB
  • BEC output: 5V 2.5A
  • Barometer: BMP280(I2C)
  • Connector: Micro-USB
  • OSD: IFLIGHT OSD (AT7456E)
  • FC Firmware:IFLIGHT_SUCCEX_E_F7 4.2.0
  • Mounting pattern: 20*20mm φ3 mounting
  • Dimensions: 27*27mm
  • Weight: 4.9g



ESC // SucceX-E Mini 35A

Specification:

  • MCU: BB21 F16G
  • Current Sensor: Yes
  • Input: 2-6S LIPO
  • Current scale: 200
  • Constant: 35A / Burst: 40A
  • BLHeli: BLHeliS
  • Telemetry: no
  • Target: G-H-30
  • Mounting pattern: 20*20mm/Φ3mm
  • Dimensions: 31*30mm (including the power pads)



Chimera5 DC Analog BNF Included Components and Parts

  • Prebuilt and tested Quadcopter
  • 1x Chimera5 DC Frame
  • 1x Caddx.us Ratel V2 2.1mm
  • 1x Albatross RHCP mmcx 90° antenna
  • 2sets x Nazgul 5030 inch 3-blades (Set of 4 - Color may vary)
  • 1x 20*200mm Microfiber PU Leather Battery Strap (Color May Vary)
  • 1x 20*250mm Microfiber PU Leather Battery Strap (Color May Vary)
