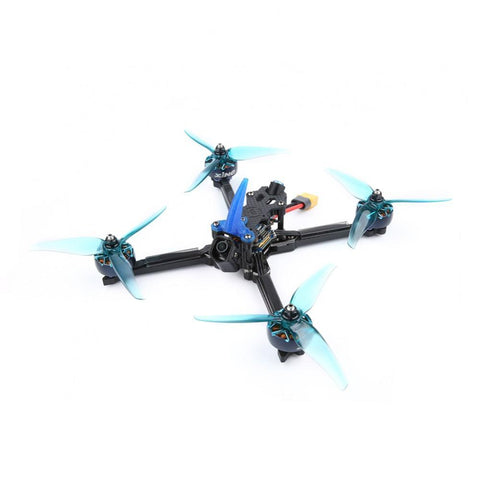

iFlight Mach R5 Analog 6S Racing FreeStyle FPV Drone BNF FrSky

  • $529.95


Like us? Please hit the Like button below:)


Product Description:

iFlight Mach R5 Analog 6S Racing FreeStyle FPV Drone BNF FrSky

PRODUCT DESCRIPTION

In response to our customer needs, this is our answer for all the racers in out there: The iFlight Mach R5 BNF!

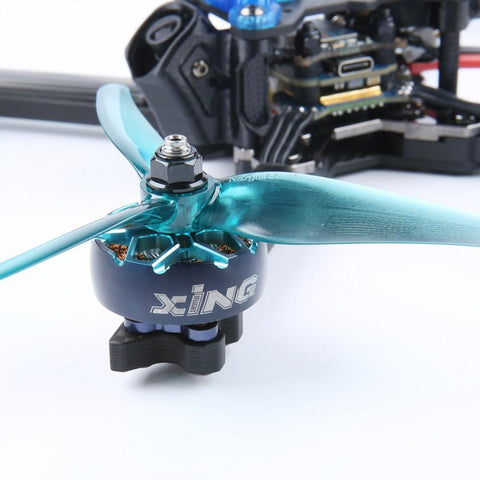

Equipped with XING2 2506 motors for more torque and efficiency as well as high speed and consistent lap times.
Quick-swap arm assembly for easy repair on your flying spot or race day.
Enhanced canopy design with low wind resistance for maximum speed and efficiency.

FEATURES:

  • Super durable design, 6mm arms and 7075 CNC middle plate
  • Super lightweight but superpower with our newest XING2 2506 motors


HIGHLIGHTS:

  • XING2 2506 1850KV motors
  • SucceX-D Mini F7 TwinG
  • SucceX Mini 55A
  • SucceX Mini Force 5.8GHz 600mW VTX Adjustable


Tips:

VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you're flying legal frequencies and use our prepared Betaflight VTX tables according to your region.


PRE-TUNED & PRE-SETUP:

-Don't worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!

-To restore lost tunes or updates, please check our linked article on "Firmware/Factory Dumps"

-Angle-Mode (self-balancing level mode) is enabled by default to make sure your first flight doesn't end in a mess!

-Please check our linked article on "How to disable Angle-Mode, activate Acro-Mode"

-GPS Rescue is OFF by default to prevent unwanted or unexpected drone behavior.

-Please check our linked article on "GPS Rescue Mode // Setup"

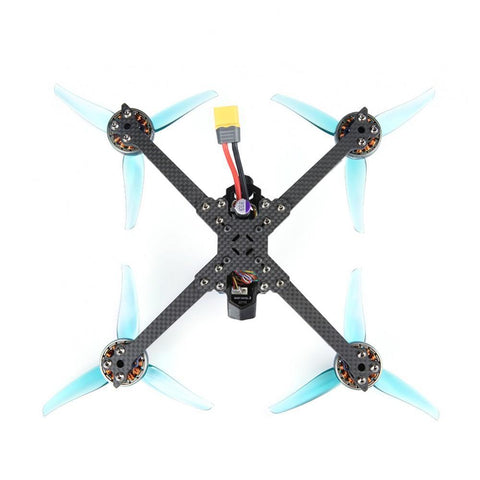

FRAME // :Mach R5

  • Wheelbase: 215mm
  • Main body dimension: 152*152mm
  • Arm thickness: 6mm
  • Bottom plate thickness: 3mm
  • Top plate thickness: 2.5mm
  • Middle Plate thickness: 2.5mm CNC 7075 aluminum alloy
  • TPU Camera plate
  • FC: 30.5*30.5/25.5*25.5mm/20*20mm
  • FPV Cam: 14mm /19mm Micro / 20mm


FC // SucceX-D Mini F7 2-6S TwinG

Specification:

  • MCU: STM32 F722
  • Gyro: MPU6000
  • Blackbox: 32MB
  • BEC output: 5V  2.5A/9V  2.5
  • Barometer: NO
  • Connector: Micro-USB
  • OSD: IFLIGHT OSD (AT7456E)
  • FC Firmware:IFLIGHT_F722_TWING
  • Mounting pattern: 20.5*20.5mm φ4mm
  • Dimensions: 29*29mm
  • Weight: 5.6g



ESC // SucceX Mini 55A 2-6S ESC

Specification:

  • Dimension: 31*29.5mm
  • Mounting Holes: 20*20/φ4mm
  • Input: 2-6S
  • Weight:10.8g
  • Constant: 55A / Burst: 60A
  • BLHeli: BLHeli 32
  • Telemetry: No
  • Current sensor: Yes
  • Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
  • Target:  iFlight-G071-4IN1



VTX // SucceX Mini Force 5.8GHz 600mW VTX Adjustable

Specification:

  • Power: PIT/25/200/400mW/600mW
  • Antenna interface: MMCX
  • VTX protocol : IRC Tramp
  • Output 40 channels
  • Size: 29*29mm
  • Mounting pattern: 20*20Φ3/25*25 mmΦ2
  • Weight: 4g



Mach R5 Analog Quad BNF Included Components and Parts

  • Prebuilt and tested Quadcopter
  • 1x Mach R5 Frame

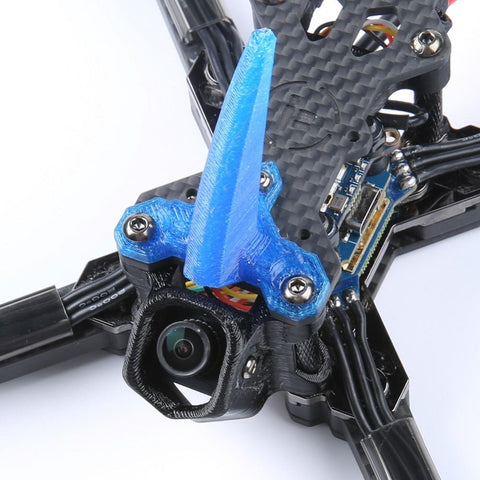

  • 1x RaceCam R1 Micro Camera
  • 1x Sigma RHCP Ipex/UFL 5.8g antenna
  • 2sets x Nazgul R5 3-blades (Set of 4 - Color may vary)
  • 1x 20*250mm Microfiber PU Leather Battery Strap (Color May Vary)



Important:

  • Our current frsky receivers default version in 2.XX, requires to use the same version of frsky transmitter.
  • If you have none frsky transmitter, please downgrade the version lower than 2.X.X, www.frsky-rc.com for more details.
