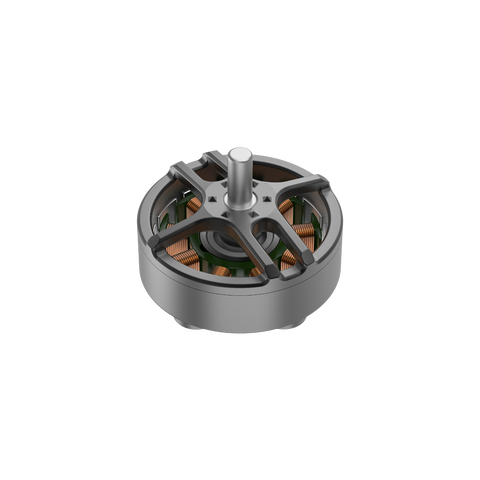

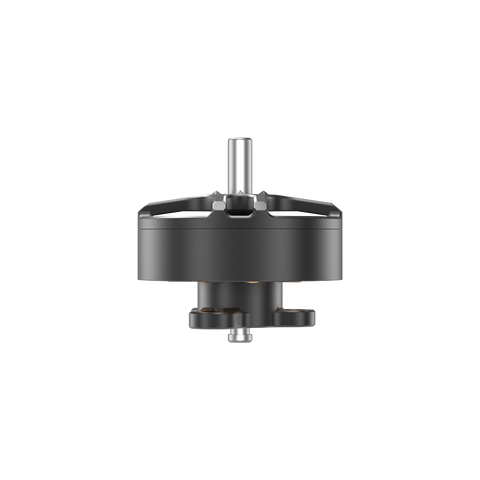

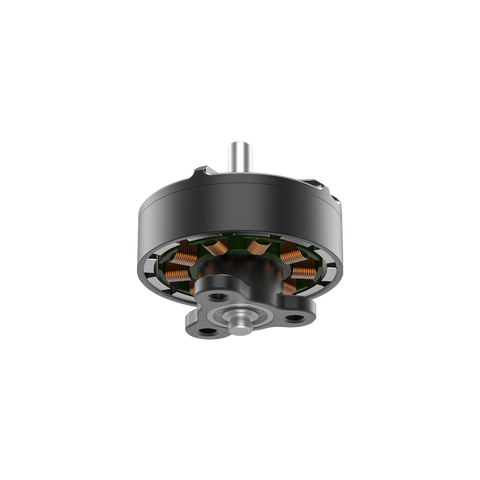

iFlight XING 1002 TinyWhoop FPV 1S Motor 22000KV

  • $19.99
  • Save $3.00
(Ex GST: $18.17)



iFlight XING 1002 TinyWhoop FPV Motor 22000KV

Specifications

  • Model: XING 1002 Black Motor
  • KV: 19000KV/22000KV
  • Weight(included wire): 2.4g
  • Dimension: φ12.5*8mm
  • Interphase Resistance: 0.086Ω/0.070Ω
  • Input Volts: 4V
  • Peak Current: 5.3A/ 7.8A
  • Max Watt: 19W/ 28W
  • Mounting Holes: 3*3 φ1.4mm
  • Rotor Specifications:  Segmented bell
  • Shaft Diameter: 1.5mm
  • Shaft Protruding Length: 3.5mm
  • Lead: 50mm/28AWG/SH1.25
  • Magnet: N52H Curved
  • Configuration: 9N12P
  • Bearing Type: NSK
  • Bearing Specification: φ4*φ2*1.5
  • Winding: Single Strand copper winding



Packing List

  • 1x XING 1002 FPV Motor 22000KV
  • 4x M1.4*4mm screws
