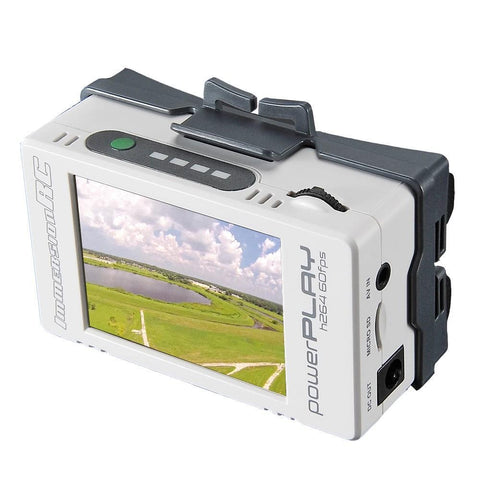

ImmersionRC PowerPlay FPV DVR H264 60FPS

  • $238.99
(Ex GST: $217.26)



ImmersionRC PowerPlay FPV DVR H264 60FPS

A DVR Created Purely for FPV

The internal DVR on FatShark Dominator Goggles is ‘ok’, but it doesn’t come close to the quality that PAL/NTSC can offer. Instead of the MJPEG compression used in the Dominator, the PowerPlay uses x264 (AVC) compression, with a much higher bit-rate. The 30fps frame rate of the Dominator is also doubled to 60fps, which is essential for capturing fluid race footage.

  • Powers FatShark Goggles (with power switch)
  • h264 Recording, at up to 60fps
  • Built-in 6cm LCD display, showing recording + playback
  • USB-C Charging
  •  Accessories for Head, or Pocket Mounting

Note: 18500 Batteries NOT Included.

The Power Part…

PowerPlay’s Power section is a pair of two 18500, Li-ion cells, that can power a Dominator HDO + rapidFIRE + DVR for up to 3 hours *.
To recharge, either use the built-in USB-C port for up to 1.5A charging, or simply pop out the cells, and replace them with a freshly charged set.
Larger capacity 2040mAh cells are available from most vape shops and are the same ones used in the FrSky X-Lite radios, so any decent FPV retailer will stock them.

18500 batteries no longer included.

Head Strap

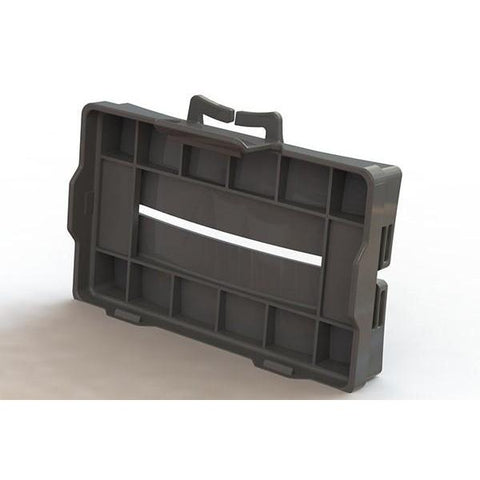

The PowerPlay ships with a head-mounting accessory pack. A quick-release clip mounts on the rear of the standard goggle head strap, and the new included top-strap ensures a comfortable fit.

A short ‘Y’ cable connects to power, A/V, and the fan connector.
The rear-mounted DVR has the advantage of letting people standing behind you see what you, the pilot, is seeing.
A longer version of the cable is also supplied, for those who would rather keep their battery/DVR in a pocket, and keep weight off of the head.

Show off your Micro/Whoop footage

Quads that are extremely lightweight do not want the extra weight burden of an HD camera system. High-quality SD recordings of these amazing indoor flights are therefore of interest. PowerPlay delivers this quality.


PRODUCT SPECIFICATIONS

  • Power: 2x 18500 Li-ion cells (without protection circuits)
  • Power Switch: Yes… powers both the DVR and the Goggles
  • Video File Format: h264 (AVC)
  • Video File Resolution: 720×576 (PAL), 720×480 (NTSC)
  • Video Data Rate: ~15Mbps (PAL), ~8Mbps (NTSC)
  • Black Flashy: None

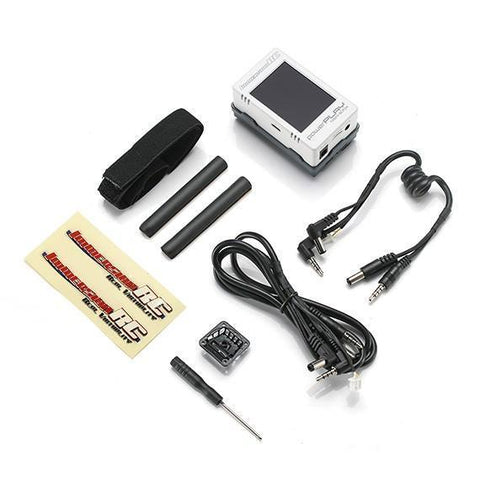

INCLUDED ACCESSORIES

  • 1x PowerPlay DVR
  • 1x Head Strap Clip
  • 1x Over-head Strap
  • 1x Replacement fan cover mounting kit w/Strap clip
  • 1x Short DC/AV ‘Y’ cable for head-mounting use (incl. Fan Power)
  • 1x Long DC/AV ‘Y’ cable for pocket use (incl. Fan Power)

Note: Batteries NOT Included
