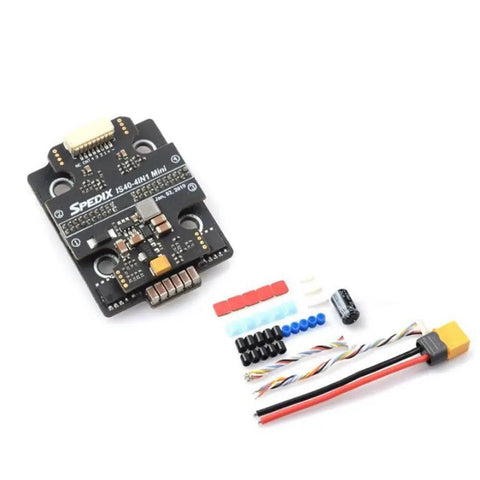

Spedix IS40 4IN1 ESC 40A 20x20 BLHeli_S

  • $72.95

Delivery Estimate:
Orders before 2pm dispatch from Sydney on same business day


Like us? Please hit the Like button below:)


Product Description:

Specifications

Brand: Spedix

Model: IS40 4 IN 1 Mini

Input:3-6 Cell LiPo

Continuous Current: 40A

Burst Current: 50A≤10S

BEC: No

Current Detection: YES

Firmware: BLHeli_S

Dimensions: 40x31x8mm

Mount Holes: 20x20mm

Weight:13.2g

Application: 200-300mm racing drone



Overview:

IS40 4IN1 MINI is an extremely reliable 20*20mm mount 6S 4IN1 ESC. Limited by the smaller size of 20*20mm ESC, Engineers have always been using 3mm mini MOSFET  used on 20*20mm ESCs.



This compromise made these ESCs vulnerable to the ever-growing demand of heat sinking capabilities and current/voltage tolerance of the FPV market. With our innovative design, by separating the control board and the power board, we successfully implemented full-size 5*6mm MOSFET onto this 20*20mm ESC.We are able to present you with a high performance mini 20*20mm ESC of extreme reliability and responsiveness.



Features:

  • Innovative double-deck design enables the implementation of full-size 5*6 MOSFET on 20*20mm mini 4IN1 ESC.

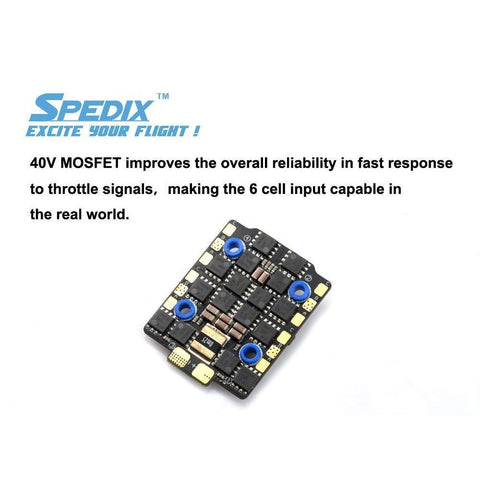

  • 40V MOSFET improves the overall reliability in fast response to throttle signals,making the 6 cell input capable in the real world

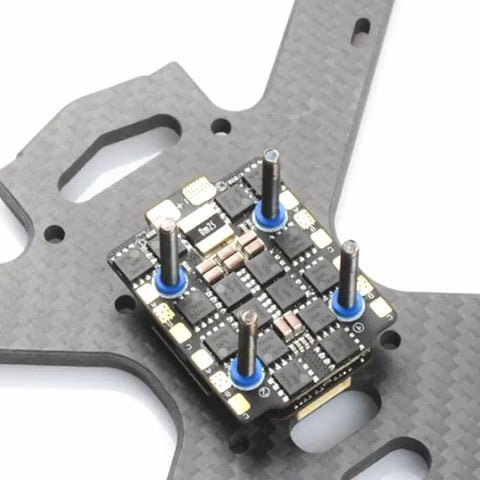

  • Silicone rings insulate standoffs, PCB, and parts.
  • The extremely small size makes mounting on smaller frames easier than ever.
