Jumper T12 Pro Hall Radio Controller OpenTX JP4IN1 Multi-Protocol Transmitter

  • $169.95


Like us? Please hit the Like button below:)


Product Description:

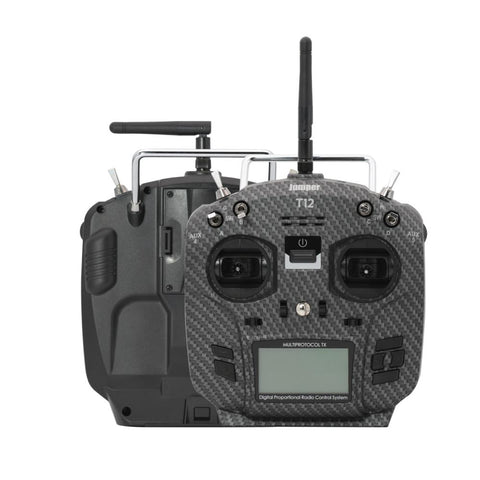

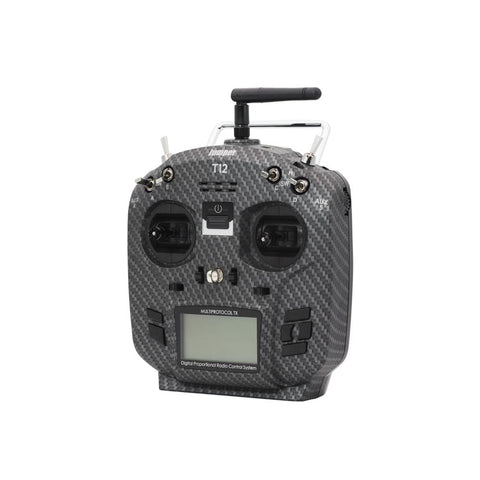

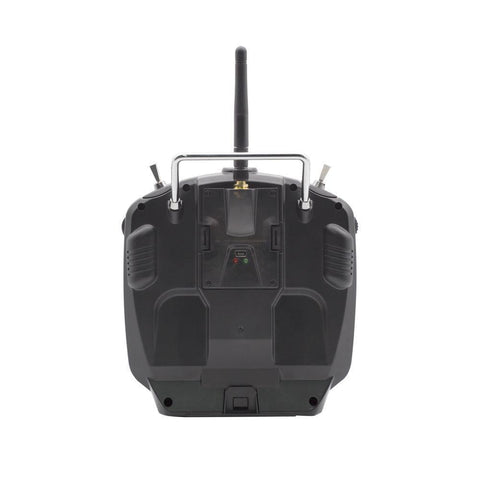

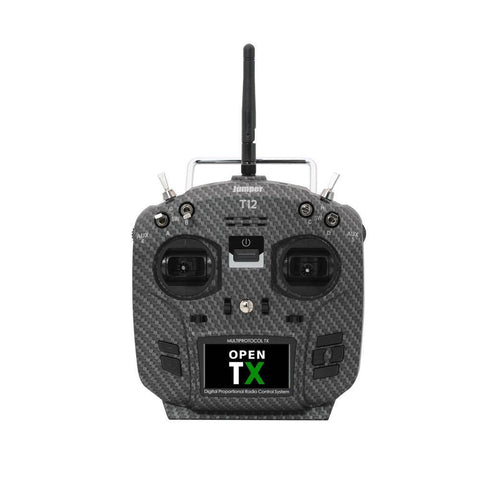

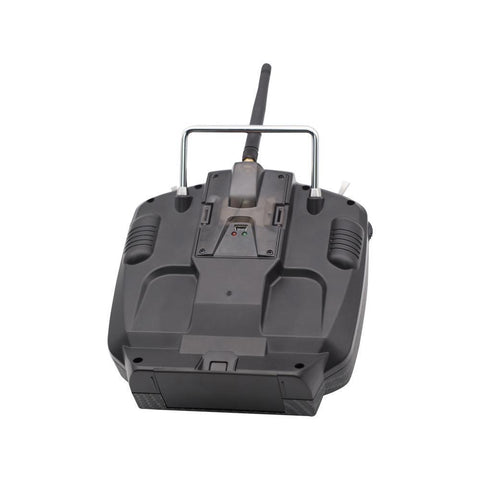

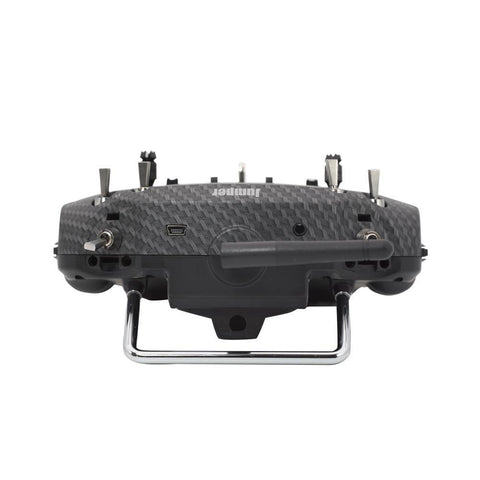

Jumper T12 Pro Hall Radio Controller OpenTX JP4IN1 Multi-Protocol Transmitter

The Jumper T12 Pro with Hall Sensor Gimbals Radio has a multi protocol internal module and runs on OpenTX making this a feature packed transmitter and budget friendly. This is the new version with mini USB charging port. They support and bind to a long list of receivers inc Frsky , Futaba, Spektrum, Flysky, Walkera and many more. And of course they support the Popular D8 and D16 mode. It also has voice support , full OpenTX support and a nice quality build finish all in all making this a very good choice for FPV, Freestyle and Fixed wing pilots.

TBS Crossfire Friendly and Compatible

T12 Pro does indeed support Crossfire and in CRSF mode with LUA script support and most importantly WITHOUT any hardware modification for end users. If your looking for the most compact, most affordable and most EPIC Crossfire compatible TX in the market today look no further than the Jumper T12. Jumper is committed to supporting OPEN hardware module platforms and will never try to force customers on to proprietary equipment.
yma, ASSAN and most other Chinese models



Goodies included

The T12 Pro comes standard with a neck strap and 18650 battery tray. The T12 Pro can also be powered with any LiPO or LiFE battery of a compatible size meaning users do not need to source their own uncommon sized Li-ion round cells or a round cell charger.



Seamless Intergration

The T12 Pro, offers seamless intergration between OpenTX and module meaning protocals can be accessed and selected directly from the software GUI. Crossfire users can setup their equipment via LUA scripts.



Jumper JP4-in-1 Internal Module

The Jumper JP4IN1 Module features the CC2500, NRF24L01, A7105 and CYRF6936 RF Chip modules all integrated on one board. This module can convert standard PPM signals form module equipped radios in to the RF protocols used by most radios in the market today (See RF Chip data below). This module is plug and play with module equipped radios in the FrSKY series and requires no complex wiring or “hacking” to get running. The module is a great way to improve the enjoyment of your flying experience, using a better radio such as the FrSKY Taranis series rather than the low grade radios commonly included with most kits offers an night and day difference in performance. The Jumper JP4IN1 module is also upgradable via USB input



Feature:

  • DSM2/X, FrSKY, SFHSS, FlySky, FlySky AFHDS2A, Hubsan and more OpenTX firmware Multi-protocol transmitter internal module with TBS CRSF support
  • JR/FrSKY compatible module bay on rear side.
  • USB online firmware upgrade
  • Ultra-low power consumption, longer battery life
  • Up to 16 channels of output (depending on the receiver)
  • Open Source Firmware, all channels are fully programmable
  • Multilingual menu
  • Wide voltage input (2s lipo recommended)
  • Vibration reminder function
  • Support telemetry (depending on the receiver)
  • LUA Script support: Yes
  • Crossfire CSRF Compatible: Yes
  • Voice support: YES
  • Specs: Size: 158 * 150 * 58
  • Weight: 342g (without battery)
  • Working voltage: DC5-DC9V (factory with 2 * 18650 battery box, 2s Lipo recommended, batteries not included)

Get 18650 Battery here: Panasonic 18650 Battery

  • Firmware: OpenTX
  • Channels: up to 16 channels (depending on the receiver)
  • Display: Upgrade 2.4 inch LCD display, 128* 64 resolution
  • Gimbal Type: HALL Sensor
  • JR/FrSKY compatible module bay on rear side
  • Upgrade method: USB online upgrade
  • Simulator mode: 3.5mm standard ppm output or USB HID



RF Chip Data

  • Cypress Semiconductor CYRF6936: DSM/DSMX, Walkera Devo
  • Texas Instruments CC2500: FrSky, Futaba SFHSS
  • Amiccom A7105: FlySky, FlySky AFHDS2A, Hubsan
  • Nordic Semiconductor NRF24L01: HiSky, Syma, ASSAN and most other Chinese models

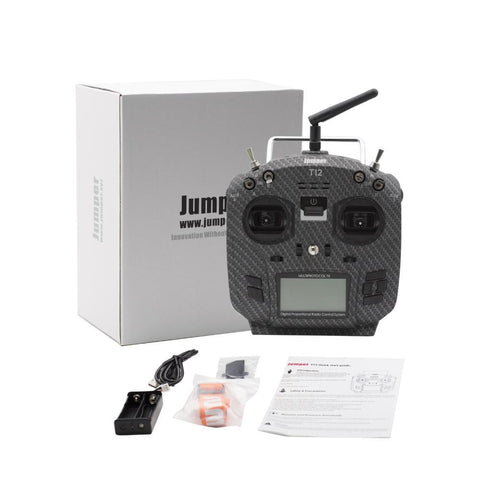

In the Box:

  • 1x Jumper T12 Pro Radio Transmitter, Internal RF 4-in-1 Module
  • 1x Antenna
  • 1x 18650 Battery Tray
  • 1x Neck Strap
  • 1x USB Cable
