Lumenier AXII HD Patch Antenna 5.8GHz Combo Set DJI FPV Digital Goggles RP-SMA LHCP

  • $129.95
(Ex GST: $118.14)



Lumenier AXII HD Patch Antenna 5.8GHz Combo Set DJI FPV Digital Goggles RP-SMA LHCP

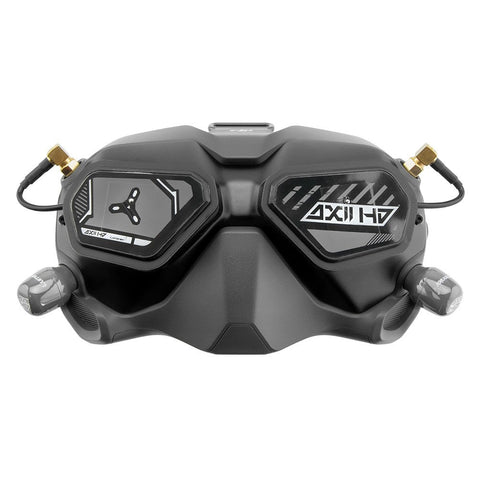

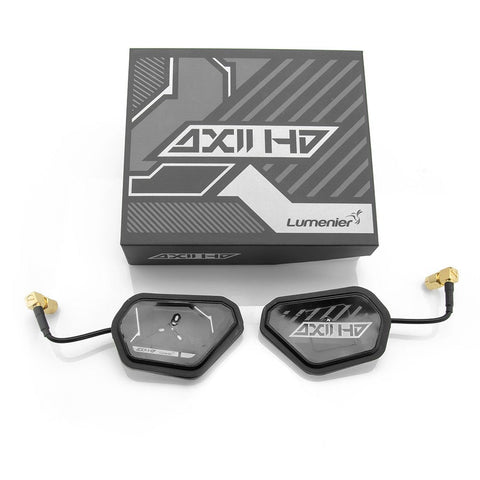

The Lumenier AXII HD 5.8GHz Antenna Combo Set for DJI Digital HD FPV Goggles. A combo set of circular polarized antennas specifically designed for the DJI Digital HD FPV Goggles. Designed to provide long range 5.8Ghz video reception in a compact form factor.

Finally, a high-quality set of antennas designed as a direct replacement and upgrade for your stock DJI antennas for the DJI Digital HD FPV Goggles. The AXII HD antennas were designed from the ground up to be a perfect match for the DJI goggles. The AXII HD antennas are form fitting, low profile, color matching, direct connect RP-SMA, and all this with improved performance.

The Lumenier AXII HD 5.8GHz Patch Antenna offers you the highest performance you can get from a high gain mini patch antenna designed for DJI Digital HD FPV.

The Lumenier AXII HD Patch has a high 8.2 dBiC gain for long range flying and excellent penetration through objects compared to standard omnidirectional FPV antennas. It also features an incredible 92% efficiency (most mini patch antennas are below 75%), which means you get amazing performance and the best picture in your video goggles. Lumenier, designed in collaboration with renowned FPV antenna designer Hugo of TrueRC, brings you the Lumenier AXII HD 5.8GHz Patch Antenna.

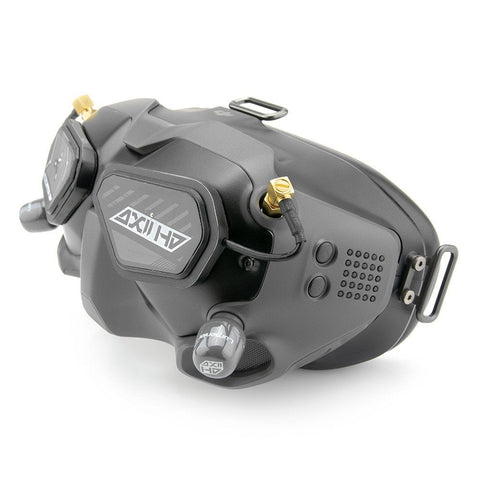

The Lumenier AXII HD Stubby has been based on the extremely popular AXII 2 Stubby antenna, but further customized to be a direct fit for the DJI HD Goggles. The AXII HD Stubby comes with a custom RP-SMA connector designed to directly and securely screw onto the DJI Goggles. No adapters needed! This makes for an ultra-compact and efficient setup since you don’t need to lose any dB with extra adapters.

SPECIFICATIONS

  • AXII HD Patch Antenna
  • Frequency: 5.8GHz
  • Bandwidth: 220 Mhz
  • Gain: 8.2 dBiC
  • VSWR: 1:1.1 - 1:1.3
  • Radiation Efficiency: 92%
  • Beam Width: 68° H. 68° V.
  • Polarization: (LHCP) Left Hand Circularly Polarized
  • Connector: RP-SMA (Fits DJI Goggles directly, not to be used on standard SMA)
  • Dimensions: 73mm x 35mm x 9mm (21mm with SMA)
  • Weight: 22g each
