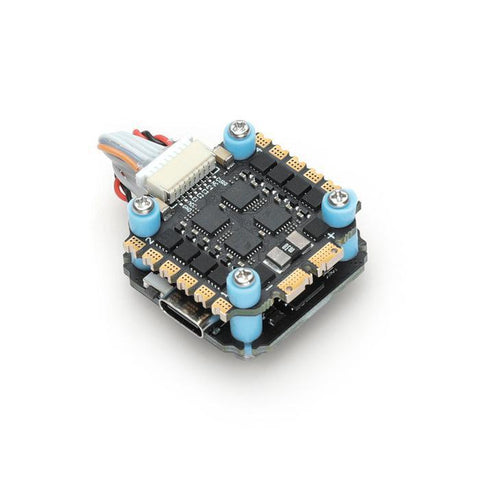

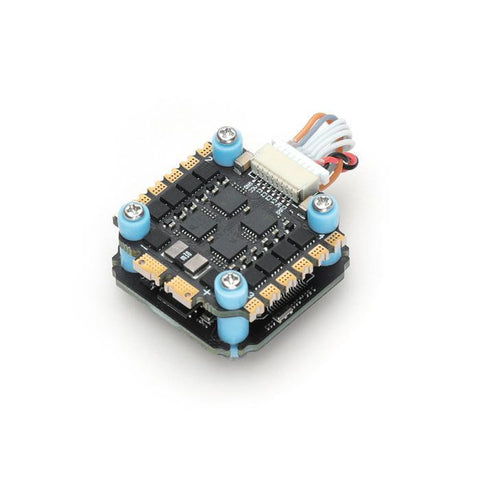

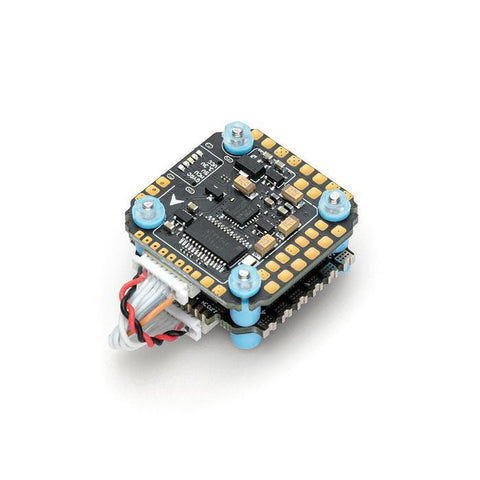

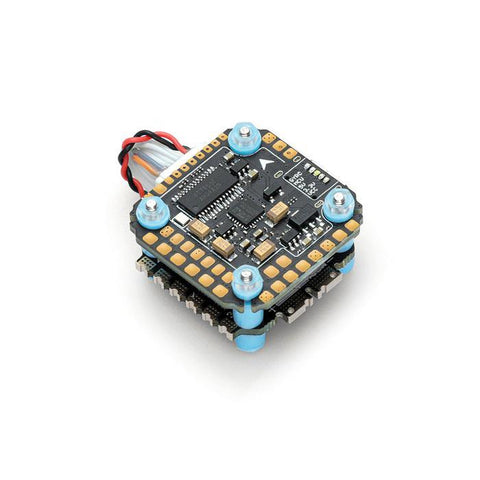

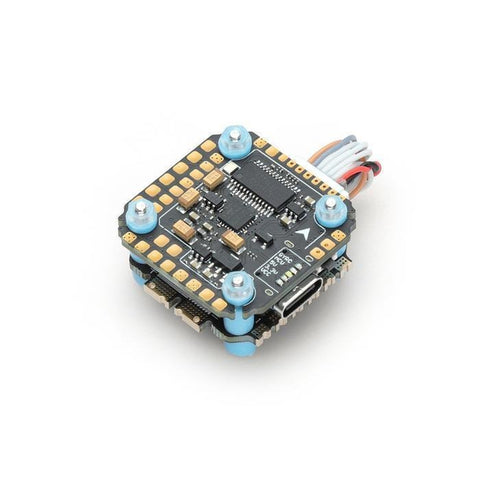

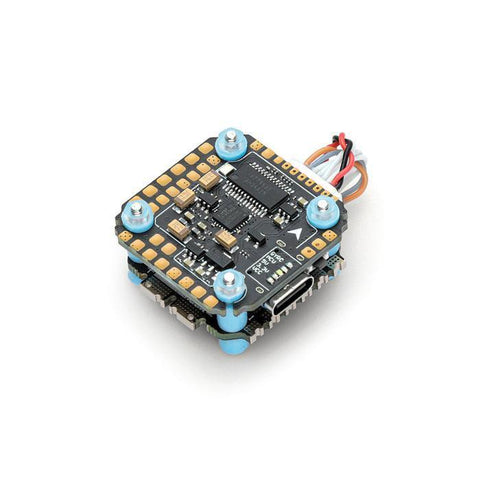

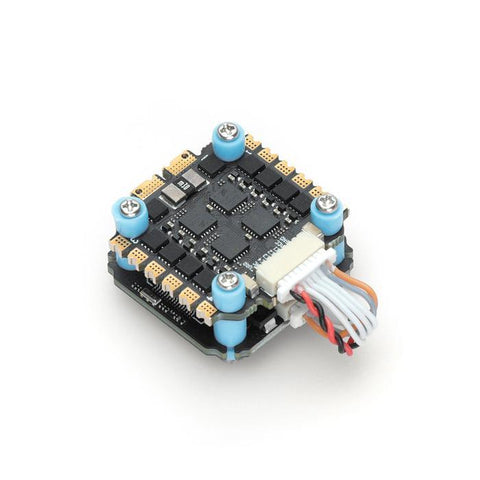

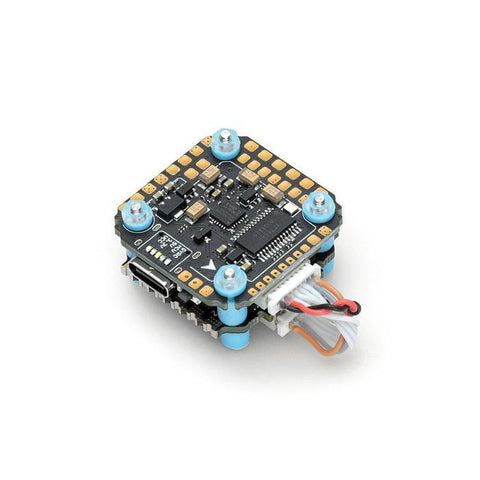

Diatone Mamba Stack Basic F405 Mini MK3.5 F4 Flight Controller + 40A 3-6S ESC 20x20mm

  • $81.86
  • Save $9.09


Like us? Please hit the Like button below:)


Product Description:

Diatone Mamba Stack Basic F405 Mini MK3.5 F4 Flight Controller + 40A 3-6S ESC 20x20mm

Fixed

  • Add I2C function
  • When you connect the USB, the receiver and OSD settings can be saved
  • Increase the pad area
  • LED signal selection (when Mamba Led sys avaiable)
  • BEC short circuit protection
  • TVS instant high voltage protection 30V

Update

  • F405 models support F.prot(Most)
  • Upgrade the anti-interference cable
  • Use Typec(Most)
  • The pad area of Mini flight controller (20×20) increased by 140%

Added

  • Add self-recovery insurance to the receiver's 5V power supply
  • Increase the camera VCC power supply pad
  • Standard flight controller (30.5×30.5) adds spare pad
  • Gyro uses an independent Low Dropout Regulator (Low Dropout Regulator) and reduces ripple interference

FC Specifications

  • MAMAB Basic F405MINI MK3.5
  • MCU: 168MHz STM32F405RGT6
  • GYRO: MPU6000
  • Barometer: Yes
  • OSD: Yes
  • Blackbox: 16M Flash Memory
  • Uarts: 5 Set
  • ESC Soft: Dshot300/600
  • Power Led: Yes
  • LED Controller: BF LED
  • RSSI: Yes
  • Buzz: Yes
  • Input: 2~6S Lipo (8.4~25.2V)
  • TVS Protection: Yes
  • BEC:3.3V 0.5A& 5V 2.5A
  • MOUNTING: 20mm, M2

ESC Specifications

  • MAMBA F40_BLS MINI
  • INPUT VOLTAGE: 2~6S Lipo (8.4V~25V)
  • CONTINUE CURRENT: 40A×4
  • BURST CURRENT: 45A (10S)
  • BEC: No
  • Target:BLHeli_S CH40
  • SOFT: Dshot300/600
  • TVS Protection: Yes
  • MOUNTING: 20mm, M3/M2

Supply :

  • High-Frequency 470uF/35V ×1
  • 8pin sh1.0 ×2
  • 16AWG 60mm ×2
  • AMASS Original XT60
