Diatone Mamba Stack F722 DJI Mini F7 Flight Controller + F40MINI Pro 40A 3-6S ESC 20x20mm

  • $139.95


Like us? Please hit the Like button below:)


Product Description:

Diatone Mamba Stack F722 DJI Mini F7 Flight Controller + F40MINI Pro 40A 3-6S ESC 20x20mm

Note:Because STM32F722 heat large , please leave at least 5mm interspace at both sides of the FC with nothing covered to make sure a good air circulation.

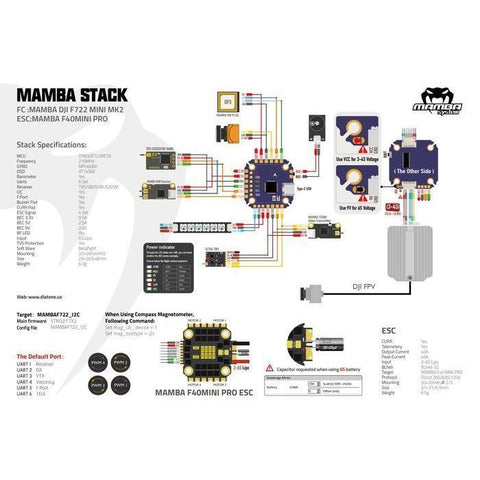

Diagram Link From Help Centre Link

FIRMWARE TARGET : MAMBA F722

The Stack can fit both M2/M3 Mounting hole Framekit (Adaptor inside)



FC Specifications


MCU: 216MHz STM32F722RET6 32BIT
IMU: MPU6000
Baro: No
OSD: BF OSD
Uarts: 6Set
ESC Soft: Dshot300/600/
LED: Blue&Orange for FC Status,,White 5V,Red 3.3V

WS2812 LED Control: BF LED Control
Smartaudio: Yes
RSSI: Yes
Buzz: Yes

Input: 2~6S Lipo (8.4~25V)
VTS Protection: Yes

UARTS:6 Ports
DJI PORT SUPPORT
BEC: 5V 2A&9V 1.5A


FC Firmware
BetaFlight
Target: MAMBA F722

Mounting: 20×20mm,Φ2
Dimensions: 30×36.5×13.5mm
Weight: 3.9g

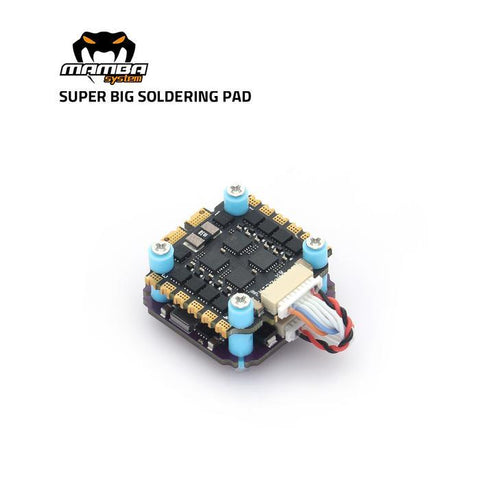

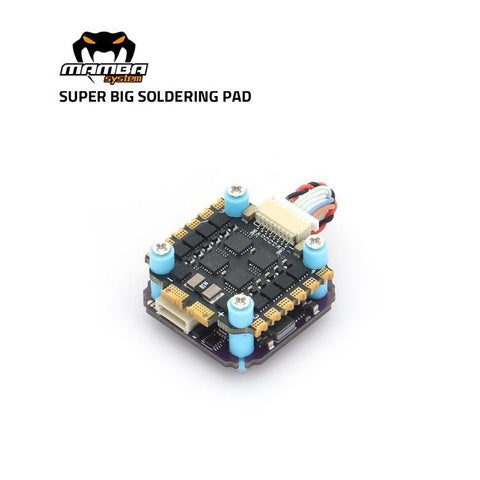

Mamba F40MINIPRO ESC

  • Item name:  Mamba F40MINI PRO ESC
  • Input voltage:  3-6S LIPO (12.5- 25V)
  • Burst Curr  :40X4 A
  • MAX:45A(10S)
  • BEC:  NO
  • Mounting Size: 20mm/M2/M3
  • Size:31×31×6.5mm
  • Mounting Hole: M2 M3
  • Weight: 7g

Package Included:

  • 1x Mamba F722 Mini DJI Betaflight Flight Controller
  • 1x Mamba F40 MINIPRO  6S HV ESC
