Product Description:

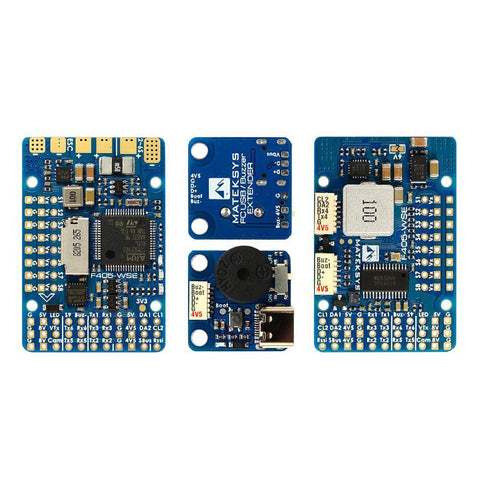

Matek F405-WSE Wing Flight Controller 30x30mm

FC Specifications

  • MCU: 168MHz STM32F405RGT6  1MB Flash
  • IMU: MPU6000 (SPI1)
  • Baro: DPS310 (I2C1)
  • OSD: AT7456E (SPI2)
  • Blackbox: MicroSD socket (SPI3)
  • VCP & 6x UARTs,
  • 1x Softserial_Tx option (TX2 pad, INAV)
  • 10x PWM outputs(S1~S9, LED)
  • 2x I2C
  • 3x ADC (voltage, current, RSSI)
  • 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
  • Built in inverter on UART2-RX for SBUS input
  • PPM/UART Shared: UART2-RX
  • 1x SH1.0_6pin connector (4V5/G/TX4/RX4/DA2/CL2) for GPS/compass
  • 1x SH1.0_6pin connector for external USB and buzzer
  • DJI FPV OSD: any spare UART
  • FrskyOSD: any spare UART



Power

  • 6~30V DC IN (2~6S LiPo)
  • 132A high-precision Current Sense (Scale 250)
  • PDB/Current sense resistor: 60A continuous, 132A burst.
  • BEC 5V 2A for FC & Peripherals
  • BEC Vx 5A for servos, 5V/ 6V option
  • BEC 8V 1.5A for VTX and camera
  • LDO 3.3V 200mA
  • Battery Voltage Sensor: 1k:10k



FC Firmware

  • INAV Target: MATEKF405SE
  • ArduPilot hwdef: MATEKF405WING



Physical

  • Dimensions: 44 x 29 x 10 mm
  • Mounting: 25 x 25mm, Φ2mm
  • Weight: 20g w/ bottom plate and USB/buzzer adapter



Including

  • 1x FC F405-WSE
  • 1x USB(Type-C)/Buzzer (Active) Adapter
  • 1x Bottom plate, 44 x 29mm
  • 2x JST-SH-6P to JST-SH-6P cables, 20cm
  • 5x Brass standoffs, M2*4mm
  • 10x screws, M2*3.5mm
  • Dupont 2.54 pins  (Board is shipped unsoldered)
