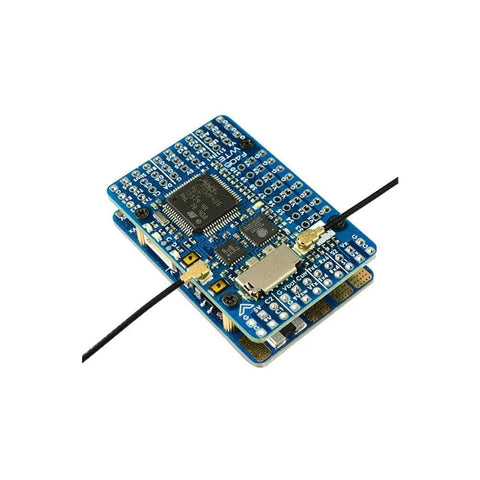

Matek F405-WTE Wing Flight Controller Integrated ELRS 2.4G Receiver

Matek has done it again with another top of the line Matek F405-WTE Wing Flight Controller w/ Integrated ESP32 & ELRS 2.4G RX . This time with an integrated ESP32 module that can be used as an ELRS Receiver of wifi telemetry! You won't find any better quality in the wing game.


Specifications

  • Input Voltage 2-6S
  • MCU: STM32F405RGT6, 168MHz , 1MB Flash
  • IMU: ICM42688-P
  • Baro: SPL06-001
  • OSD: AT7456E
  • Blackbox: MicroSD card slot
  • ESP WiFi Telemetry: Yes(MAVLink, 14dBm)
  • ExpressLRS 2.4G Receiver: Yes(CRSF protocol, Telemetry 12dBm)
  • UARTs: 6 + 1x Softserial_Tx option(INAV)
  • PWM outputs: 12
  • I2C: Yes
  • ADC: 4 (VBAT, Current, RSSI, Airspeed)
  • Dual Camera Inputs Switch: Yes
  • FC Firmware: ArduPilot: MatekF405-TE, INAV: MATEKF405TE_SD (not available in INAV configurator 4.x)
  • Mounting Pattern: 25x25mm M2
  • Dimensions: 44x29x12.7mm
  • Weight: 22g

BEC Specifications

BEC 5V output

  • Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
  • Continuous current: 2 Amps, Max.3A

BEC 9V /12V output

  • Designed for Video Transmitter, Camera, Gimbal ect.
  • Continuous current: 2 Amps, Max.3A
  • 12V option with Jumper pad
  • for stable 9V/12V output, input voltage should > output voltage +1V

BEC Vx output

  • Designed for Servos
  • Voltage adjustable, 5V Default, 6V or 7.2V via jumper
  • Continuous current: 8 Amps, Max.10A
  • for stable Vx output, input voltage should > Vx voltage +1V

BEC 3.3V output

  • Designed for Baro / Compass module and external 3.3V peripherals
  • Linear Regulator
  • Continuous current: 200mA

Includes

  • 1x Matek F405-WTE Wing Flight Controller w/ Integrated ESP32 & RX
  • 1x USB(Type-C)/Beep (Passive buzzer) Extender + 20cm JST-SH-6P to JST-SH-6P cable for USB extender.
  • 2x IPEX-MHF1 2.4G Antennas
  • 1x Rubycon ZLH 35V 470uF capacitor
  • 1x Set Dupont 2.54 pins
