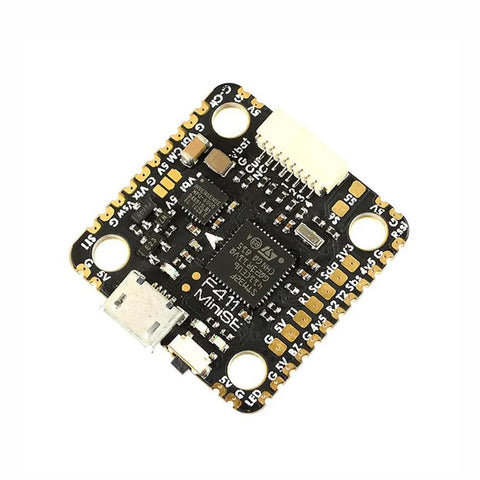

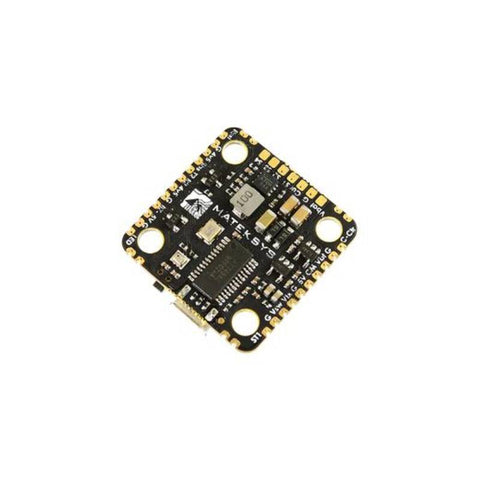

Matek F411 Mini SE F4 Flight Controller 20x20mm

  • $35.06
(Ex GST: $31.87)



Matek F411 Mini SE F4 Flight Controller 20x20mm

FC Specifications

  • MCU: 100MHz STM32F411CEU6
  • IMU: MPU6000 (SPI)
  • Baro: BMP280 (I2C)
  • OSD: AT7456E (SPI)
  • Blackbox: No
  • 2x Uarts
  • 2x Softserial-Tx
  • 6x PWM outputs (Dshot/Proshot/oneshot/multishot)
  • 1x I2C
  • 3x ADC (VBAT, Current, RSSI)
  • 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
  • 1x SH1.0_8pin connector (Vbat/G/Curr/R6/S1/S2/S3/S4)
  • TR/SA VTX control: Yes
  • Camera control: Yes
  • WS2812 Led control : Yes
  • Beeper output: Yes
  • RSSI: Yes
  • Filtered Vbat output power for VTX,  Switchable via AUX (modes tab-user1)
  • Convertible 20mm to 30.5mm mounting

Power

  • Input: 6~36V (2~8S LiPo)
  • BEC: 5V 2A cont. (Max.3A)
  • LDO 3.3V: Max.200mA
  • Battery Voltage Sensor: 1:10 (Scale 110)
  • No Current Sensor built-in, supports external current sensor of PDB/4in1



FC Firmware

  • INAV Target: MATEKF411SE
  • BF unified Target: MATEKF411SE(MTKS)



Physical

  • Mounting

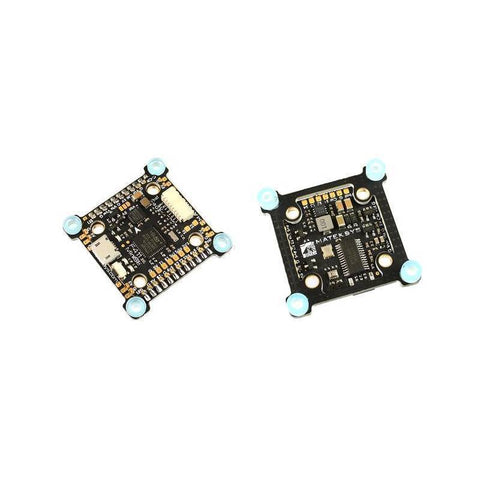

    • 20 x 20mm/Φ3mm with Silicon Grommets
    • 20 x 20mm/Φ2mm with Silicon & Brass Grommets

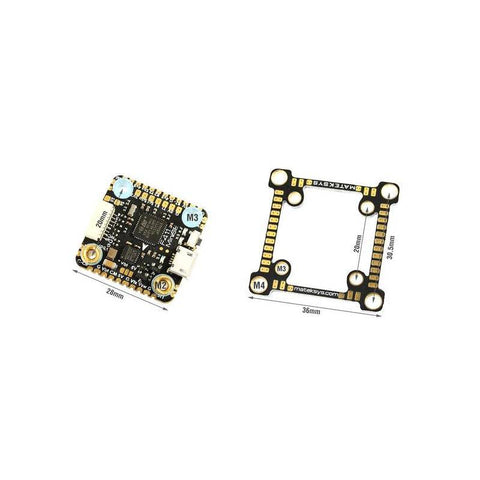

    • 30.5 x 30.5mm/Φ3mm with Conversion Plate and Silicon Grommets
  • Dimensions:  28 x 28 mm
  • Weight: 5g

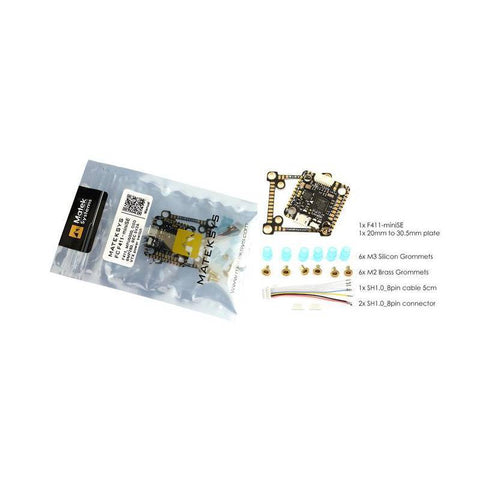

Including

  • 1x F411-miniSE
  • 1x 20mm to 30.5mm conversion plate
  • 6x Silicon grommets M4 to M3
  • 6x Brass grommets M3 to M2
  • 1x SH1.0_8pin cable 5cm
  • 2x SH1.0_8pin connectors
