Matek H743-WING V3 Flight Controller 30.5x30.5mm

  • $185.99
(Ex GST: $169.08)



Matek H743-WING V3 Flight Controller 30.5x30.5mm

UPDATE

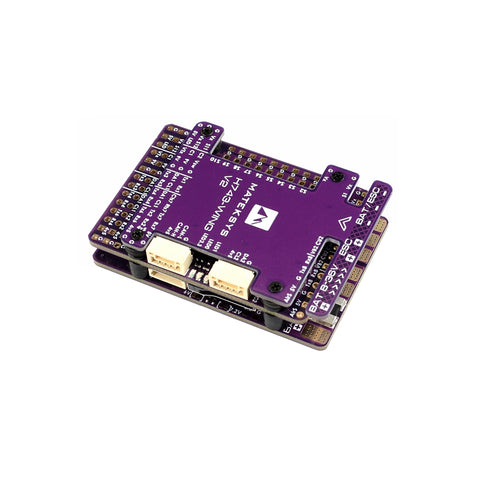

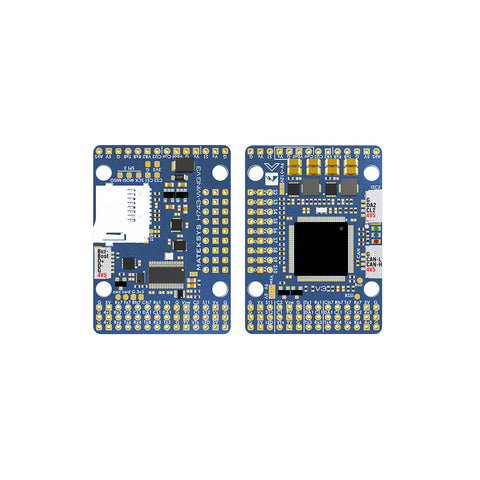

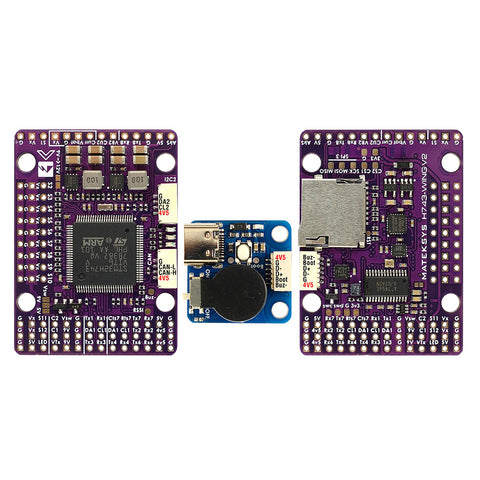

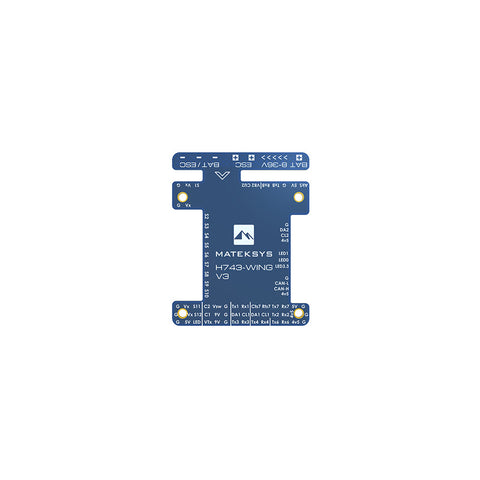

  • H743-WING-V2 (Purple PCB) has been updated to V3 (Blue PCB) since end Apr.2022.
  • IMU ICM42688-P(V3)+ICM42605 instead of MPU6000(V2)+ICM42605
  • Same functions, layout, wiring schematic & I/O mapping.
  • More details, pls read “Tips & Notes”

FC Specifications

  • MCU: STM32H743VIT6, 480MHz , 1MB RAM, 2MB Flash
  • IMU: MPU6000 (SPI1) & ICM42605 (SPI4)
  • Baro: Infineon DPS310 (I2C2)
  • OSD: AT7456E (SPI2)
  • Blackbox: MicroSD card slot (SDIO)
  • 7x Uarts (1,2,3,4,6,7,8) with built-in inversion.
  • 13x PWM outputs(including “LED” pad)
  • 2x I2C
  • 1x CAN
  • 6x ADC (VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2)
  • 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
  • 1x SPI3 breakout
  • USB/Beep Extender with Type-C(USB2.0)
  • Dual Camera Inputs switch
  • 5V/9V(12V) for Camera/VTX power switch
  • High-precision Current Sense (90A continuous, 220A peak)
  • Battery Voltage Sensor: 1K:10K (Scale 1100 in INAV,  BATT_VOLT_MULT 11.0 in ArduPilot)
  • ADC VB2 voltage divider: 1K:20K
  • ADC AirSpeed voltage divider: 20K:20K
  • Static power 160mA@5V



FC Firmware

  • ArduPilot(ChiBiOS): MATEKH743
  • INAV: MATEKH743

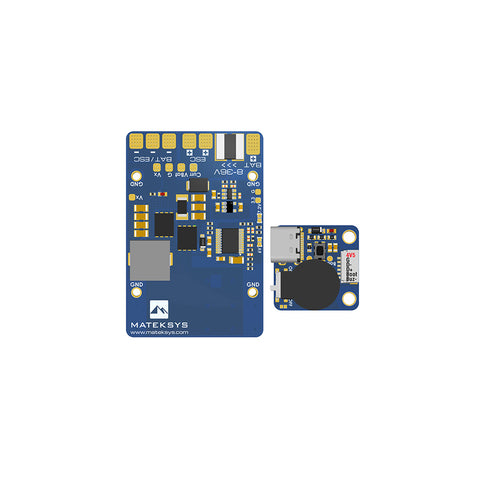

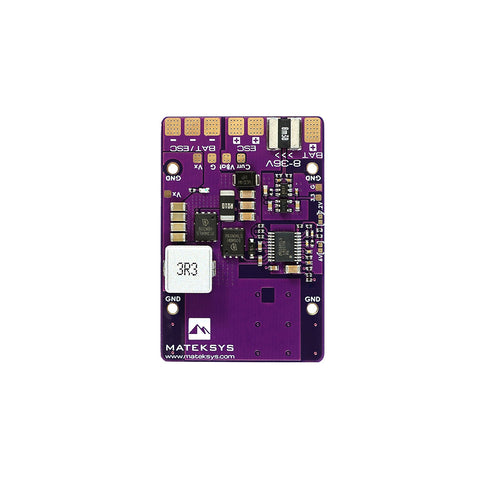

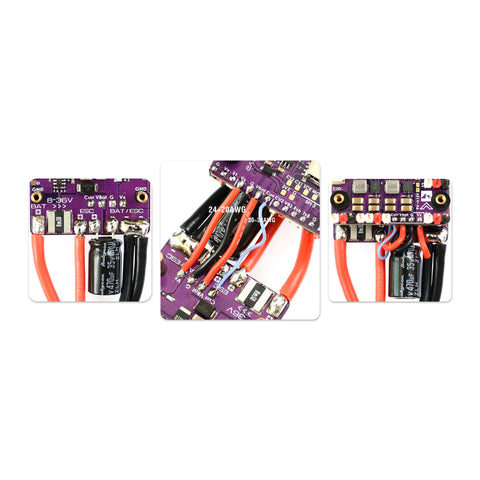

PDB

  • Input voltage range: 8~36V (3~8S LiPo) w/TVS protection
  • 2x ESC power pads
  • Current Senor: 220A,  3.3V ADC  (Scale 150 in INAV,  66.7 A/V in ArduPilot)
  • Sense resistor: 90A continuous, 220A peak.



BEC 5V output

  • Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
  • Output 5.15  +/- 0.1V DC
  • Continuous current 2 Amps,  3A Peak



BEC 9V /12V output

  • Designed for Video Transmitter, Camera, Gimbal ect.
  • Continuous current 2 Amps,  3A Peak
  • 12V option with Jumper pad



BEC Vx output

  • Designed for Servos
  • Voltage adjustable, 5V Default, 6V or 7.2V via jumper
  • Continuous current 8 Amps,  10A Peak



BEC 3.3V output

  • Linear Regulator
  • Continuous current: 200mA



Physical

  • Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm

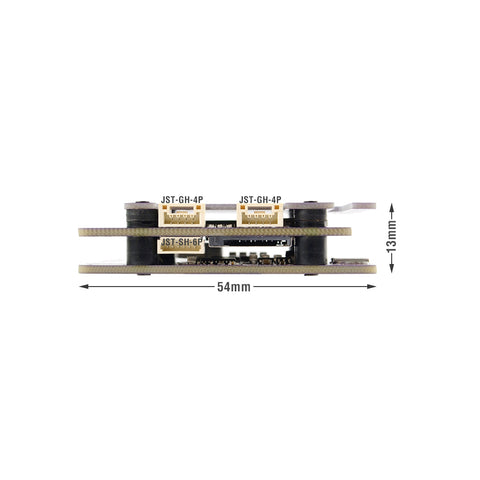

  • Dimensions: 54 x 36 x 13 mm
  • Weight: 30g with USB extender



Including

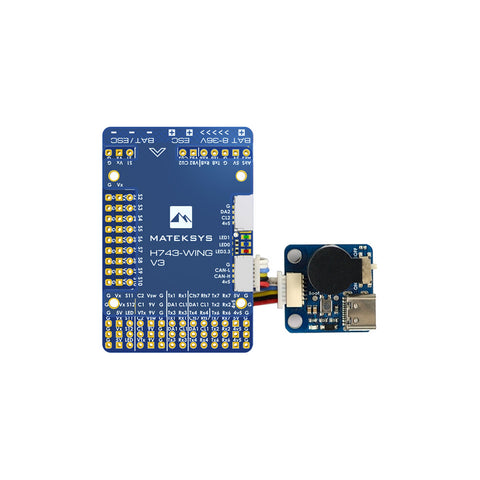

  • 1x H743-WING
  • 1x USB(Type-C)/Beep (Passive buzzer) Extender
  • 1x 20cm JST-SH-6P to JST-SH-6P cable for USB extender.
  • 2x 20cm JST-GH-4P to JST-GH-4P cable for CAN & I2C port
  • 1x Rubycon ZLH 35V 470uF capacitor
  • Dupont 2.54 pins  (Board is shipped unsoldered)
