NewBeeDrone Cricket200 Mini F7 DJI Flight Controller 20x20mm

  • $72.00
  • Save $7.95


Like us? Please hit the Like button below:)


Product Description:

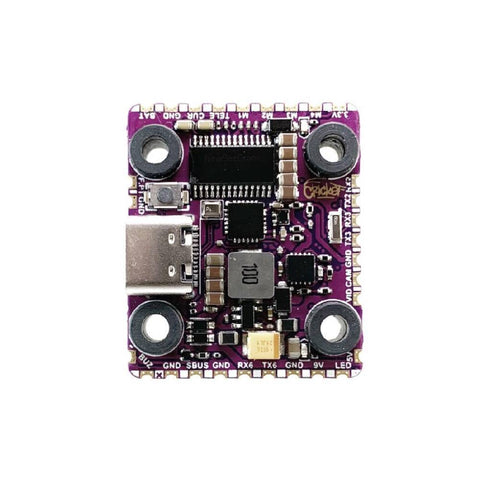

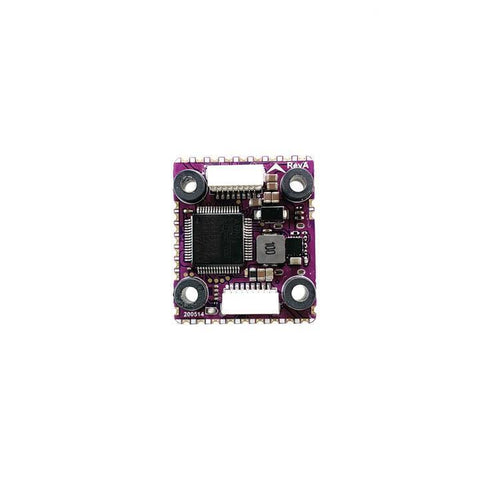

NewBeeDrone Cricket200 F7 DJI Flight Controller Mini


Cricket 200 FC Specification:

  • MPU6000 Gyro
  • STM32F722   216mhz
  • 3-6S direct battery input
  • 5V 1.5A,
  • 3V3 100mA
  • 9V 2A 18W Design for DJI FPV Air Unit
  • 5V Camera Power
  • BetaFlight OSD
  • 31.5x27 CB with 20x20 mounting holes, weight: 5.85g

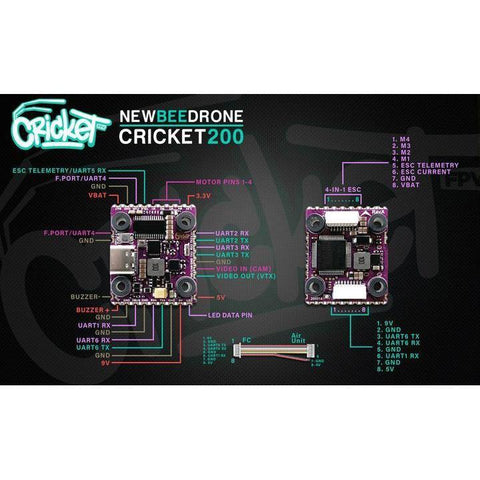

  • 6 UARTS on board.
  • UART1 (Only RX, Air Unit connector)
  • UART2 (Free)
  • UART3 (Free)
  • UART4 (TX and RX connected together for F.Port)
  • UART5 (Only RX, ESC Telemetry)
  • UART6 (MSP/Configuration Port for Air Unit)

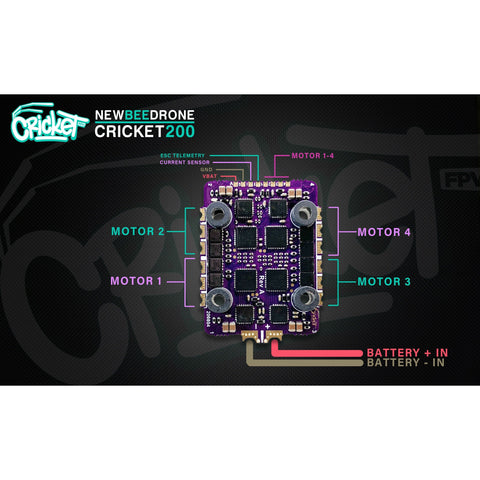

  • Built-in 4 IN 1 ESC socket(including ESC telemetry, External current sensor) JST1.0 8Pin
  • Plug and plug with NBD Infinity200 ESC. Also compatible with most of the ESC on the market.
  • Built-in solder pads for ESC signal output and power
  • Printed layout instructions ON the board - no need for instructions!
  • DJI FPV Air Unit socket (use UART1 and UART6)

Includes:

  • 1x Cricket200 FC F7 flight controller
  • 4x Grommets short 4x Grommets Long
  • 1x Cricket200 FC to DJI Air module cable 70mm
  • 2x silicone wire for Crossfire receiver if needed


Firmware and configuration files: https://github.com/newbeedrone/Cricket200-FC-F7/releases/
